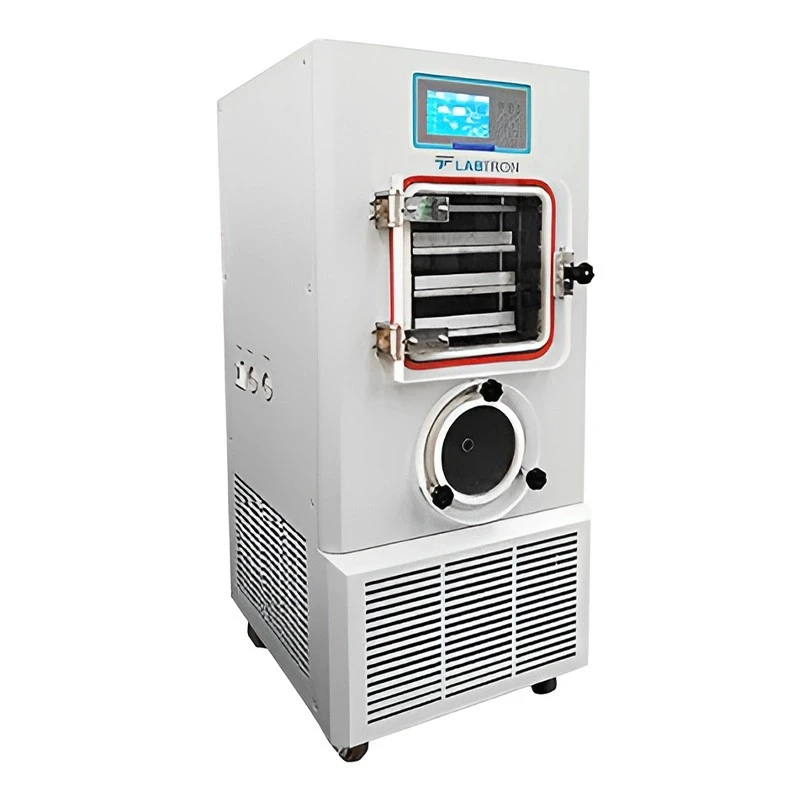

Labtron LLFD-B11 Large Scale Vacuum Freeze Dryer
Specifications
| Brand | Labtron |
|---|---|
| Power Supply | Single-phase / 220V |
| Dimension | 770 x 750 x 1520 mm |
| Noise | ≤ 80 dB |
| Model | LLFD-B11 |
| Temperature Sensor | PT-100 platinum resistance |
| Quantity | 1 set |
| Vacuum gauge | Reborn |
| Weight | About 400 kg |
| Heating Rate | 0.8 kW |
| Refrigerant | CFC free refrigerant |
| Circulation Pump | WILO / original imports / web rotor canned pump from Germany brand / world famous brand |
| Shelf Size | 270 mm x 400 mm |
| Defrosting | Electric defrosting |
| Freeze-drying area | 0.32 m² |
| Layers of shelf | 3 + 1 |
| Temperature scope of shelf | -50°C to +70°C (no-load) |
| Shelf temperature error | ±1°C (in balance) |
| Shelf spacing | 70 mm |
| Size of shelf | 270 mm x 400 mm |
| Min. Temperature of condenser | ≤ -70°C (no-load) |
| Water-capture capability | ≥ 6 Kg |
| Liquid Material | 3L (Thickness - 10 mm) |
| Final Vacuum degree | ≤ 5 Pa |
| Style of cooling | Fan cooling |
| Shelf effective area | 0.32 m² |
| Shelf numbers | 3+1 (Top shelf as temperature compensating plate) |
| Material number plate | 3 pcs |
| Shelf Material | AISI 304 stainless steel / Top and bottom plate thickness 5 mm |
| Condenser Shape | Vertical type / cylindrical / compact structure / better water capture / easy to clean and defrosting |
| Condenser Material | AISI 304 stainless steel |
| Coiling Pipe Material | Copper |
| Condenser Water Capture | ≥ 30 kg |
| Condenser Temperature Decreasing | 20°C to 40°C / within 30 minutes |
| Condenser Min. Temp. | ≤ -75°C |
| Thermal Insulation Material | Polyurethane foams |
| Refrigerator | France original imported TECUMSEH full closure compressor |
| Refrigerator Number | 2 sets |
| Shelf Refrigeration | 1 set (shelf refrigeration at the same time / indirect refrigeration) |
| Condenser Refrigeration | 1 set (shelf refrigeration at the same time / direct refrigeration) |
| Double stage rotary vane pump | World famous brand |
| Chamber Pumping Rate | Atmosphere 10 Pa ≤ 30 minutes (in dry condition) |
| System Maximum Vacuum | ≤ 5 Pa |
| System Leaking Rate | ≤ 10 Pa·l / sec |
| Liquid | Low viscosity silicon oil (25°C / 5ct) National qualified product |
| Liquid Tubing Material | AISI 304 / welding / heat keeping |
| Circulation Pump Quantity | 1 set |
| Heating Control Style | Solid-state relay |
| Stainless Steel Plate Heat Exchanger | Well-known brands |
| Installation Power | 3.0 kW (this is installed power / not running power) |
| Shelf Temperature Range | -50°C to +70°C (no-load) |
| System Final Vacuum Degree | ≤ 5 Pa |
| Control Style | Automatic and manual control |
Key Features
- Designed with freeze drying area 0.32 m2
- Offers vertical type, cylindrical compact structure
- Designed with rectangular type dry chamber, Pre-freezing, drying in
- same chamber without any manual operation
- Offers PLC control with 7 inch LCD touch graphic display, can be operated
- in auto, semi-auto and manual mode
- Roughness of inner wall is Ra ≤ 0.6 μm
- Opening direction clockwise or anticlockwise
- Material used AISI 304 stainless steel and door material ACRYLIC
- Working temperature ranges from -50℃ to +70℃
- Thermal insulation material used is Polyurethane foams
- Equipped with PT-100 platinum resistance temperature sensor
- Designed with refrigeration system, shelf, condenser, vacuum system and liquid circulation system
- Adopts Electric defrosting mode
- Environmental-friendly refrigerant
Product Description
Large Scale Vacuum Freeze Dryer LLFD-B11 is a rectangular type, cylindrical compact structure. It offers manual and auto control mode, sensor calibration, intelligent temperature control, freeze drying termination reminding, and other functions. The temperature ranges from -50°C to +70°C and offers 3+1 layers of shelf with 70 mm shelf spacing and size of each shelf is 270 mm × 400 mm. Material used: AISI 304 stainless steel, top and bottom plate thickness 5 mm. Features CFC-free refrigerant and PT-100 platinum resistance temperature sensor. Designed with refrigeration system, shelf, condenser, vacuum system, and liquid circulation system. The heat is transferred to the inner space of the vacuum chamber and absorbed heat during sublimation efficiently. The product is dried completely and evenly.
Applications
Large Scale Vacuum Freeze Dryer is used in the Bio-Pharma industry to freeze-dry and store drugs, medicinal products, materials, and other biomaterials. It is also used in the food industry to freeze-dry fruits and vegetables, fish and meat, processed and raw food materials to increase their shelf life and maintain quality.
