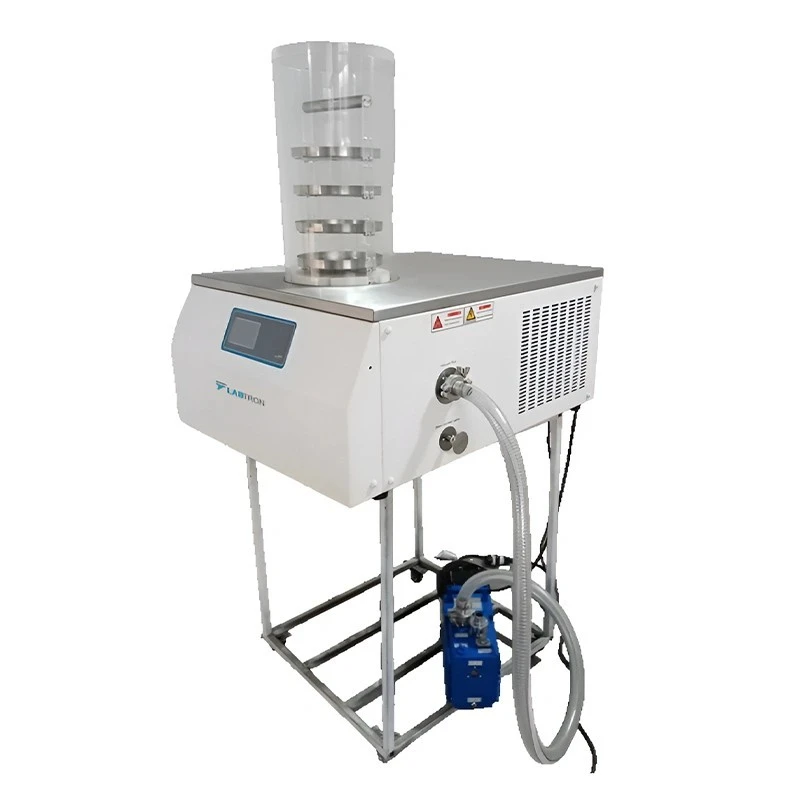

Standard Freeze Dryer EBFD-A12
Specifications
| Power Consumption | 1600W |
|---|---|
| Display | color LCD touchscreen |
| Brand | Generic Brand |
| Power Supply | 220V / 50 Hz / single phase |
| Dimension | 850 x 680 x 830 mm |
| Model | LBFD-A12 |
| Weight | 130 KG |
| Ambient Temperature (ºC) | ≤25°C |
| Communication | USB port |
| Cooling | Air Cooling |
| TRAY | Φ200mm / 4pcs |
| Final Vacuum | Less than 10 Pa |
| Shelf | 4 layers |
| Condenser Temperature | -100°C |
| Freeze Drying Area | 0.12 m² |
| Bulk Capacity | 1.2L / 10m thickness |
| Ice Condenser Capacity | 3 kg / 24h |
| Vacuum Pump Flow Rate | 2 L/S / 7.2 m³/h |
| Vacuum Display Unit | Pa or Mbar |
| Display Parameter | Running Time / Sample and Condenser Temperature / Vacuum Degree / Saved Data |
| Defrosting | Off-Cycle Defrosting |
Key Features
- Easy and readable control panel
- Equipped with a colour LCD touchscreen
- Condenser with efficient and uniform ice capture function
- Safe and clear view of sample status by acrylic drying chamber
- Includes a USB port for easy output of freeze-drying data
- Utilizes CFC-free refrigerant
- Fitted with compressor for low noise
- Equipped with a stainless steel air inlet valve
Product Description
Standard Freeze Dryer LBFD-A12 provides a freeze-drying area of 0.12 m² with an ice condenser capacity of 3kg per 24 hours. It features a small and compact structure for easy operation and space-saving. Incorporates a vacuum pump with high pumping speed. The condenser has a large opening with external coiling tubes and pre-freezing functionality. LCD can display the sample temperature curve, condenser temperature curve, and vacuum curve for monitoring. Its condenser, trays, drying shelf, and pre-freezing shelf are made up of 304 stainless steel.
Applications
Standard Freeze Dryer is suitable for freeze-drying. It is widely used in medicine, pharmacy, biology research, chemical industry, food industry, etc.
Standard Accessories
Freeze Dryer Main Unit, Sealing Ring, Acrylic Drum, Drying Shelf, 4 trays, Freezing Shelf, Vacuum Connection Tube, Clamps, Vacuum Pump, Vacuum Oil
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Standard Freeze Dryer LBFD-A12 provides a freeze-drying area of 0.12 m².
This model is equipped with a color LCD touchscreen for easy operation and monitoring.
The power supply for this unit is 220V / 50 Hz / single phase, with a power consumption of 1600W.
The final vacuum level is less than 10 Pa.
The condenser temperature can reach as low as -100°C.
It includes 4 trays, each with a diameter of Φ200mm.
This unit weighs 130 KG.
The ambient temperature for operation should be ≤25°C.
It is suitable for freeze-drying applications in medicine, pharmacy, biology research, chemical industry, and food industry.
Yes, it comes with a vacuum pump that has a flow rate of 2 L/S or 7.2 m³/h.
It is equipped with a USB port for easy output of freeze-drying data.
