Labtron LLFD-B10 Large Scale Vacuum Freeze Dryer
Specifications
| Brand | Labtron |
|---|---|
| Dimension | 1200 x 2100 x 1700 mm |
| Noise | ≤ 80 dB |
| Model | LLFD-B10 |
| Temperature Sensor | PT-100 platinum resistance |
| Quantity | 1 set |
| Vacuum gauge | Reborn |
| Weight | 1200 kg |
| Heating Rate | 2 kW |
| Refrigerant | CFC free refrigerant |
| Circulation Pump | Web rotor canned pump / from internally famous brand |
| Shelf Size | 500 mm × 900 mm |
| Defrosting | Water soaking |
| Freeze-drying area | 2.25 m² |
| Layers of shelf | 5 + 1 |
| Temperature scope of shelf | -50°C to +70°C (no-load) |
| Shelf temperature error | ±1°C (in balance) |
| Shelf spacing | 80 mm |
| Size of shelf | 500 mm × 900 mm |
| Min. Temperature of condenser | ≤ -70°C (no-load) |
| Water-capture capability | 30 kg |
| Liquid Material | 22 (Thickness - 10 mm) |
| Final Vacuum degree | ≤ 5 Pa |
| Style of cooling | Fan cooling |
| Shelf effective area | 2.25 m² |
| Shelf numbers | 5+1 (Top shelf as temperature compensating plate) |
| Material number plate | 10 pcs |
| Shelf Material | AISI 304 stainless steel / Top and bottom plate thickness 5 mm |
| Condenser Shape | Vertical type / cylindrical. Compact structure / better water capture / easy to clean and defrosting |
| Condenser Material | AISI 304 stainless steel |
| Coiling Pipe Material | AISI 304 stainless steel |
| Condenser Water Capture | ≥ 30 kg |
| Condenser Temperature Decreasing | 20°C to 40°C / within 30 minutes |
| Condenser Min. Temp. | ≤ -70°C |
| Thermal Insulation Material | Polyurethane foams |
| Refrigerator | France Imported full closure compressor |
| Refrigerator Number | 2 sets |
| Shelf Refrigeration | 1 set (shelf refrigeration at same time / indirect refrigeration) |
| Condenser Refrigeration | 1 set (shelf refrigeration at same time / direct refrigeration) |
| Double stage rotary vane pump | World famous brand |
| Chamber Pumping Rate | Atmosphere 10 Pa ≤ 30 minutes (in dry condition) |
| System Maximum Vacuum | ≤ 5Pa |
| System Leaking Rate | ≤ 10 Pa·l / sec |
| Liquid | Low viscosity silicon oil (25°C / 5ct) National qualified product |
| Liquid Tubing Material | AISI 304 / welding / heat keeping |
| Circulation Pump Quantity | 1 set |
| Heating Control Style | Solid-state relay |
| Stainless Steel Plate Heat Exchanger | Well-known brands |
| Installation Power | 13.5 kW |
Key Features
- Designed with freeze drying area 2.25 m2
- It has automatic and manual control
- Offers vertical type, cylindrical compact structure
- Roughness of inner wall is Ra ≤ 0.6 μm
- Opening direction clockwise or anticlockwise
- Material used AISI 304 stainless steel and door material ACRYLIC
- Working temperature ranges from -50℃ to +70℃
- Thermal insulation material used is Polyurethane foams
- Equipped with PT-100 platinum resistance temperature sensor
- Designed with refrigeration system, shelf, condenser, vacuum system and liquid circulation system
- Adopts defrosting water soaking mode
Product Description

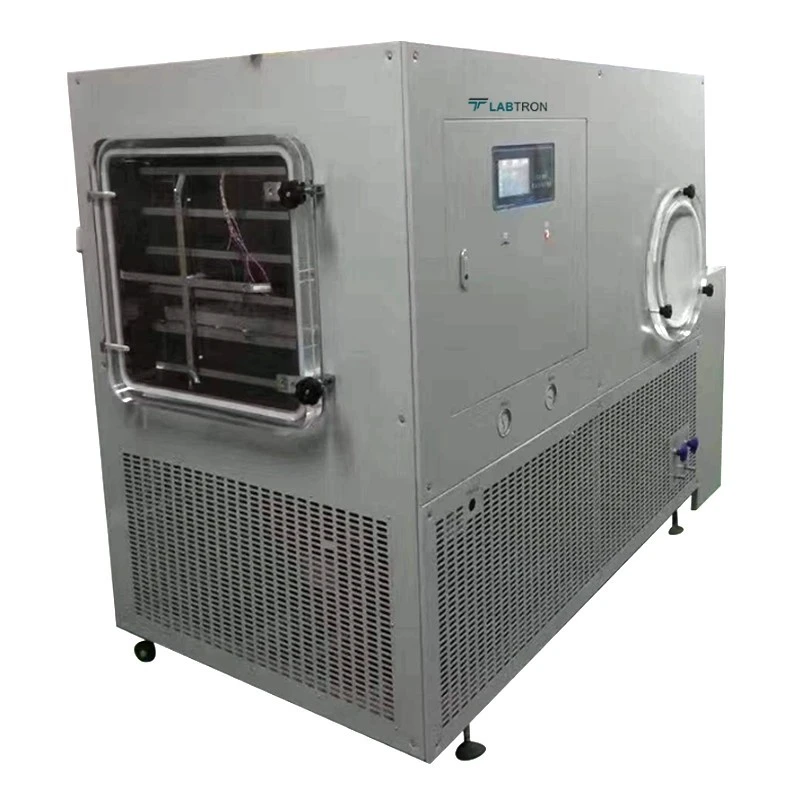

Large Scale Vacuum Freeze Dryer LLFD-B10 is a vertical type, cylindrical compact structure. It offers manual and auto control mode, sensor calibration, intelligent temperature control, freeze drying termination reminding, and other functions. The temperature ranges from -50°C to +70°C and offers 5+1 layers of shelf. Material used: AISI 304 stainless steel, top and bottom plate thickness 5 mm. Features CFC-free refrigerant and PT-100 platinum resistance temperature sensor. Designed with refrigeration system, shelf, condenser, vacuum system, and liquid circulation system. The heat is transferred to the inner space of the vacuum chamber and absorbed heat during sublimation efficiently. The product is dried completely and evenly.
Applications
Large Scale Vacuum Freeze Dryer is used in the Bio-Pharma industry to freeze-dry and store drugs, medicinal products, materials, and other biomaterials. It is also used in the food industry to freeze-dry fruits and vegetables, fish and meat, processed and raw food materials to increase their shelf life and maintain quality.
