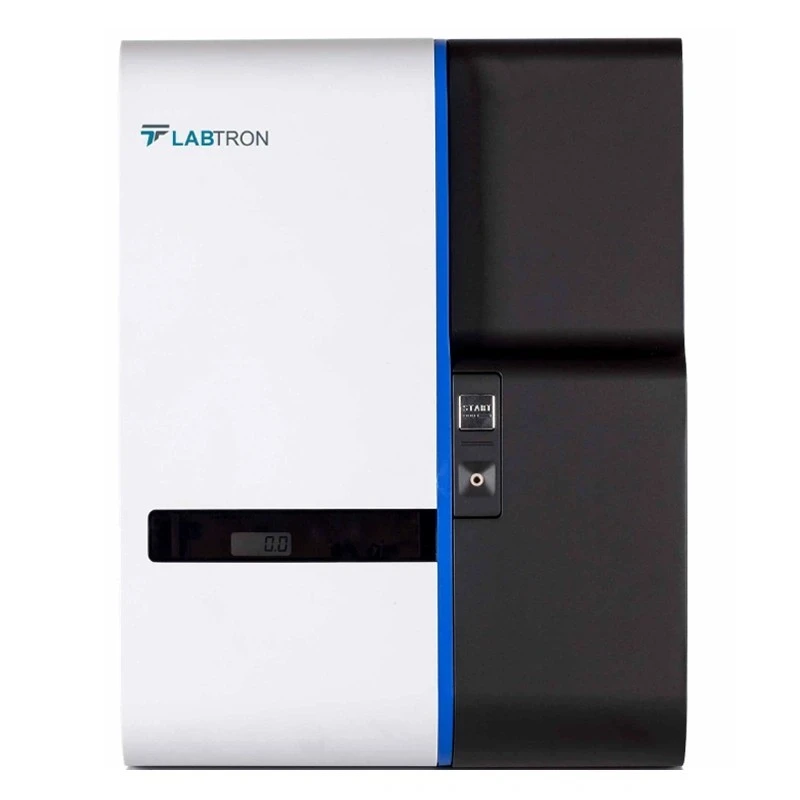

Ion Chromatograph System EICS-A21
Specifications
| Brand | Generic Brand |
|---|---|
| Power Supply | 150W |
| Net Weight | 26 kg |
| Model | LICS-A21 |
| Gross Weight | 32 Kg |
| Maximum Pressure | 35 MPa (PEEK) |
| Flow range | 0.001 to 9.999 ml/min |
| External Dimension | 350 × 470 × 510 mm |
| Pressure Display Accuracy | ≤ 0.1 MPa |
| Flow Stability | (0.2 to 0.5) ml/ min ≤ 3 % / (0.5 to 1.0) ml/ min ≤ 2 % / Greater than 1.0 ml/ min 2 % |
| Pressure Pulse | ≤ 0.5% |
| Detection Mode (Conductivity Detector) | Bipolar conductivity detection |
| Cell Volume (Conductivity Detector) | ≤ 0.8 μL |
| Detection Range (Conductivity Detector) | 0 to 45000 μS/cm |
| Detection Resolution (Conductivity Detector) | ≤ 0.0020 nS/cm |
| Output Voltage (Conductivity Detector) | -6000 to +6000 mV (adjustable) |
| Baseline Noise (Conductivity Detector) | ≤ 0.05 % F.S. |
| Baseline Drift (Conductivity Detector) | ≤ 3 % FS/ 30 min |
| Operating Temperature Range (Conductivity Detector) | Room temperature +5 to 60°C (41 to 140°F) |
| Controlling Temperature Accuracy (Conductivity Detector) | ± 0.01°C |
| Maximum Pressure (Conductivity Detector) | 10 MPa |
| Linear Range (Conductivity Detector) | ≥ 103 |
| Instruments Linearity (Conductivity Detector) | ≥ 0.999 |
| Plastic Flow Path (Flow System) | Made of PEEK Materials |
| Six Way Valve (Flow System) | PEEK Material / 5000 psi pressure / independent automatic collection and flow function |
| Ion Chromatographic Pump Type | High pressure and low pulse double plunger tandem advection pump |
Key Features
- Large column capacity to detect various component ions
- Maintains excellent system stability
- Temperature controlled bipolar conductivity detector
- Automatic, self-regenerating electrolytic microfilm suppressor
- Intelligent workstation controls
- RS232, USB Interface
- User-friendly operations
Product Description
Ion chromatograph system LICS-A21 is a modular design ion chromatograph with high column efficiency and large column capacity and stable performance. With a large conductivity detection range, it delivers more accurate results. The bipolar conductivity detector improves the detection performance and stability of the instrument. Built-in circulating stereo constant temperature and other technologies ensure accurate and reliable experimental data.
Applications:
Used to detect small molecules (in the form of anion, cation) in food, chemical, mining, metallurgy, environment, and other fields.
Standard Accessories:
- 1 Ion Chromatography host
- 1 High pressure advection pump
- 1 Conductivity detector
- 1 Anion column
- 1 Anion guard column
- 1 Suppressor
- 1 Chromatography workstation
- 1 Column thermostat system
- 1 Spare parts kits
- 1 Vacuum degassing pump
- 1 Sand core filtration devices
- 20 Pretreatment columns
- 200 0.22 µm syringe filters.
Optional Accessories:
- 1 Auto sampler (20 samples)
- 1 Auto sampler (54 samples)
- 1 Auto sampler (108 samples)
- 1 Anion column
- 1 Guard column
- 1 Anion suppressor
- 1 Spare parts kits.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum pressure rating for this model is 35 MPa (PEEK).
The flow range for this unit is from 0.001 to 9.999 ml/min.
It utilizes bipolar conductivity detection for improved performance.
The net weight of this model is 26 kg, while the gross weight is 32 kg.
The external dimensions of this unit are 350 × 470 × 510 mm.
The operating temperature range for the conductivity detector is from room temperature +5 to 60°C (41 to 140°F).
The pressure display accuracy is ≤ 0.1 MPa.
Included accessories are an ion chromatography host, high pressure advection pump, conductivity detector, anion column, anion guard column, suppressor, chromatography workstation, column thermostat system, spare parts kits, vacuum degassing pump, sand core filtration devices, and 20 pretreatment columns.
The baseline noise for the conductivity detector is ≤ 0.05 % F.S.
The detection range of the conductivity detector is from 0 to 45000 μS/cm.
It features a high pressure and low pulse double plunger tandem advection pump.
