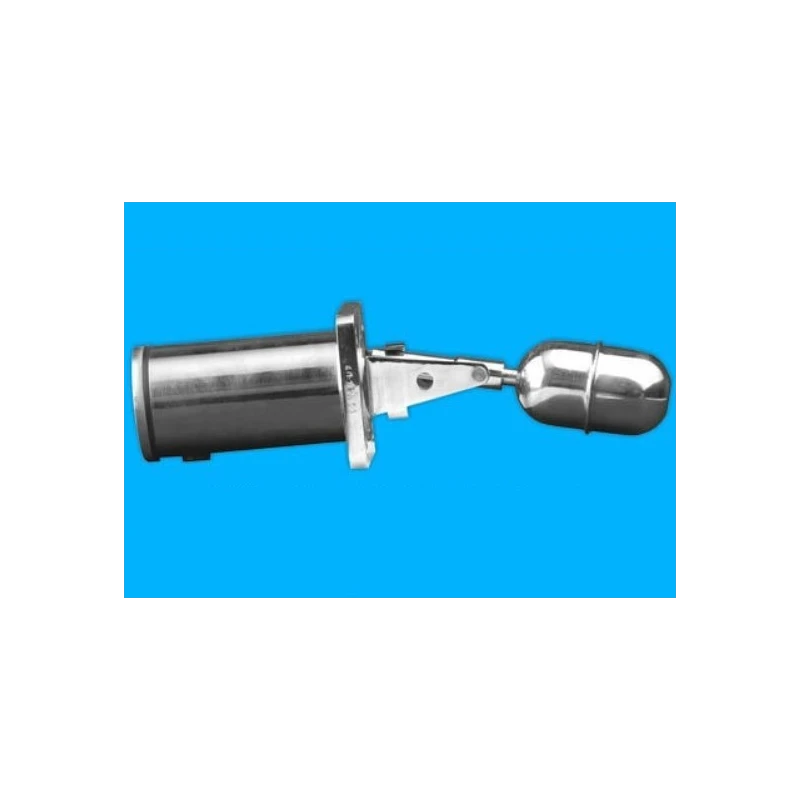

Magnetic Level Switch MLS-16-F82
Specifications
| Brand | Mahalaxmi Instruments |
|---|---|
| Model | MLS-04-F82 |
| Enclosure | SS 304 having neoprene gromet for cable entry. |
| Process connection | 120 mm round flange with 4 bolt holes of 16 mm dia on 92 mm PCD. |
| Float | 50 mm Dia x 85 mm long - SS316 |
| Maximum Working Pressure | 10 kg/cm2 |
| Maximum Working Temperature | 250C |
| Switch Rating | 5 AMPS at 230 VAC |
| Maximum Switching Voltage (V) | 230 VAC |
| Type of Switch | 1 No| Change over Micro Switch |
| Specific Gravity | Down to 0.75 |
| Differential Between Make Break | 10 mm| +/-2 mm |
Key Features
- As our switches work on magnetic repulsion principle, they are glandless and leak proof.
- No Power Consumption
- Internal assembly wirings are teflon insulated.
Product Description
MLS-16-F82 Magnetic Level SwitchMLS-04-F82 or MLS-16-F 82 Magnetic Level Switch work on the principle of magnetic repulsion and therefore they are gland less & leak proof instruments. A permanent magnet fitted in the tail piece of the float repels another magnet inside the switch housing which in turn operates an SPDT micro switch. Micro switch contacts can be utilized for initiating audio-visual signals or pump control.
- Internal switch assembly bracket is of cast aluminium.
- Practically no maintenance is required except periodic cleaning.
