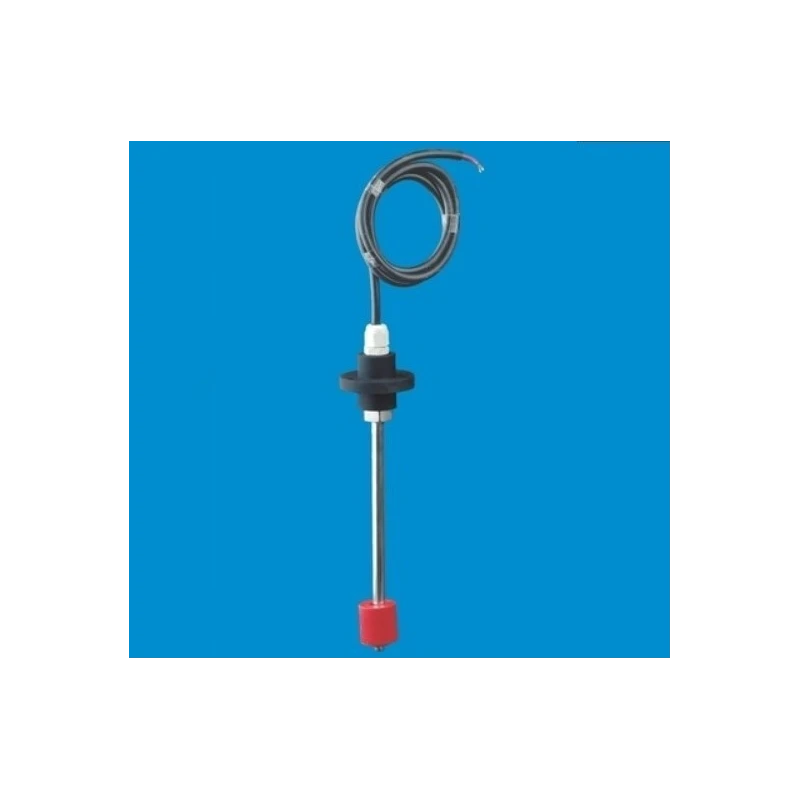

SPST Level Switches VMT-04-F40-GN-PG7
Specifications
| Brand | Mahalaxmi Instruments |
|---|---|
| MOC | Flange in Glass Filled Nylon| Floot in PU & Pipe in SS 304 |
| Model | VMT-04-F40-GN-PG7 |
| Wire Length | 1 Meter standard |
| Media Type | Liquid |
| Mounting Options | Top Mount |
| Switch Type | SPST |
| Cable entry | PG7 |
| Process connection | 50mm round range with 4 nos bolt holes of 5mm dia on 40mm PCD. |
| Float | 25mm Dia X 25mm long |
| Maximum Working Pressure | 2 kg/cm2 |
| Maximum Working Temperature | 70C |
| Switch Rating | 60 VA |
| Maximum Switching Voltage (V) | 230 VAC |
| Total Stem Length | As per your requirement (maximum up to 1 metre |
| Current Rating (Amps) | 0.5 Amps rated 230 VAC |
| Level Measurement Type | Point Level |
| Number of Switch Positions | 1 |
| Float Diameter | 25mm dia x 25 mm length |
| Process Temperature Max | 70C |
Key Features
- Bulk Quantities Available
Product Description
VMT-04-F40-GN-PG7 Level SwitchesWe offer flawless quality Top Mounted Magnetic Level Switch for our customers. These are used for controlling one or multi Levels by using reed Switch or micro Switch. It has a magnetized float moving alongside the protection tube which tracks the level and activates the reed relays inside the tube.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum working temperature for this model is 70°C.
It is designed for use with liquid media.
This model features a Single Pole Single Throw (SPST) switch type.
The maximum switching voltage for the VMT-04-F40-GN-PG7 is 230 VAC.
The float has a diameter of 25mm and a length of 25mm.
The maximum working pressure is 2 kg/cm².
The standard wire length is 1 meter.
This unit can be top mounted.
The current rating is 0.5 Amps at 230 VAC.
The process connection has a 50mm round range with 4 bolt holes of 5mm diameter on a 40mm PCD.
The total stem length can be customized up to a maximum of 1 meter, as per your requirement.
The switch rating for this model is 60 VA.
