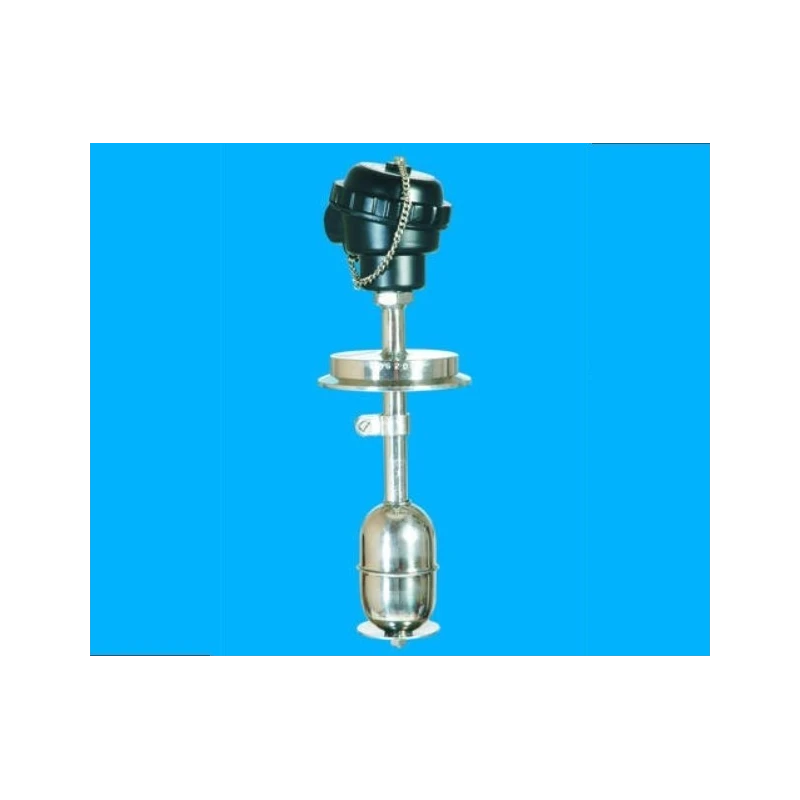

Magnetic Level Switch VMT-16-3 TC-AH
Specifications
| Brand | Mahalaxmi Instruments |
|---|---|
| MOC | SS 316 |
| Model | VMT-16-3 TC-AH |
| Enclosure | Cast Aluminium Weather proof - IP66 |
| Float | 50mm dia x 85mm long SS316L or As per TC size |
| Maximum Working Pressure | 10 kg/cm2 |
| Maximum Working Temperature | 125 Degree C (Higher Temperature of 175 Degree C optional ) |
| Switch Rating | 100 VA |
| Maximum Switching Voltage (V) | 300 VAC / DC |
| Type of Switch | 2 Nos. SPST Reed-Switches. (Max.4 Levels) |
| Total Stem Length | As per Your requirement |
| Contact Configuration | Low Level - makes / breaks on fall of level|high Level - makes / breaks on rise of level. |
Key Features
- Bulk Quantities Available
Product Description
We offer flawless quality Top Mounted Magnetic Level Switch for our customers. These are used for controlling one or multi Levels by using reed Switch or micro Switch. It has a magnetized float moving alongside the protection tube which tracks the level and activates the reed relays inside the tube.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum working pressure for this model is 10 kg/cm².
The switch is made of SS 316 for the body and has a float made of SS316L, or it can be customized as per the tank size.
The maximum working temperature is 125 degrees Celsius, with an optional higher temperature rating of 175 degrees Celsius.
This model can control up to four levels using two SPST reed switches.
The enclosure is rated IP66, which means it is weatherproof and suitable for outdoor use.
The switch rating for this model is 100 VA.
It utilizes two SPST reed switches to operate, allowing for makes and breaks on the rise and fall of levels.
The float has a diameter of 50mm and a length of 85mm.
The maximum switching voltage for the VMT-16-3 TC-AH is 300 VAC/DC.
The total stem length can be customized according to your requirements.
The contact configuration allows for low level makes/breaks on the fall of level and high level makes/breaks on the rise of level.
This model is designed for industrial level control applications, where monitoring of liquid levels is required.
