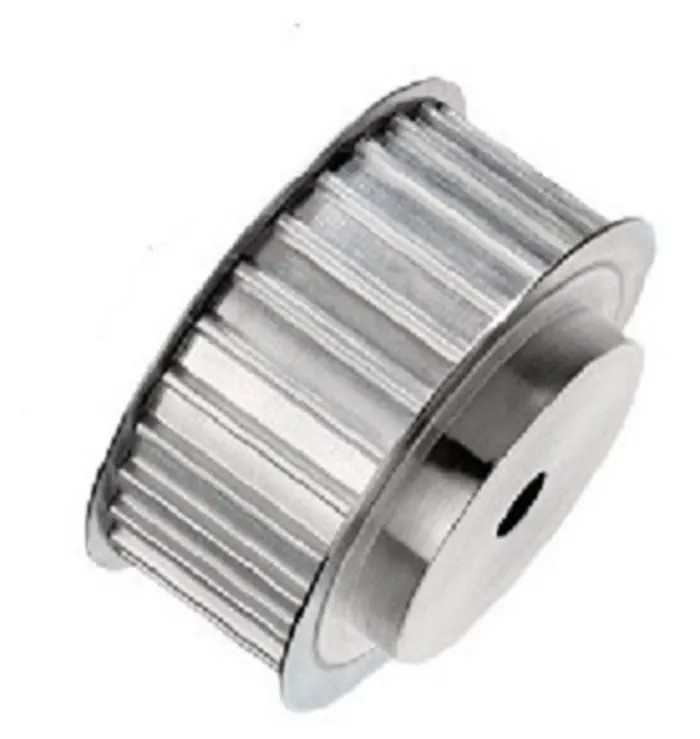

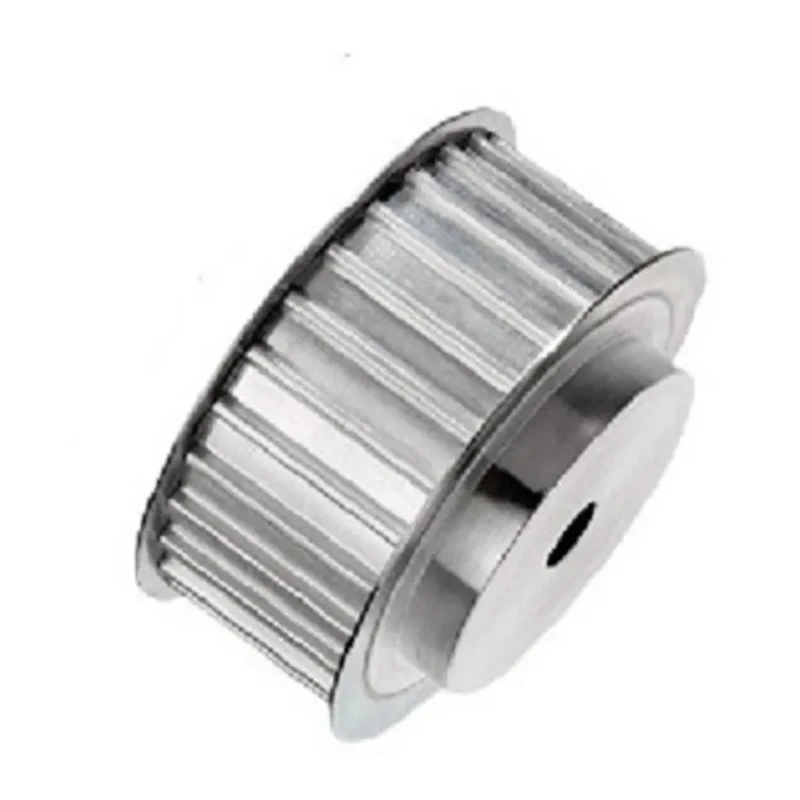

OPTIBELT Timing Belt Pulley Aluminium 32 mm Belt Width 10 mm Pitch, 22 Teeth 22-247AT10

OPTIBELT 22-247AT10 is a timing belt pulley fabricated from high-grade aluminium, tailored for HTD profile timing belts with a 10 mm pitch. This pulley features 22 evenly spaced teeth and accepts belts up to 32 mm in width, providing reliable engagement and power transfer in mechanical transmission systems.

The pulley includes a flanged design enhancing belt retention and reducing slippage during operation. Its pitch circle diameter is precisely 70.03 mm, with an outside diameter of 68.15 mm, and the finished bore diameter is 28 mm designed as a pilot bore for secure mounting on shafts. These specifications ensure compatibility with machines requiring precision timing and consistent mechanical performance.

Manufactured to withstand industrial environments, this aluminium pulley combines strength with lightweight benefits, making it suitable for applications in industrial machinery, manufacturing plants, automation systems, and various power transmission setups where timing belts are employed.

It is important for maintenance engineers and machine designers to select this pulley when looking for a component that guarantees efficiency and durability. Its design meets requirements for mechanical power transmission ensuring synchronous belt operation with minimal backlash.

Constructed from high strength aluminium for durability and lightweight performance. Flanged design ensures secure belt positioning during operation. Pitch of 10 mm with a pitch circle diameter of 70.03 mm for precise power transmission.

Finished bore diameter of 28 mm with pilot bore type for accurate mounting. Outside diameter measures 68.15 mm, suitable for various mechanical applications. Compatible with HTD type timing belts requiring 32 mm belt width.

Ideal for mechanical power transmission in industrial and manufacturing settings. New product condition ensuring reliability and longevity in operation.

Choose the OPTIBELT 22-247AT10 pulley to enhance your system’s reliability and efficiency. Explore more Timing Belt Pulleys and power transmission components on EnvMart to meet your mechanical engineering needs.
