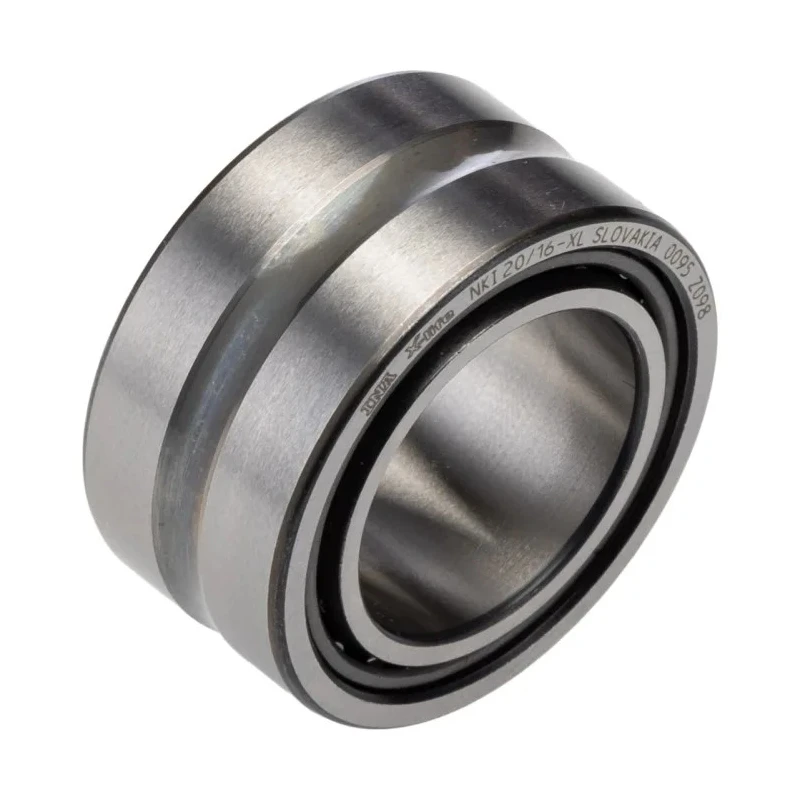

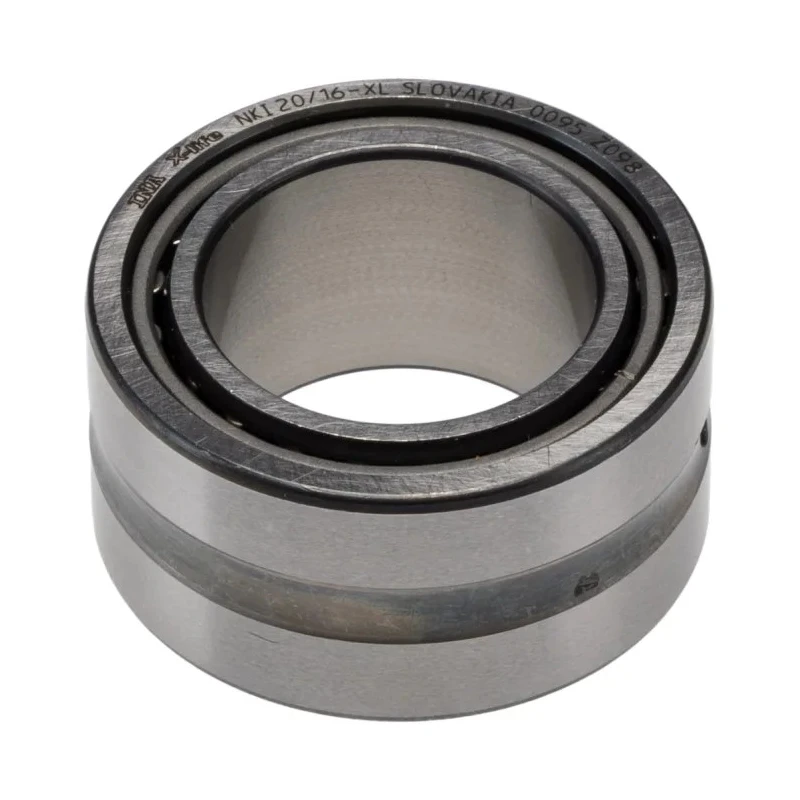

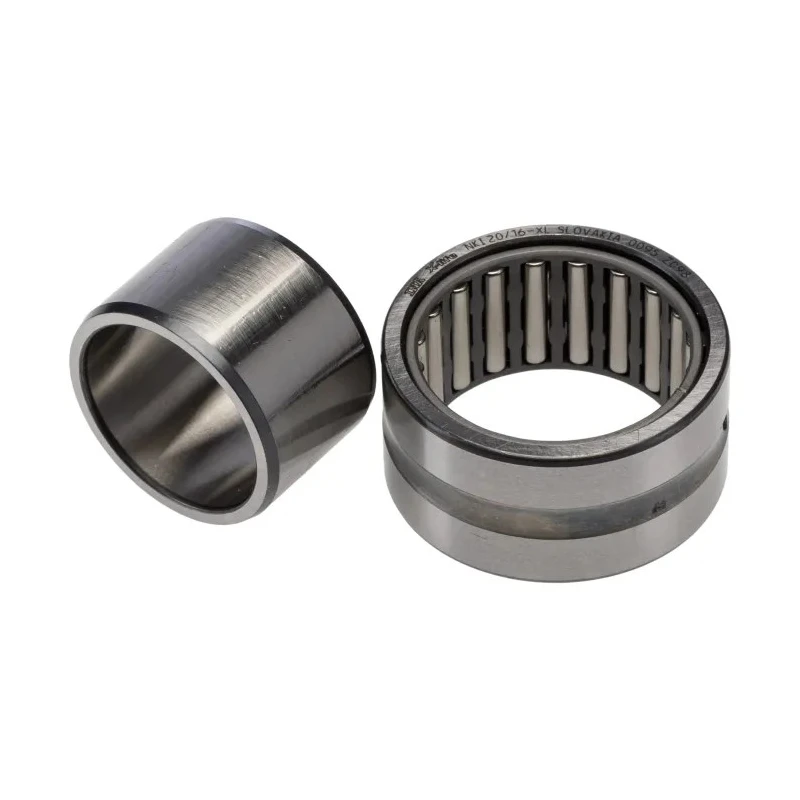

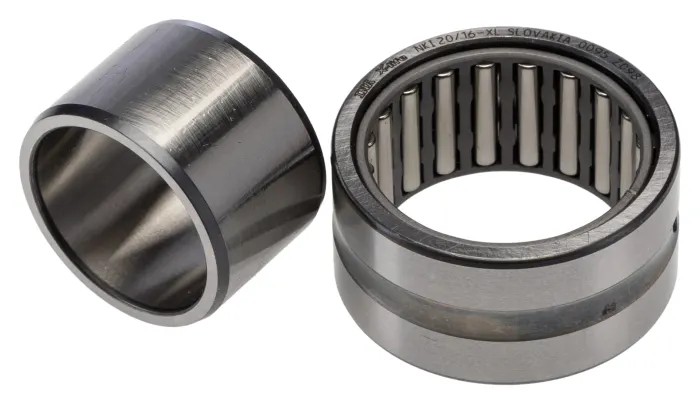

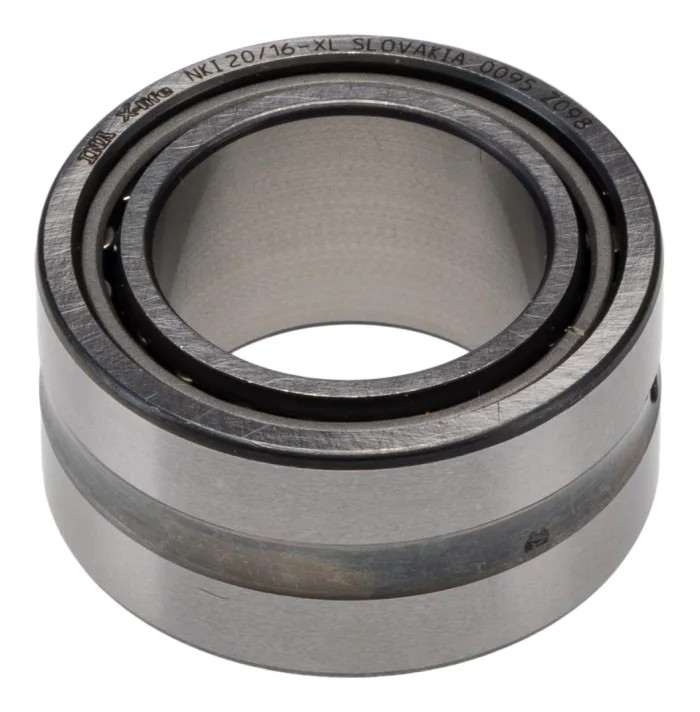

INA Needle Roller Bearing NKI20/16-XL 20 mm ID, 32 mm OD, 16 mm Race Width, Steel Cage, Open End NKI20/16-XL

INA NKI20/16-XL Needle Roller Bearing offers a 20 mm inside diameter, 32 mm outside diameter, and 16 mm race width, featuring a parallel bore and a steel cage with an open end construction. It is engineered for high to very high radial force support in industrial mechanical machinery and equipment.

This light series needle roller bearing supports a static load rating of 22.3 kN and a dynamic load rating of 16.9 kN, with a limiting speed of 18,500 rpm. Designed specifically to enable axial displacement of the shaft relative to the housing, it functions effectively as a non-locating bearing, thus allowing for operational flexibility.

The bearing is suitable for applications where the load capacity or accuracy of drawn cup needle roller bearings is inadequate but high load capacity of cylindrical roller bearings is unnecessary. Its needle roller design permits high speeds through line contact rollers, and it compensates for shaft and housing misalignments through alignment capabilities.

The compact design requires only a minimal radial envelope, especially when mounted without an inner ring. This combination results in economically viable and cost-effective bearing arrangements that suit a wide range of industrial uses.

High radial load carrying capacity with static and dynamic load ratings. Steel cage material ensures durability and reliability. Open end type facilitates lubrication and cooling. Suitable for non-locating bearing applications allowing axial shaft movement.

Light series bearing for high-speed performance. Compensation for misalignment and vibration damping. Compact size for space-constrained bearing assemblies. Ideally used in industrial, manufacturing, and mechanical equipment.

This bearing is ideal for industrial mechanical machinery, manufacturing equipment, HVAC systems, and precision machinery that require reliable needle roller bearings capable of handling high radial loads at high speeds with an economical design approach.

Explore related Needle Roller Bearings and other bearing types within the Bearings category at EnvMart for comprehensive industrial solutions.
