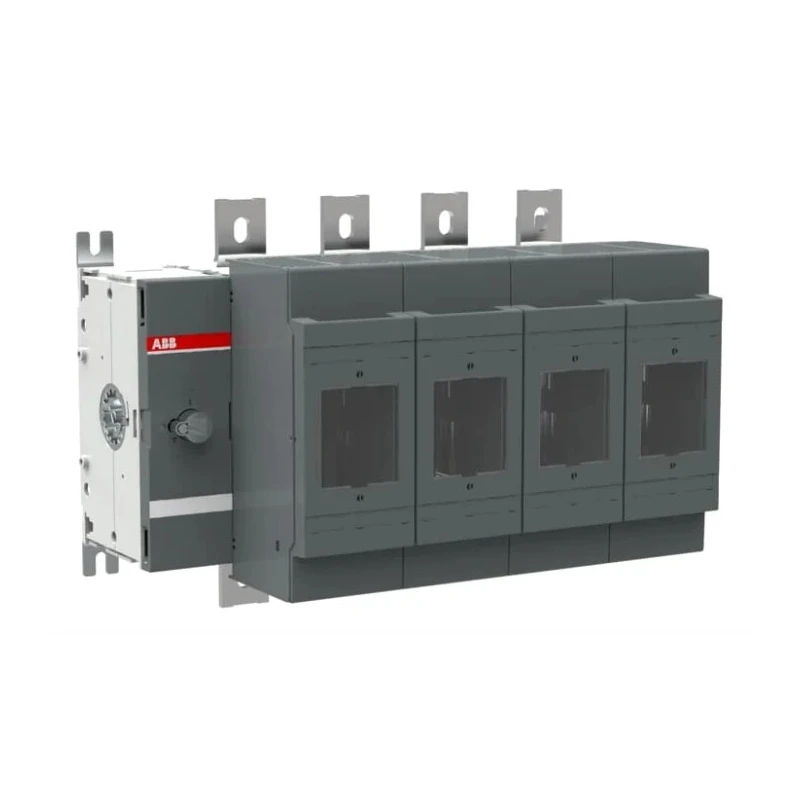

ABB Fuse Switch Disconnector 4-Pole Enclosed 630 A 690 V Switching Power 630 kW Series OS 1SCA022837R7020

ABB 1SCA022837R7020 Fuse Switch Disconnector is a high-quality enclosed 4-pole fuse switch device designed for industrial and electrical automation applications. Rated for 630 A fuse current and switching voltage of 690 V, it offers exceptional switching power of 630 kW within the ABB OS series.

This product operates with a British Standard fuse system in a base mounted configuration, providing secure and safe switching operations. Lug type terminals measuring 39 mm in width ensure reliable cable connections. The fuse size is mechanically compatible with sizes C1 to C2, supporting standard fuse cartridges in applications demanding robust overload protection.

The switch fuse disconnector includes a fourth pole positioned on the left side with a switched solid link, enabling versatile circuit arrangements. The handle and shaft are not included, allowing custom mounting with compatible accessories. Designed for pollution degree 3 environments, this device is suited for industrial settings requiring dependable isolation and fuse protection.

This ABB model does not feature auxiliary contacts or conform to additional standards, focusing on basic yet critical fuse disconnection functionality. Manufactured in Finland, the fuse switch disconnector meets stringent quality and manufacturing benchmarks.

The product features 4 poles for multi-circuit disconnection capability. Rated fuse current is 630 A, supporting heavy electrical loads. Switching voltage capacity is 690 V, suitable for industrial power systems. Switching power rating of 630 kW ensures reliable operation under load.

Mechanical fuse sizes C1-C2 provide compatibility with standard fuse cartridges. The device is base mounted with lug terminals of 39 mm width. Pollution degree 3 rating supports operation in typical industrial environments.

The fourth pole is switched using a solid link and located at the left side. No auxiliary contacts are integrated in this model design. The product is manufactured in Finland, ensuring quality control.

This fuse switch disconnector is ideal for applications in electrical power distribution, industrial automation, and equipment protection where high current and voltage ratings are necessary. It provides a robust and practical solution for fuse switching with reliable isolation and operational safety.
