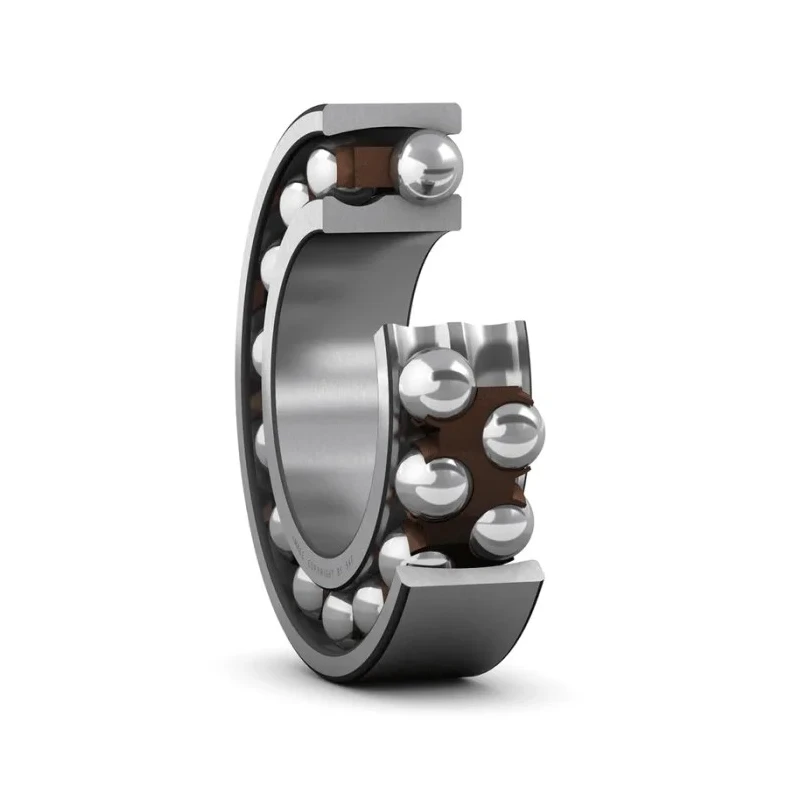

SKF Self-Aligning 2 Row Ball Bearing 45 mm ID 100 mm OD Non-Metallic Cage Steel Balls Open End 2309 EKTN9/C3

SKF 2309 EKTN9/C3 is a self-aligning ball bearing featuring two rows of steel balls with a bore diameter of 45 mm and an outside diameter of 100 mm. The bearing incorporates a non-metallic cage and an open end type, enhancing its durability and serviceability.

This bearing design includes a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring, which provide the ability to accommodate angular misalignments caused by shaft deflection or mounting errors.

The tapered bore type allows for secure mounting and high rotational accuracy. The bearing can operate at limiting speeds up to 4500 rpm and offers a static load rating of 19.3 kN and a dynamic load rating of 63.7 kN, making it suitable for demanding mechanical and industrial environments.

Its robust steel ball material and non-metallic cage ensure long service life while maintaining precision. The open end design facilitates easier maintenance, inspection, and lubrication, improving operational efficiency.

Applications include use in industrial machinery, construction equipment, agricultural devices, and manufacturing plants where self-aligning capabilities are crucial to accommodate shaft misalignment and reduce wear.

Features non-metallic cage and steel balls ensuring reliable operation. Open end structural design facilitates maintenance and lubrication. Two rows of balls accommodate angular misalignments efficiently. High static and dynamic load ratings support heavy-duty applications.

Tapered bore enables effective fitting and shaft alignment. Designed for rotational speeds up to 4500 rpm enhancing performance.

For a broad range of industrial uses, the SKF 2309 EKTN9/C3 offers a dependable solution that ensures consistent performance in rotary bearing applications. Explore more self-aligning Ball Bearings and related components on EnvMart for your specific requirements.
