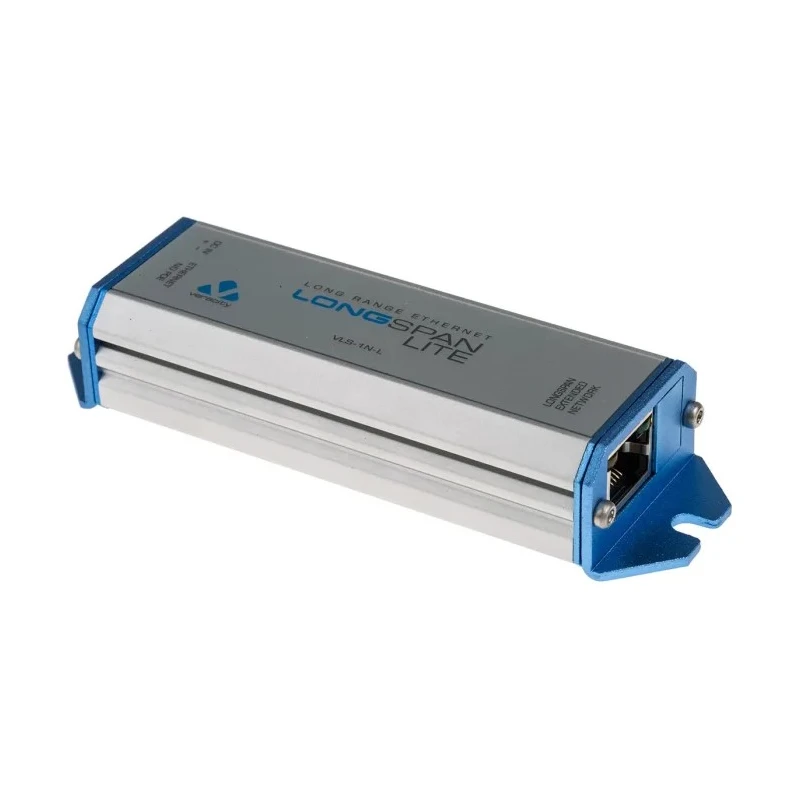

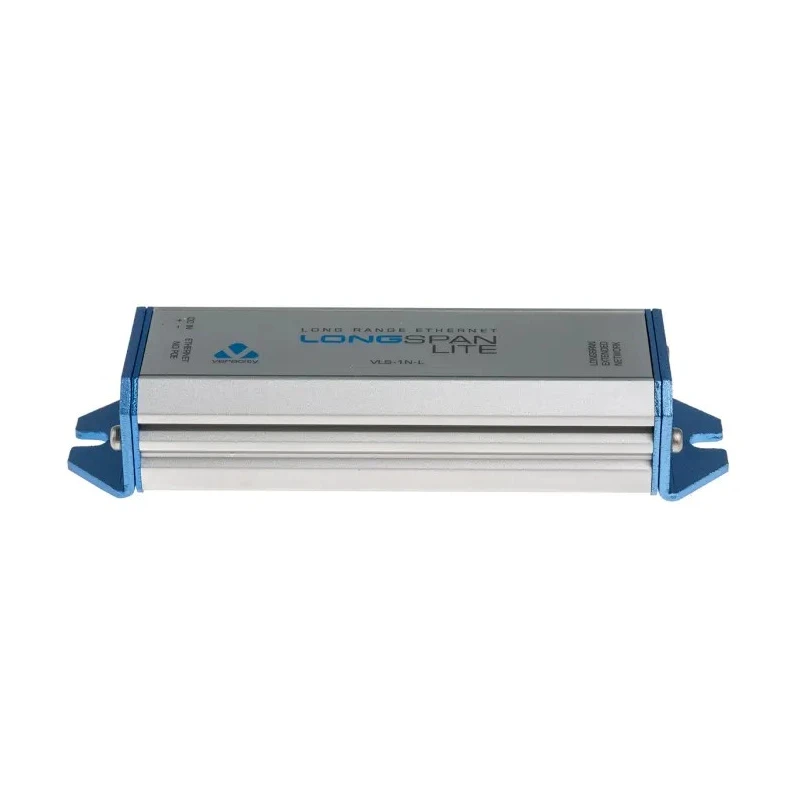

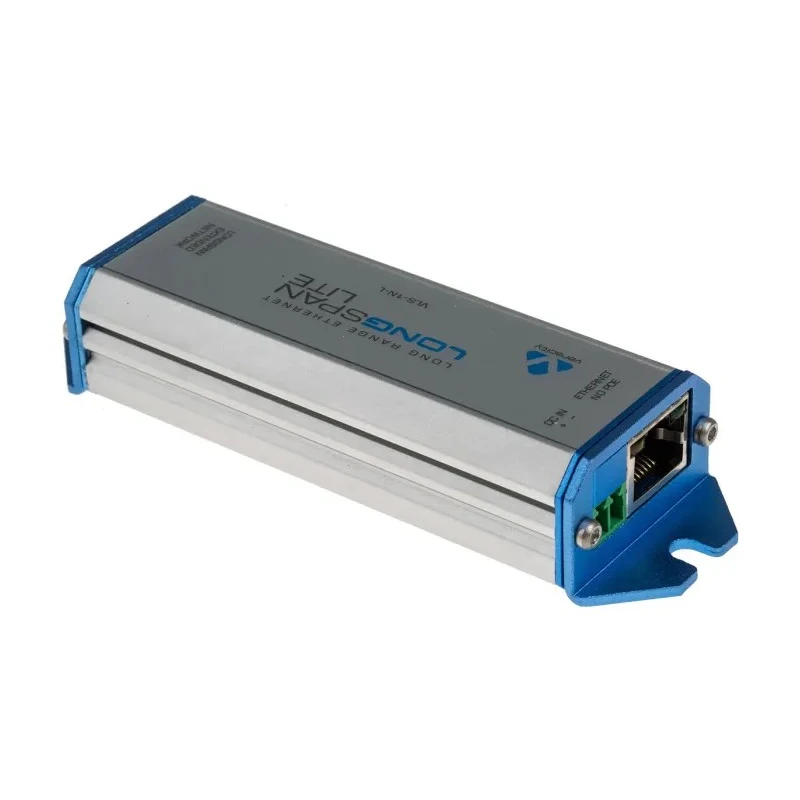

Veracity Network Range Extender CCTV Transmission & Receiving Transreceiver 12, 24V VLS-1N-L

Veracity VLS-1N-L Network Range Extender is a CCTV transmission and receiving transreceiver engineered to ensure dependable connection over extreme cable lengths for IP cameras and remote network devices. It supports supply voltages of 12 and 24 volts and delivers robust performance across harsh environmental conditions.

This product utilizes LONGSPAN LITE technology for point-to-point Ethernet transmission over standard Cat 5e or Cat 6 cable, allowing network extension up to 800 metres with unrestricted 100Base-T connectivity. The device supports Power over Ethernet (PoE), with the PoE version delivering full PoE Plus power at 600 metres. The VLS-1N-L is a non-PoE single converter variant simplifying installation with automatic self-configuration and integrated smart power and diagnostic indicators.

Its compact form factor with dimensions of 120mm height, 36mm width, and 23mm depth facilitates easy deployment in various setups. Certified to CE, BS EN 50121-4, RoHS, and FCC standards, this ruggedized extender ensures reliable network performance even in extreme temperature ranges.

Applications include extending Ethernet for CCTV camera networks and other remote IP network devices in industrial, commercial, and security surveillance environments. Its maintenance-free design helps reduce operational complexity and costs.

Supports long-range Ethernet over Cat 5e or Cat 6 cable up to 800 metres. Operates at supply voltages of 12 and 24 volts. Enables full 100Base-T network speed with PoE support. Ruggedized construction for extreme temperature performance.

Simple, automatic installation with smart power and diagnostic display. Non-PoE single converter variant for extended network reach. Compact dimensions measuring 120mm height, 36mm width, and 23mm depth. Meets CE, BS EN 50121-4, RoHS, and FCC standards.

Designed for point-to-point network extension with no mid-cable equipment. Explore comprehensive CCTV Accessories and network extenders to optimize your security system performance at EnvMart.
