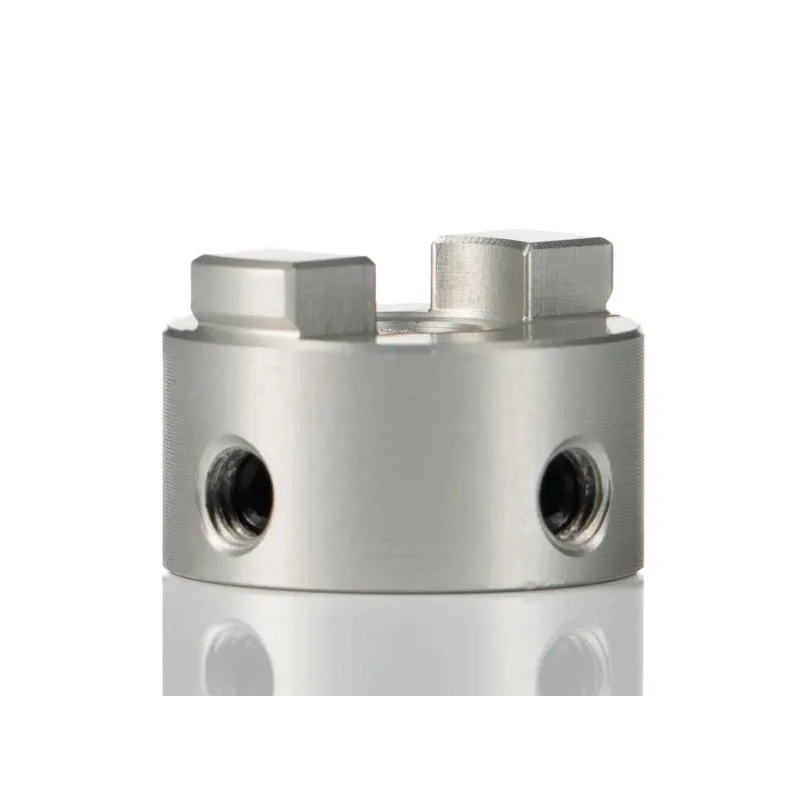

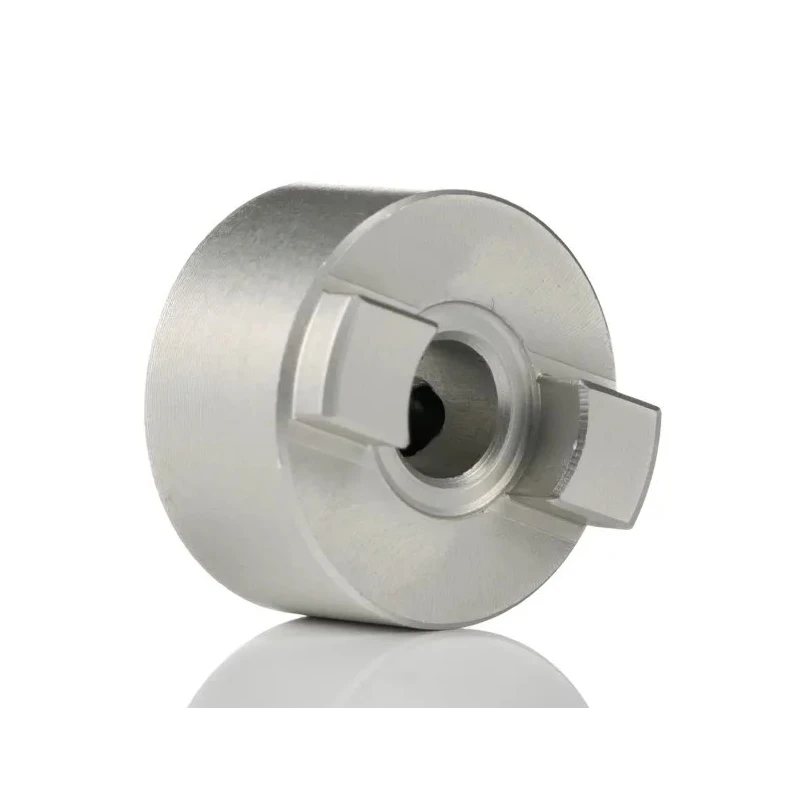

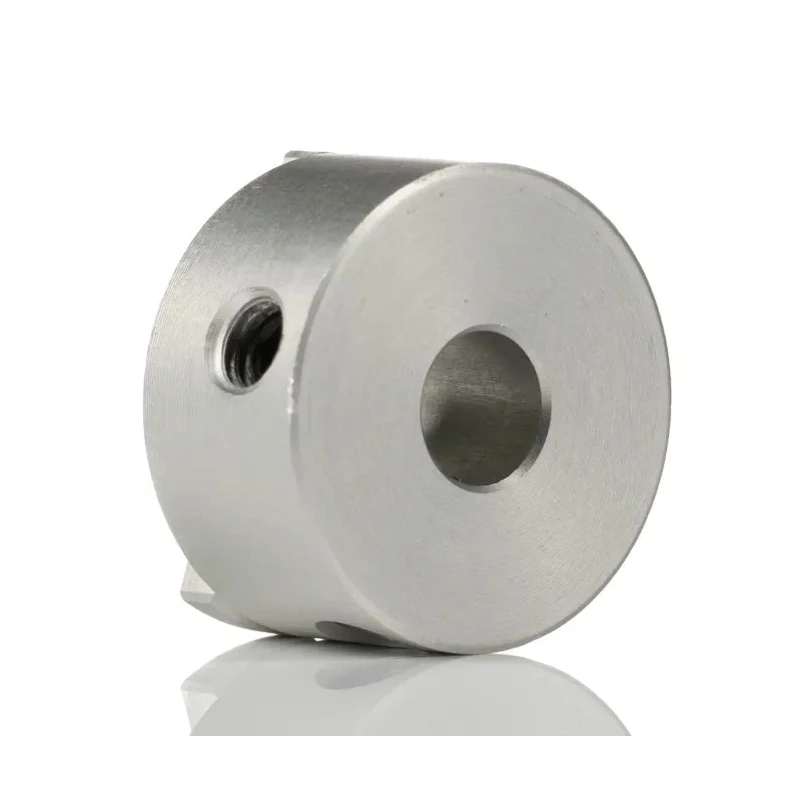

Huco Aluminium Oldham Style Flexible Coupler 19.1 mm OD, 6mm Bore Finished with Keyway, 19 mm Length 450H19.22

Huco 450H19.22 Oldham Style Flexible Coupler is designed for high precision mechanical power transmission systems requiring robust and reliable shaft coupling solutions. Manufactured from aluminium, this coupler offers lightweight construction and excellent corrosion resistance properties, ideal for industrial environments.

The coupler features a 6 mm bore diameter finished with a keyway bore, ensuring a secure and precise fit on the shaft. With an outside diameter of 19.1 mm and a hub length of 19 mm, it is compact yet highly effective for coupling small to medium-sized shafts.

The design supports a maximum rotational speed of up to 3000 rpm, suitable for a wide range of mechanical machinery and power transmission applications. The Oldham style offers a backlash-free connection, allowing for smooth torque transmission even with considerable radial shaft misalignment.

Additionally, it tolerates angular misalignments up to 0.5°, parallel misalignments up to 0.1 mm, and axial misalignments up to 0.05 mm, maintaining alignment and reducing wear on connected components.

The set screw style coupling allows for easy installation and removal without the need for complex tooling. Its electrically isolating properties help prevent electrical current transmission between coupled shafts, enhancing equipment safety.

This product is not sold as an assembled unit; customers must purchase two hubs and one torque disc separately. Manufactured in the United Kingdom, it complies with strict quality standards to ensure durability and performance.

Constructed from durable aluminium for lightweight and corrosion resistance. Finished with keyway bore design to ensure secure shaft connections. Supports maximum rotational speed of 3000 rpm for reliable performance. Allows angular misalignment up to 0.5° and parallel misalignment up to 0.1 mm.

Axial misalignment tolerance is 0.05 mm to maintain operational accuracy. Set screw style coupling for easy assembly and disassembly. Compact hub dimensions: 19.1 mm OD and 19 mm length. Backlash-free design suitable for handling large radial shaft misalignments.

Electrically isolating to prevent transmission of electrical currents. Made in United Kingdom to high manufacturing standards.

Ideal for use in industrial machinery, mechanical power transmission, fluid power tools, HVAC systems, and manufacturing equipment. Browse more flexible couplers from Huco at EnvMart for comprehensive shaft coupling solutions.
