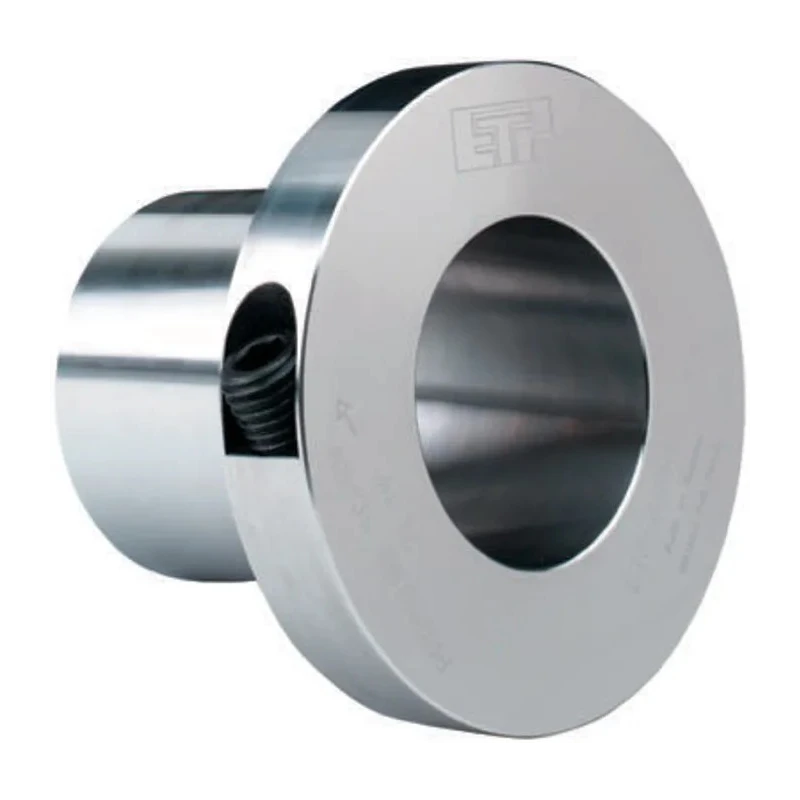

Lenze Locking Bush Steel 27mm Bore Diameter 22 mm OD, Length 46 mm, Torque Rating 130 Nm ETP EXPRESS 22MM

Lenze ETP EXPRESS 22MM Locking Bush is designed for high precision and ultra-fast mounting of mechanical power transmission components such as gears, pulleys, and sprockets. This locking bush supports applications requiring very high accuracy and frequent locking/unlocking operations due to its innovative single screw hydraulic shaft to hub design.

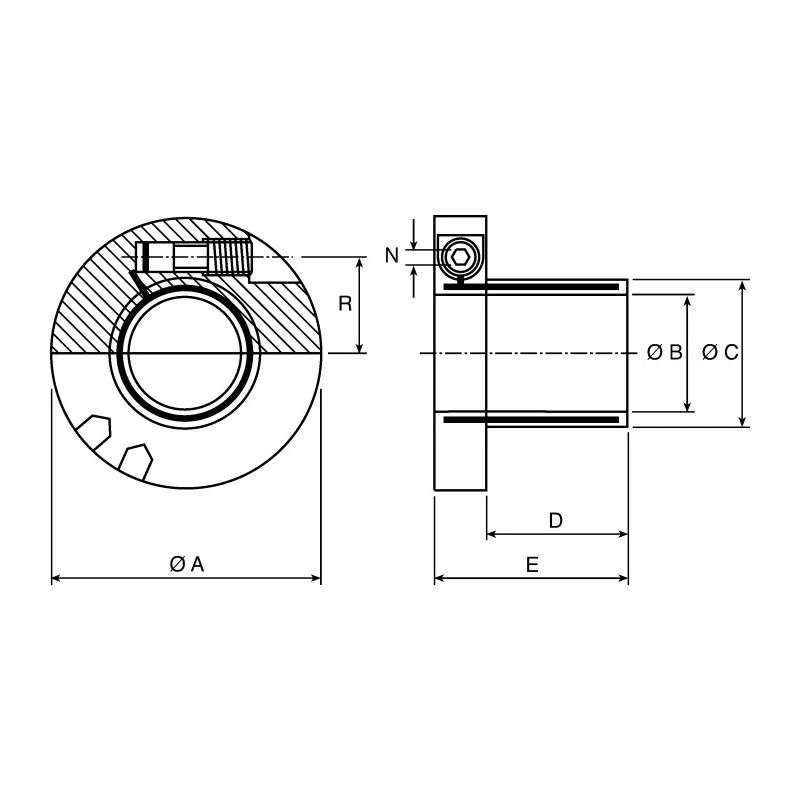

Constructed from high-quality steel, the bush features a bore diameter of 27mm with an outer diameter of 22 mm and a length of 46 mm, providing robust mechanical stability and torque capacity rated at 130 Nm. It guarantees very high concentricity and self-centering to optimize mechanical performance and reduce wear.

The bush allows ultra-fast locking and unlocking using a single pressure screw, with a radial pressure screw designed for easy access. It automatically releases when the screw is loosened, making installation and maintenance efficient. Ideal for use in applications involving small diameter hubs with tight H7-h7 hub bore and shaft tolerances.

Its operational temperature range spans from -30°C up to +85°C, suitable for most industrial environments. Care should be taken to ensure the external diameter of the hub can withstand the stresses exerted, with recommended calculation factors depending on material type (Steel x 1.5, Cast Iron x 2.0, Aluminium x 2.5).

Manufactured in Sweden, this product assures high-quality standards and consistency. It is a valuable component in fields such as mechanical power transmission, industrial machinery spares, and mechanical tool assemblies.

Features a 27mm bore diameter with a 22 mm outer diameter. Constructed from durable steel material. Torque rating of 130 Nm suitable for demanding applications. Length of the bush is 46 mm ensuring proper fit and stability.

Offers very high concentricity and self-centering capabilities. Enables ultra-fast locking and unlocking with a single pressure screw. Suitable for applications with very small diameter hubs. Operating temperature range is -30 to +85°C.

H7-h7 hub bore and shaft tolerances for precise fitment. Manufactured in Sweden ensuring high quality standards. Explore the full range of industrial Locking Bushes and mechanical power transmission products on EnvMart for reliable and efficient engineering solutions.
