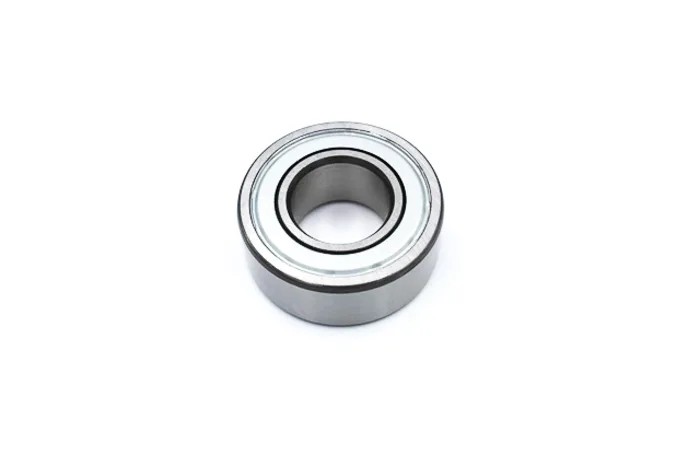

FAG 2 Row Angular Contact Ball Bearing, 35 mm ID, 62 mm OD, 20 mm Race Width, Shielded, Series 0 Extra Light 3007-2Z

FAG 3007-2Z is a double row angular contact ball bearing featuring a 35 mm inside diameter, 62 mm outside diameter, and 20 mm race width designed for demanding industrial applications. It is constructed with steel balls and a steel cage, shielded to protect the internal components from dust and contaminants. The bearing supports a contact angle of 25°, allowing it to sustain significant radial and axial loads simultaneously.

This series 0 extra light bearing is engineered for relatively rigid arrangements which must operate quietly even under high radial and axial loads, including tilting moments. Its limiting speed of 8800 rpm makes it suitable for a wide range of high-speed equipment and machinery.

The bearing is ideal for use in mechanical machinery, fluid power tools, and other industrial settings requiring durable and precise bearing performance. Its parallel bore type ensures easy and secure fitting on shafts. The internal clearance specification CN confirms standard radial internal clearance for optimal operation.

The FAG 3007-2Z's static load rating of 19.1 kN and dynamic load rating of 24 kN provide reliability under operational stresses, while the shielded end type enhances longevity by preventing ingress of contaminants. This bearing design is well-suited to environments with high combined loads and requires a relatively rigid bearing arrangement for optimal performance.

Constructed with steel balls and cage materials for durability. Shielded end type for enhanced protection against contaminants. Double row angular contact design supports radial and axial loads. Series 0 extra light bearing for quieter operation under load.

Limiting speed of 8800 rpm for high-speed applications. Contact angle of 25 degrees for efficient load distribution. Suitable for mechanical and fluid power industrial machinery. Internal clearance CN for standard clearance.

Parallel bore for precise shaft fitting. Static load rating 19.1 kN and dynamic load rating 24 kN. Explore the extensive FAG bearing range for additional configurations to suit industrial requirements across manufacturing, construction, and machinery maintenance sectors.
