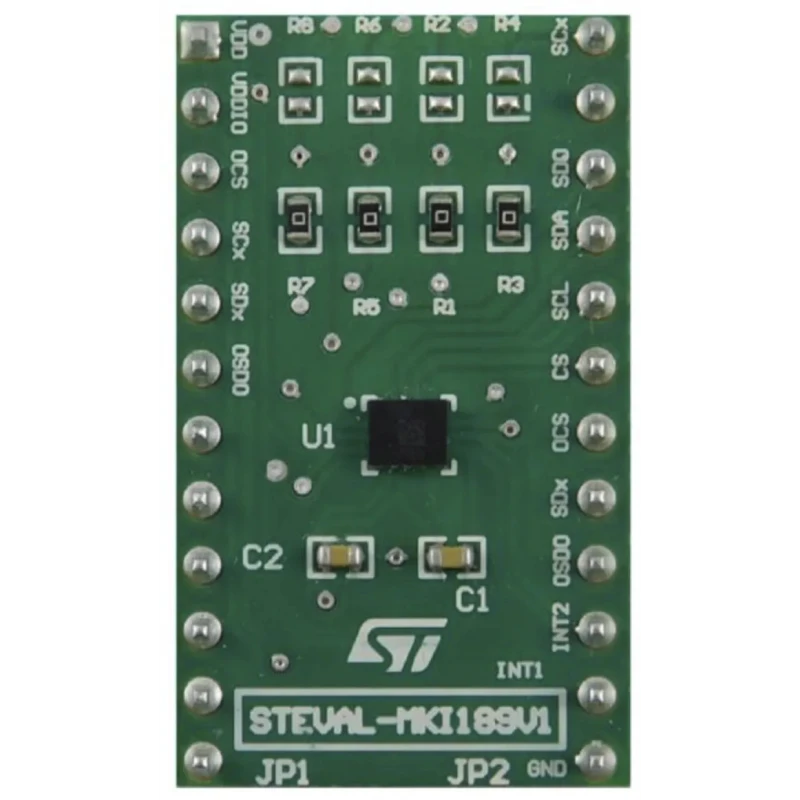

STMicroelectronics Sensor Development Tool LSM6DSM Adapter Board for Standard DIL24 Socket,
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | LSM6DSM |
| For Use With | Standard DIL24 socket, STEVAL-MKI109V3 motherboard |
| Standards/Approvals | RoHS |
| Kit Classification | Adapter Board |
| Featured Device | LSM6DSM |
| Kit Name | LSM6DSM Adapter Board |
Key Features
- The adapter board fits a standard DIL24 socket for easy integration.
- Fully compatible with STEVAL-MKI109V3 motherboard for seamless evaluation.
- Equipped with required decoupling capacitors on the VDD power supply line.
- Supported by STEVAL-MKI109V2 and STEVAL-MKI109V3 motherboards with 32-bit microcontroller bridge.
- Provides complete LSM6DSM pinout enabling extensive testing and development.
- Ideal for embedded system applications and sensor development use cases.
Product Description

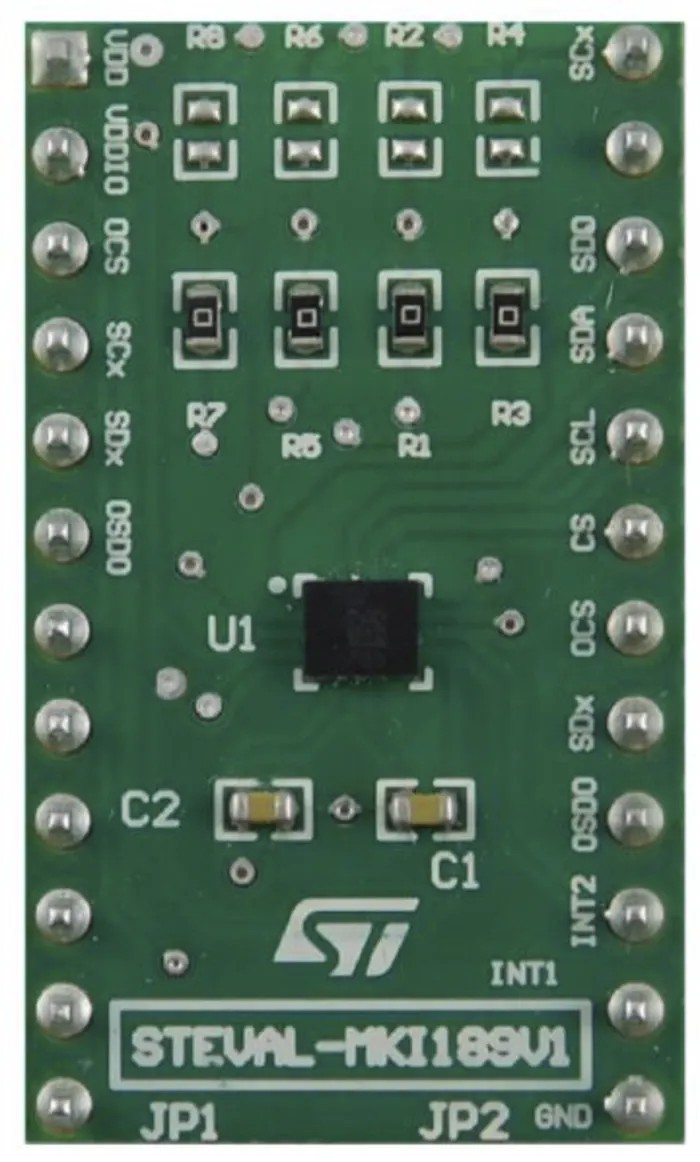

STMicroelectronics STEVAL-MKI189V1 Sensor Development Tool is an adapter board created for fast evaluation and prototyping of MEMS devices belonging to the LSM6DSM family. This adapter enables convenient integration of the LSM6DSM sensor into user applications by fitting a standard DIL24 socket. The STEVAL-MKI189V1 includes all necessary decoupling capacitors on the VDD power supply line, ensuring stable power delivery to the sensor.
This adapter board is fully compatible with the STEVAL-MKI109V3 motherboard, which features a high-performance 32-bit microcontroller acting as a bridge between the sensor and a PC. This setup allows use of the downloadable Unico GUI for graphical interaction and data visualization, or users may implement custom software routines tailored to their specific application needs.
The STEVAL-MKI189V1 can also be configured to work with the STEVAL-MKI109V2 motherboard by adjusting resistor settings as necessary. The adapter provides a complete pinout of the LSM6DSM sensor, making it an effective tool for system prototyping, sensor evaluation, and embedded development.
This adapter is widely used in industrial, laboratory, and educational environments requiring sensor interfacing, motion tracking, and inertial sensing solutions. Its compact DIL24 form factor facilitates rapid hardware integration while offering compatibility with established evaluation systems.
The adapter board fits a standard DIL24 socket for easy development integration. Built-in decoupling capacitors stabilize the sensor power supply. Supported by STEVAL-MKI109V3 motherboard with 32-bit microcontroller bridge.
Enables use of Unico graphical interface or custom routines on PC. Compatible with STEVAL-MKI109V2 motherboard after minor resistor modifications. Complete LSM6DSM pinout simplifies sensor evaluation and prototyping.
Overall, the STEVAL-MKI189V1 adapter board is an essential component for developers and engineers working on MEMS inertial sensor applications, embedded systems design, and evaluation. It streamlines integration of the LSM6DSM device into a versatile development environment, accelerating sensor testing and application development cycles.
Explore more Sensor Development Tools and adapters on EnvMart for enhanced prototyping and evaluation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The model of this adapter board is LSM6DSM.
It fits a standard DIL24 socket for easy integration.
This unit is fully compatible with the STEVAL-MKI109V3 motherboard and can also work with the STEVAL-MKI109V2 motherboard after minor resistor modifications.
It is designed for fast evaluation and prototyping of MEMS devices belonging to the LSM6DSM family, making it suitable for embedded system applications and sensor development.
This adapter is widely used in industrial, laboratory, and educational environments requiring sensor interfacing, motion tracking, and inertial sensing solutions.
The country of origin for this adapter board is Italy.
It complies with RoHS standards.
This kit is classified as an adapter board.
It provides a complete pinout of the LSM6DSM sensor, enabling extensive testing and development.
Its compact DIL24 form factor facilitates rapid hardware integration while offering compatibility with established evaluation systems.
