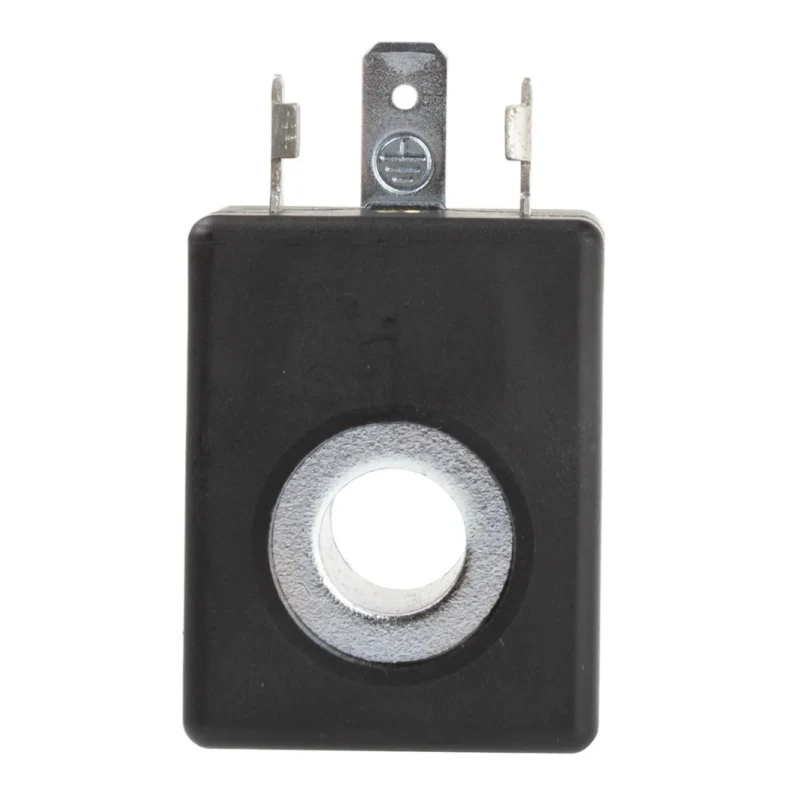

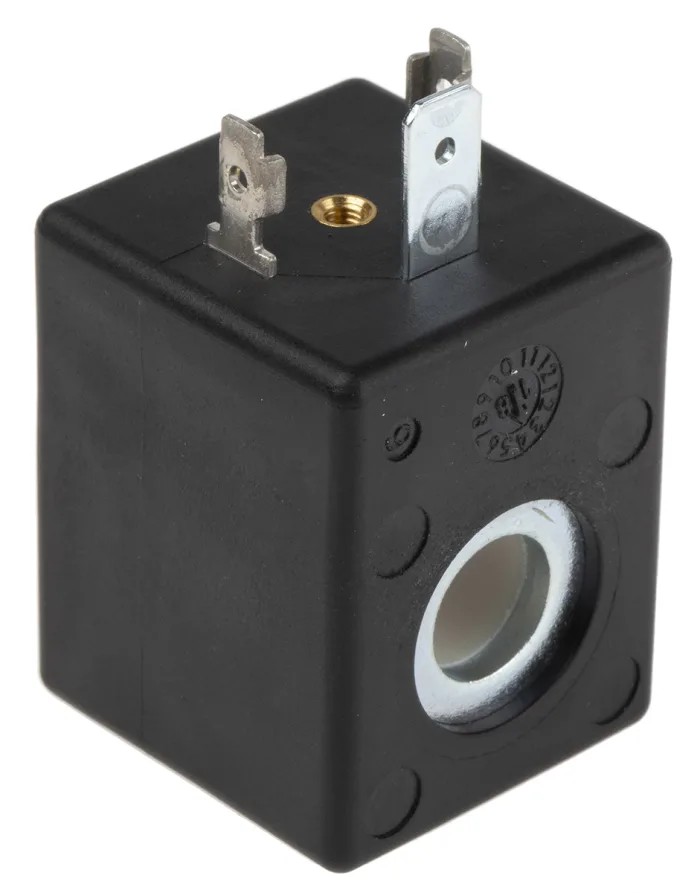

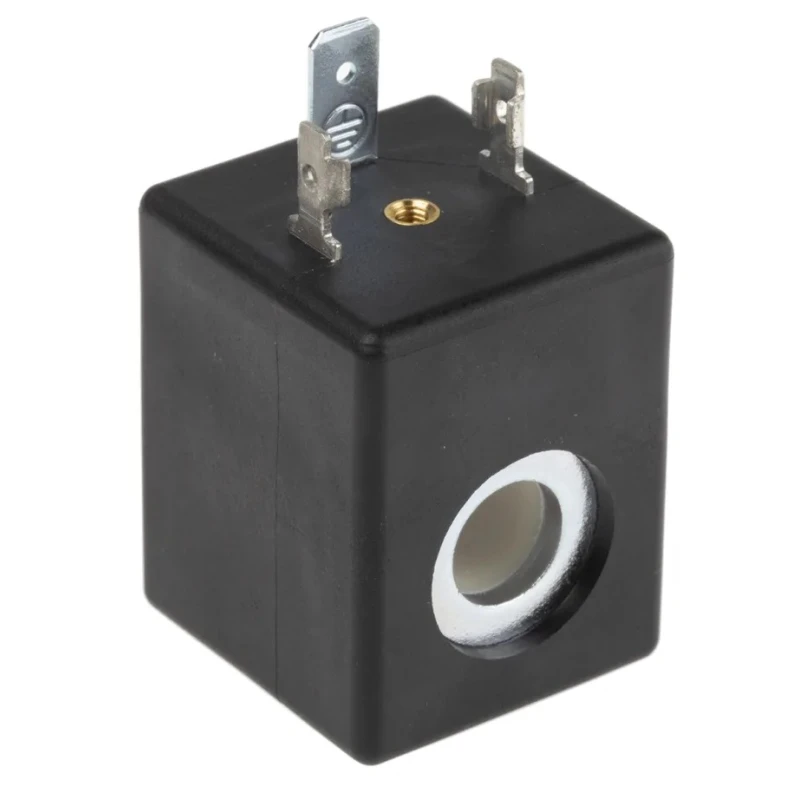

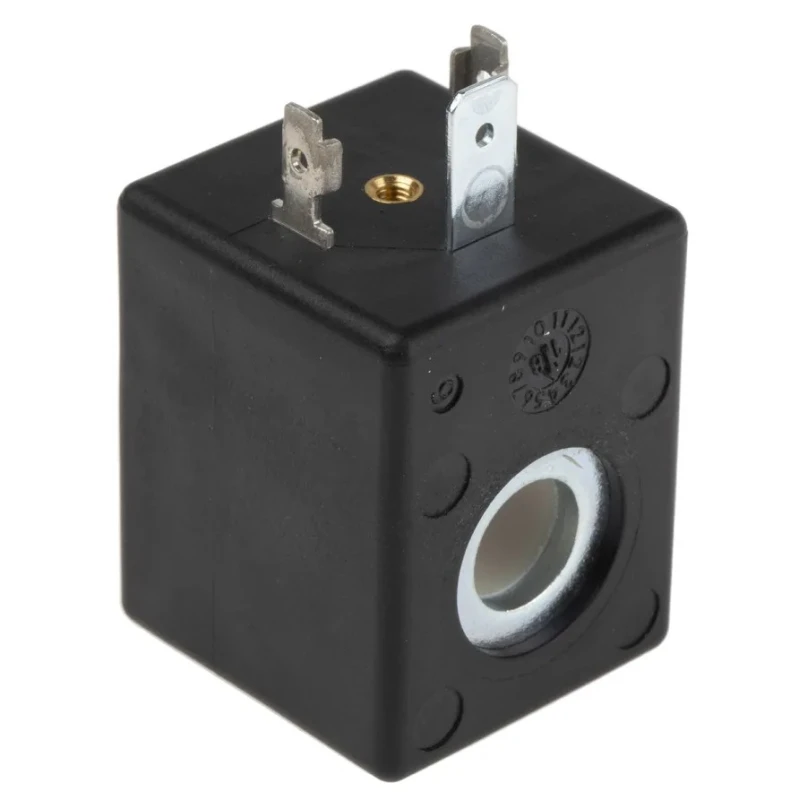

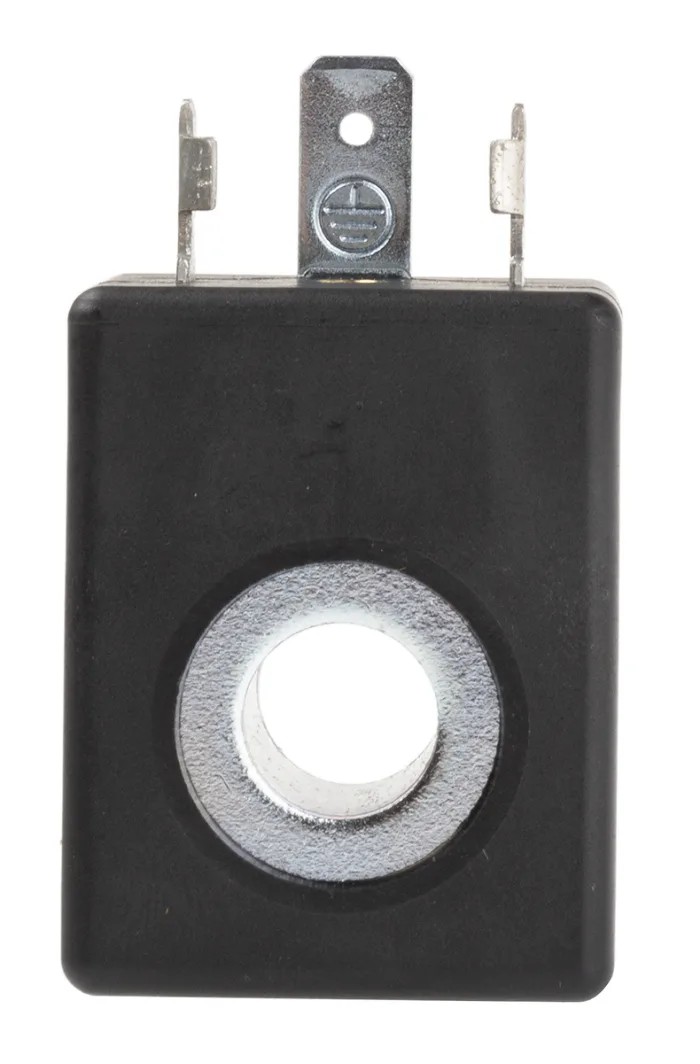

RS PRO Solenoid Valve Coil 30mm Series, 48 V AC and 24 V DC, Brass Body, Stainless Steel Core, IP65 Rated 176-2073

RS PRO 176-2073 solenoid valve coil is a 30mm Series coil designed for AC and DC voltage supply, specifically 48 V AC and 24 V DC, making it a versatile component for fluid power control applications. Constructed with a robust brass body and stainless steel core and spring, it provides durability and resistance to impact and corrosion, ideal for harsh industrial environments.

This coil is rated IP65 according to IEC 60529 standards, ensuring protection against dust ingress and water jets, suitable for use in challenging conditions. It operates continuously with a 100% duty cycle and withstands a maximum pressure of 40 bar, accommodating a wide range of industrial valve systems.

The coil supports a voltage tolerance of ±10%, maintaining stable magnetic coil performance and reliable valve operation across fluctuating power supplies. Its operating temperature range from -10°C to +80°C allows it to function effectively in various thermal environments encountered in industry.

With compact dimensions (38 x 31 mm), the coil fits into installations with space constraints, while the 30 mm valve size compatibility broadens its application scope. The electrical power consumption of 8 watts offers efficient operation without excessive energy usage.

The RS PRO valve coil is certified to meet DIN 43650 and CEI EN 60085 standards, attesting to its safety and quality compliance, making it suitable for industrial, manufacturing, HVAC, and fluid control applications.

Designed for continuous operation with 100% duty cycle. Features a durable brass body and stainless steel spring and core. IP65 rated for dust tightness and water resistance. Supports a maximum working pressure of 40 bar.

Operates within a temperature range of -10°C to +80°C. Voltage tolerance of ±10% ensures stable performance. Compact dimensions of 38 x 31 mm with a 30 mm valve size. Electrical power rating of 8 W for efficient energy use.

Complies with DIN 43650 and CEI EN 60085 standards and approvals. Manufactured in Italy ensuring high-quality production standards.

This Solenoid Valve Coil is essential for controlling liquid and gas flow in automated pressure systems, suitable for industries such as industrial automation, fluid power, HVAC systems, and manufacturing plants.
