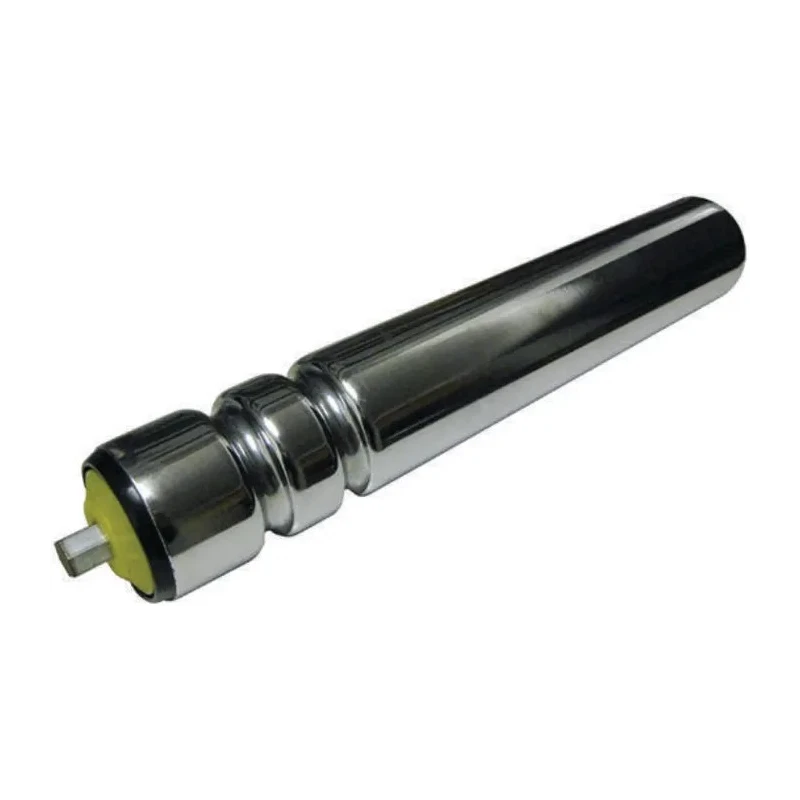

Interroll M5 Conveyor Roller, Zinc Plated Tube, 50 mm Diameter x 550 mm Length, Load Capacity 1103 N, Spindle 17X5JAEVAB

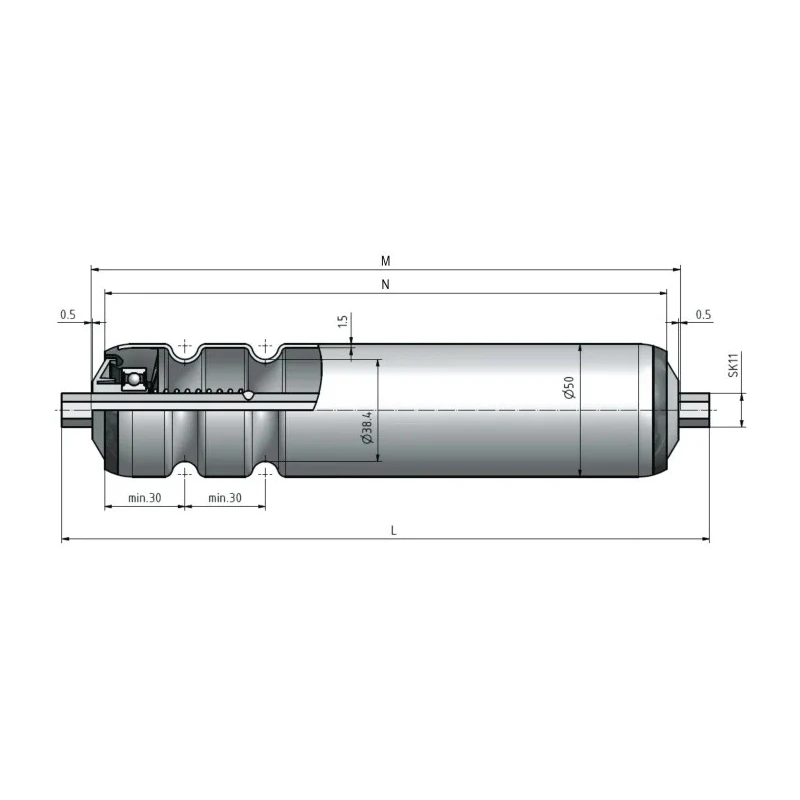

The Interroll 17X5JAEVAB M5 conveyor roller features a zinc plated tube with a 50 mm roller diameter and 550 mm roller length, engineered for robust industrial conveying systems requiring reliable performance at speeds up to 2 meters per second. This conveyor roller is part of the Series 17X and includes two precisely positioned grooves for drive bands at 40 mm and 70 mm from the roller end face, optimized for operational efficiency.

The roller incorporates low-noise polyamide bearing housings and seals that reduce running noise significantly. The secured bearing seat integrates a front seal to protect internal components from coarse dirt and water splashes, extending service life and reducing maintenance demands. Rounded roller ends are designed to allow smooth lateral movement of loads, facilitating versatile conveyor system configurations.

Equipped with an 11 mm AF hexagonal spring-loaded shaft, this roller offers secure and stable mounting. The robust construction allows it to support a load capacity of 1103 N, making it suitable for a wide range of industrial applications including manufacturing, logistics, and material handling.

The product conforms to RoHS standards, ensuring environmentally responsible manufacturing practices. Made in Germany, the conveyor roller benefits from premium craftsmanship and quality control, assuring users of consistent performance in diverse industrial settings.

The roller has a zinc plated tube and measures 50 mm in diameter and 550 mm in length. Includes two grooves for drive bands to enhance mechanical engagement. Features polyamide bearing housings for low-noise operation. Integrated seal protects bearings from contamination and moisture.

Rounded roller ends allow smooth lateral load movement along the conveyor. Supports a load capacity of 1103 N suitable for heavy-duty applications. Maximum recommended conveyor speed is 2 m/s to maintain operational safety.

Equipped with 11 mm AF hexagonal spring-loaded shaft for reliable mounting. Manufactured in Germany with RoHS compliance ensuring quality and safety.

This Interroll conveyor roller is ideal for industrial material handling, manufacturing lines, and logistics conveyor integration where durability, noise reduction, and reliable load support are critical. Explore additional Interroll Conveyor Components and conveyor rollers available at EnvMart for complete system solutions.
