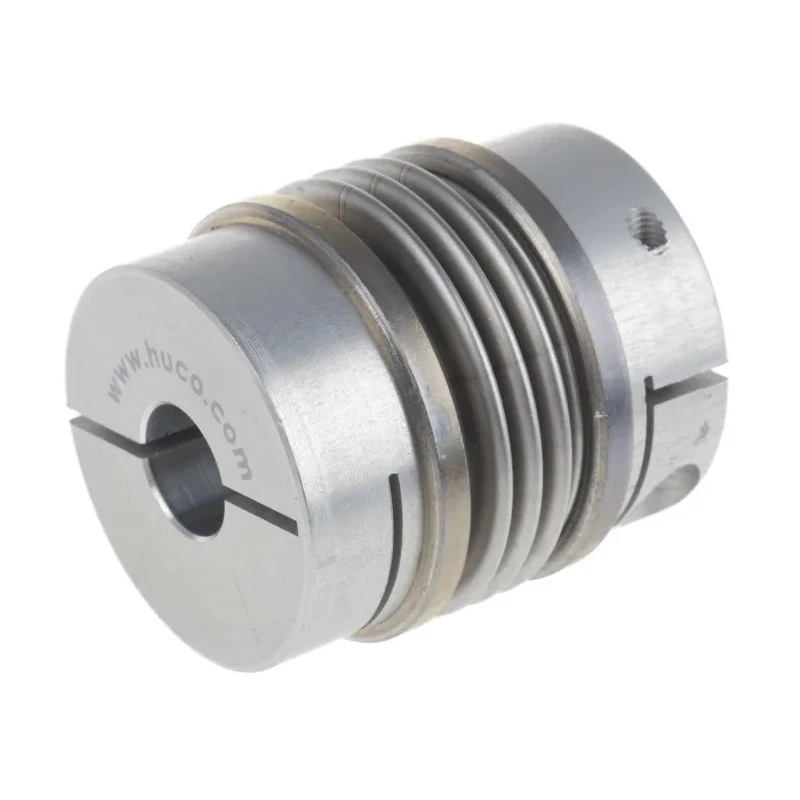

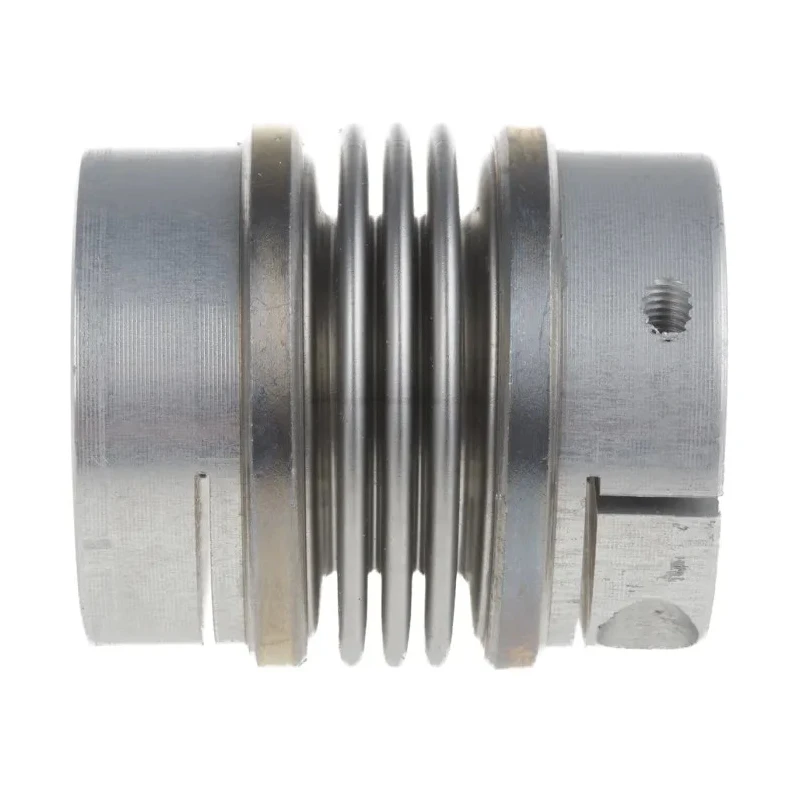

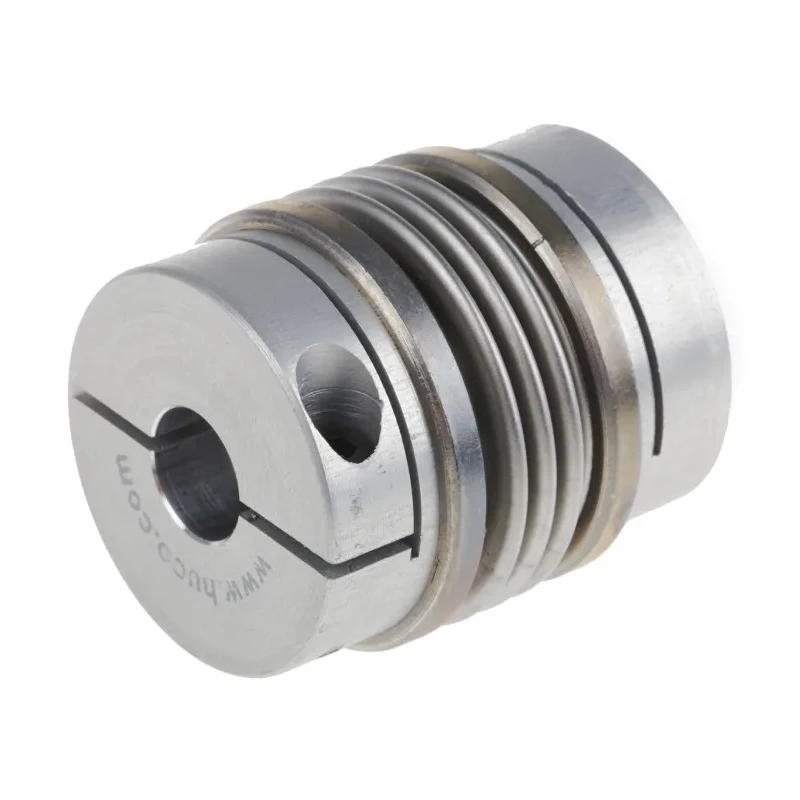

Huco Flexible Stainless Steel Bellows Clamp Coupler 10 mm Bore 34 mm OD 40 mm Length 536.34.3232

Free Delivery in India | Lowest Global Shipping Charges

Huco Flexible Stainless Steel Bellows Clamp Coupler 10 mm Bore 34 mm OD 40 mm Length 536.34.3232

Name: Huco Flexible Stainless Steel Bellows Clamp Coupler 10 mm Bore 34 mm OD 40 mm Length 536.34.3232
Brand: Huco
SKU: 425453
Price: 76.41 USD
Availability: InStock



Category Mechanical Power Transmission Coupler Brand Huco Condition New

Specifications

Country of Origin	United Kingdom
Screw Size	M3
Brand	Huco
Length	40mm
Maximum Speed	5000rpm
Series	Flex B
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-40°C
Torque Rating	2.43Nm
Hub Material	Aluminium
Moment of Inertia	2390 x 10-8 kg/m²
Misalignment - Angular	2.5°
Misalignment - Parallel	0.1mm
Misalignment - Axial	0.6mm
Bellows Material	Stainless Steel
Bore Size B	10mm
Ruland, 33.3mm Outside Diameter, 10mm Bore, 39.7mm Length Bellows CouplingBrand	Ruland

Key Features

Constructed with aluminium hub and stainless steel bellows for durability.
Clamp style providing secure and easy installation.
Torque rating of 2.43 Nm suitable for moderate power transmission.
Maximum operational speed of 5000 rpm supports high-speed applications.
Operating temperature range from -40°C to 120°C ensures versatility in various environments.
Moment of inertia is 2390 x 10-8 kg/m² contributing to low inertia for dynamic performance.
Comes with M3 screw size for mounting.
Manufactured in the United Kingdom to quality standards.

Product Description

Huco 536.34.3232 Flexible Stainless Steel Bellows Clamp Coupler is engineered for precise mechanical power transmission in demanding industrial environments. This coupler features an aluminium hub combined with stainless steel bellows, delivering high torsional stiffness and low inertia, which are critical for servo drive applications requiring dynamic position control.

With a bore size of 10 mm and an outer diameter of 34 mm, the coupler extends 40 mm in length, making it suitable for installations where compactness and lightweight are important. Its clamp style ensures ease of installation and secure attachment to shafts.

The coupler can sustain a maximum speed of up to 5000 rpm and accommodates torque up to 2.43 Nm. It tolerates misalignment effectively with angular misalignment capability of 2.5°, parallel misalignment up to 0.1 mm, and axial movement allowance of 0.6 mm. This flexibility helps in reducing stresses on connected components and extends the system's service life.

Designed to operate efficiently in temperature ranges from -40°C to 120°C, this stainless steel bellows coupling is durable in harsh conditions. The moment of inertia at 2390 x 10-8 kg/m² underscores its suitability for applications requiring high precision and responsiveness.

Aluminium hub and stainless steel bellows for durability and stiffness. Clamp style for secure and adjustable mounting. Suitable for servo drives with high precision dynamic position control. Handles misalignment and axial movement, reducing system stress.

Operates reliably across wide temperature ranges. Designed and manufactured in the United Kingdom adhering to strict quality standards. Torque rating of 2.43 Nm and maximum speed of 5000 rpm. Includes M3 screw size mounting hardware.

This Huco coupler is ideal for industrial machinery, manufacturing, automation systems, and mechanical power transmission applications requiring both reliability and precision. Explore EnvMart's extensive range of mechanical power transmission products and find high-quality couplers like the Huco 536.34.3232 for your engineering needs.
