Huco Aluminium Hub Stainless Steel Bellows Flexible Coupler 16 mm OD, 21 mm Length 550.16.2020

Free Delivery in India | Lowest Global Shipping Charges

Huco Aluminium Hub Stainless Steel Bellows Flexible Coupler 16 mm OD, 21 mm Length 550.16.2020

Name: Huco Aluminium Hub Stainless Steel Bellows Flexible Coupler 16 mm OD, 21 mm Length 550.16.2020
Brand: Huco
SKU: 425447
Price: 46.77 USD
Availability: InStock



Category Mechanical Power Transmission Coupler Brand Huco Condition New

Specifications

Country of Origin	Germany
Screw Size	M3
Brand	Huco
Length	21mm
Maximum Speed	15000rpm
Series	Flex K
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-30°C
Torque Rating	0.5Nm
Hub Material	Aluminium
Moment of Inertia	17 x 10-8 kg/m²
Misalignment - Angular	1°
Misalignment - Parallel	0.1mm
Misalignment - Axial	0.2mm
Bellows Material	Stainless Steel
Huco, 15.5 mm OD 7 mm, 23 mm Length Coupler 7 mmBrand	Huco
Ruland, 15mm Outside Diameter, 5mm Bore, 27.2mm Length Bellows CouplingBrand	Ruland

Key Features

This coupler is designed to provide high torsional stiffness for precise positional accuracy.
It features low inertia, making it ideal for high precision servo drive applications.
The screw type style with M3 screw size ensures secure coupling.
Capable of handling torque ratings up to 0.5 Nm at speeds up to 15,000 rpm.
Features misalignment tolerances of 1° angular, 0.1 mm parallel, and 0.2 mm axial.
Operating temperature range from -30°C to 120°C supports diverse industrial environments.
Constructed with durable aluminium hub material and stainless steel bellows for longevity.
Manufactured in Germany, assuring high quality standards.

Product Description

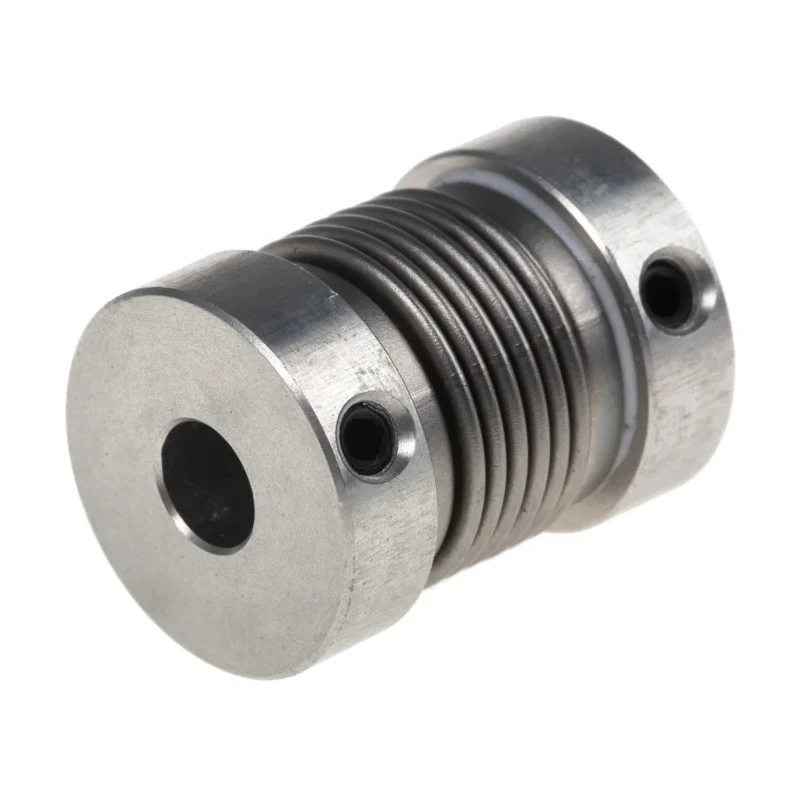

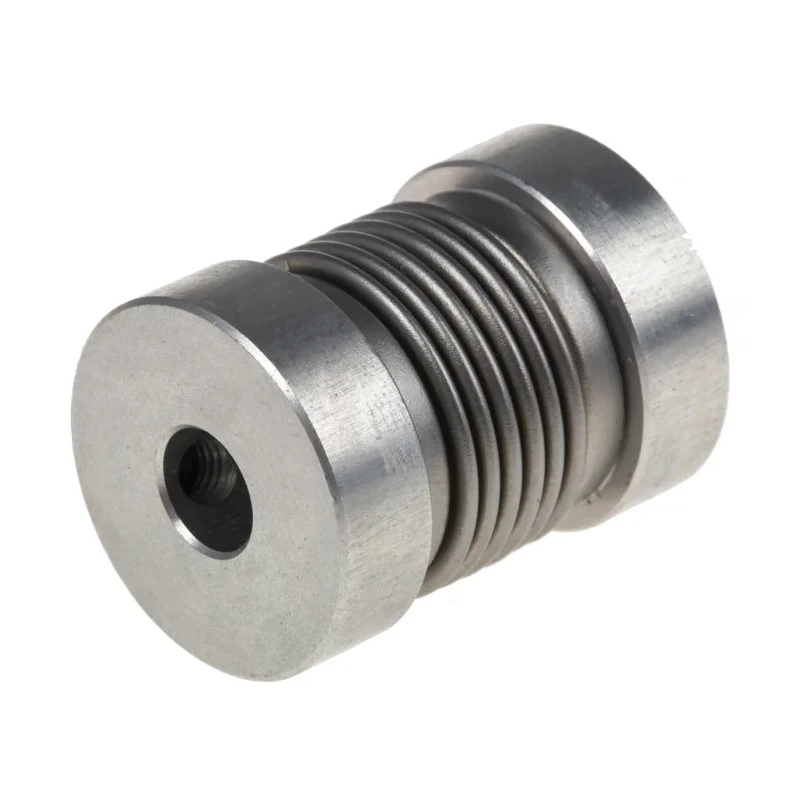

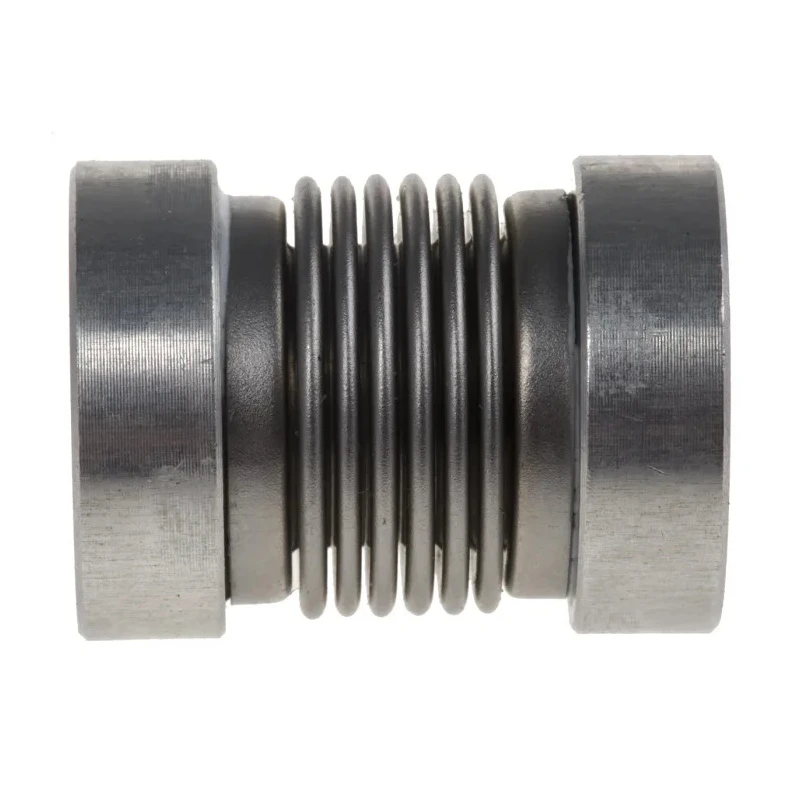

Huco 550.16.2020 is a high-quality flexible coupler featuring an aluminium hub combined with stainless steel bellows. With a 16 mm outer diameter and 21 mm length, it is engineered for precise mechanical power transmission applications requiring high positional accuracy and rigidity.

The coupler's design includes a screw type style with an M3 screw size to ensure secure attachment and reliable performance. It delivers a torque rating of 0.5 Nm and can operate at maximum speeds up to 15,000 rpm, making it suitable for demanding industrial servo drive and motion control systems.

Key misalignment capabilities allow angular misalignment up to 1°, parallel misalignment of 0.1 mm, and axial displacement tolerance of 0.2 mm, accommodating typical shaft misalignments encountered in mechanical setups.

The temperature operating window ranges from -30°C minimum to 120°C maximum, allowing use in various environmental conditions without compromising material integrity. The aluminium hub offers lightweight and corrosion-resistant properties, while the stainless steel bellows ensure durability and flexibility.

Manufactured in Germany, this coupler complies with high engineering standards suitable for sectors including industrial automation, robotics, manufacturing, and precision engineering.

High torsional stiffness ensures optimal positional accuracy. Low moment of inertia suitable for dynamic servo drive applications. Robust materials provide reliability and extended service life. Supports high rotational speeds up to 15,000 rpm safely.

Designed to accommodate angular, parallel, and axial shaft misalignments. Wide operating temperature range for versatile industrial usage. Screw type style with standardized M3 size for ease of installation. Ideal for use in mechanical power transmission and flexible coupling systems.
