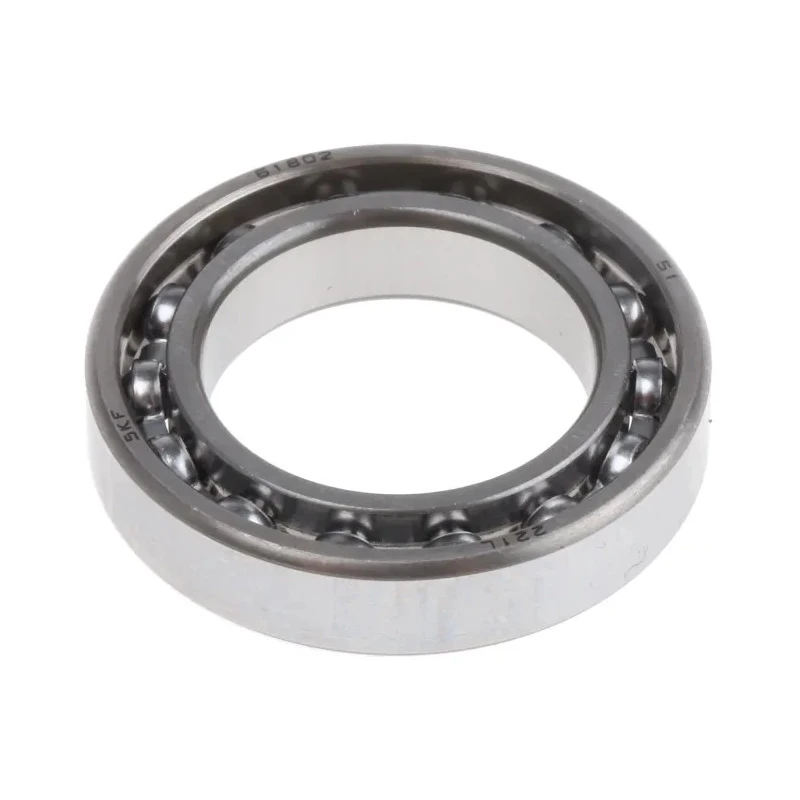

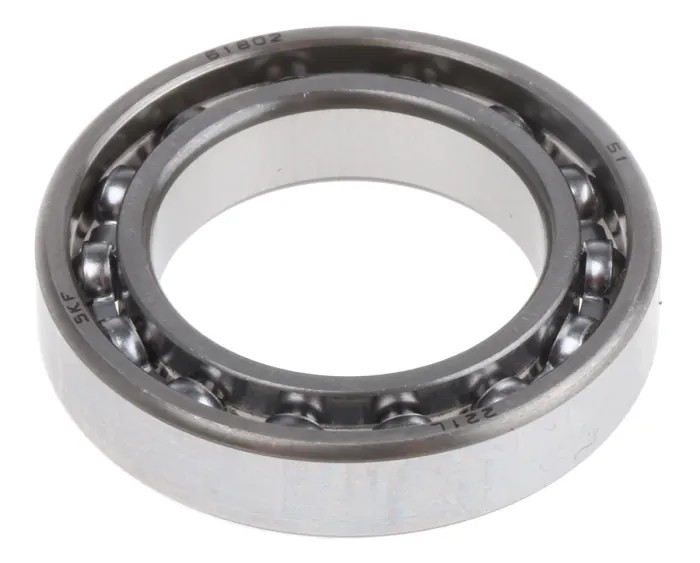

SKF Single Row Deep Groove Ball Bearing 15 mm ID, 24 mm OD, 5 mm Race Width, Sheet Metal Cage 61802

SKF 61802 is a high-quality, single row deep groove ball bearing featuring a 15 mm inside diameter, 24 mm outside diameter, and 5 mm race width. It is constructed with steel balls and a sheet metal cage, providing durability, corrosion resistance, and reliable performance.

The bearing’s open-ended design allows lubricant to circulate freely, helping to reduce friction and operating temperature, which increases machinery efficiency and lowers maintenance needs. It is heat stabilized up to 120°C, enabling operation in high temperature environments.

With a limiting speed of 38,000 rpm, this bearing optimizes performance in high-speed applications. Its static load rating of 1.1 kN and dynamic load rating of 1.9 kN make it suitable for supporting heavy radial and axial loads.

Owing to its lightweight of approximately 0.0074 kg and slim 5 mm race width, it fits into space-restricted areas and applications demanding low weight, such as office machinery and precision gearboxes. It is ideal for use in dirt-free environments where the bearing is externally housed and lubricated.

Common applications include internal combustion engines, engineering machinery, motors, and other industrial equipment requiring reliable and efficient rotational support. This bearing features a sheet metal cage and steel balls for durability and corrosion resistance.

The open end design enables free lubricant flow, reducing maintenance downtime. Limiting speed of 38000 rpm makes it suitable for high-speed applications. The bearing is heat stabilised up to 120°C for extreme temperature use.

It has a static load rating of 1.1 kN and a dynamic load rating of 1.9 kN for supporting heavy loads. Designed for use in dirt-free environments with external housing and lubrication. Lightweight at approximately 0.0074 kg and compact with slim race width for space-restricted applications.

Applications include office machinery, gearboxes, motors, internal combustion engines, and engineering machinery. Explore more from SKF and browse our comprehensive range of Ball Bearings and rotary bearing solutions at EnvMart.
