Idec PCB Power Relay 24V DC Coil 33A Switching Current SPDT RF2S-1A1BLD1-D24

Free Delivery in India | Lowest Global Shipping Charges

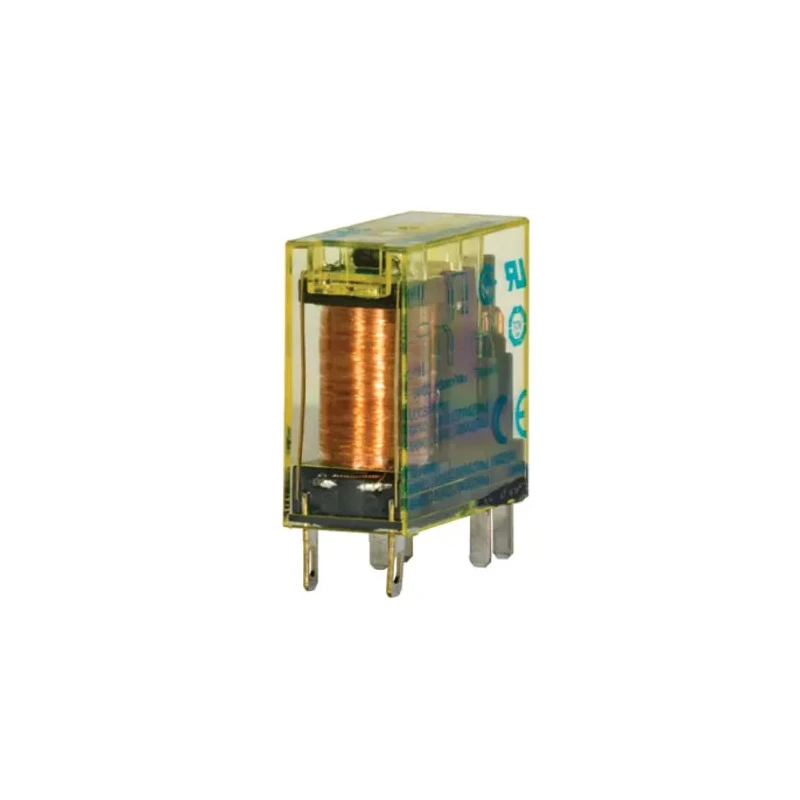

Idec PCB Power Relay 24V DC Coil 33A Switching Current SPDT RF2S-1A1BLD1-D24

Name: Idec PCB Power Relay 24V DC Coil 33A Switching Current SPDT RF2S-1A1BLD1-D24
Brand: Idec
SKU: 422847
Price: 20.22 USD
Availability: InStock



Category Power Relays Brand Idec Condition New

Specifications

Country of Origin	Japan
Brand	Idec
Height	25.4mm
Length	28mm
Model	RF2S-1A1BLD1-D24
Width	12.7mm
Mount Type	PCB
Contact Material	Gold Plated
Series	RF2
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Minimum Operating Temperature	-40°C
Switching Current	33A
Terminal type	PCB Pin
Contact Resistance	100mΩ
Standards/Approvals	RoHS
Coil Resistance	820Ω
Coil Voltage	24V dc
Switching DC Voltage	125V dc
Switching AC Voltage	250V ac
Coil Power	0.7W

Key Features

The relay features a 24V DC coil voltage ensuring reliable operation.
It supports a maximum switching current of 33 amperes.
Contact configuration is Single Pole Double Throw (SPDT) suitable for versatile switching needs.
Designed for PCB mounting with PCB pin terminals for secure connections.
Coil resistance is 820 ohms with coil power consumption of 0.7W.
Gold plated contacts reduce contact resistance to 100 milliohms.
Operating temperature ranges from -40°C to 85°C for robust environmental performance.
It complies with RoHS standards ensuring environmental safety.

Product Description

The Idec RF2S-1A1BLD1-D24 PCB Power Relay is a high-performance relay designed for industrial and automation applications requiring reliable switching on printed circuit boards. It features a 24V DC coil voltage and can handle a high switching current of up to 33A, making it suitable for demanding electrical loads.

This SPDT (Single Pole Double Throw) relay comes with PCB mounting capability via PCB pin terminals, ensuring easy integration into electronic control systems. The contact material is gold plated, which minimizes contact resistance (100mΩ) and enhances the longevity and reliability of the contacts.

Engineered for robust operation, it supports a broad temperature range from -40°C to 85°C, allowing usage in harsh environments. Its coil resistance of 820Ω and coil power consumption of 0.7W provide efficient performance.

The compact physical dimensions of 28 mm length, 25.4 mm height, and 12.7 mm width aid in minimizing the space requirements on PCBs. This relay conforms to RoHS standards, ensuring compliance with environmental and safety regulations.

Manufactured in Japan, the RF2S-1A1BLD1-D24 ensures superior quality and reliability expected by industrial users. The relay features a 24V DC coil voltage ensuring reliable operation. It supports a maximum switching current of 33 amperes.

Contact configuration is Single Pole Double Throw (SPDT) suitable for versatile switching needs. Designed for PCB mounting with PCB pin terminals for secure connections. Coil resistance is 820 ohms with coil power consumption of 0.7W.

Gold plated contacts reduce contact resistance to 100 milliohms. Operating temperature ranges from -40°C to 85°C for robust environmental performance. The relay has compact dimensions: 28 mm length, 25.4 mm height, and 12.7 mm width.

It complies with RoHS standards ensuring environmental safety. Manufactured in Japan ensuring high quality and reliability.

This PCB power relay is ideal for industrial automation, control panels, HVAC systems, manufacturing machinery, and other electrical applications where reliable power switching is critical. Explore related Power Relays on EnvMart for compatible products.
