SKF Flange Bearing Unit Cylindrical Bore 45 mm ID Steel Housing Set Screw Locking 4300 rpm FYTB 45 TF

Free Delivery in India | Lowest Global Shipping Charges

SKF Flange Bearing Unit Cylindrical Bore 45 mm ID Steel Housing Set Screw Locking 4300 rpm FYTB 45 TF



Category Mechanical, Fluid Power & Tools Brand SKF Condition New

Specifications

Country of Origin	Italy
Brand	SKF
Material	Steel
Length	178.5mm
Model	FYTB 45 TF
Depth	54.2mm
Width	54.2mm
Series	FYTB
Inside Diameter	45mm
Limiting Speed	4300rpm
End Type	Open
Bore Type	Cylindrical
Static Load Rating	21.6kN
Dynamic Load Rating	33.2kN
Mount Hole Size	16 mm
Mount Hole Centre-to-Centre	148.5mm
Number of Mount Holes	2
Locking Type	Set Screw

Key Features

Comprises a 2-hole flange design for stable mounting.
Made of durable steel material for long service life.
Contains a deep groove ball bearing insert with a 45 mm bore diameter.
Set screw locking mechanism enables quick and secure installation.
Open end type allows easy inspection and maintenance.
Mount hole center-to-center distance of 148.5 mm for precise fit.
Capable of withstanding a static load rating of 21.6 kN and dynamic load rating of 33.2 kN.
Manufactured in Italy ensuring high quality standards.

Product Description

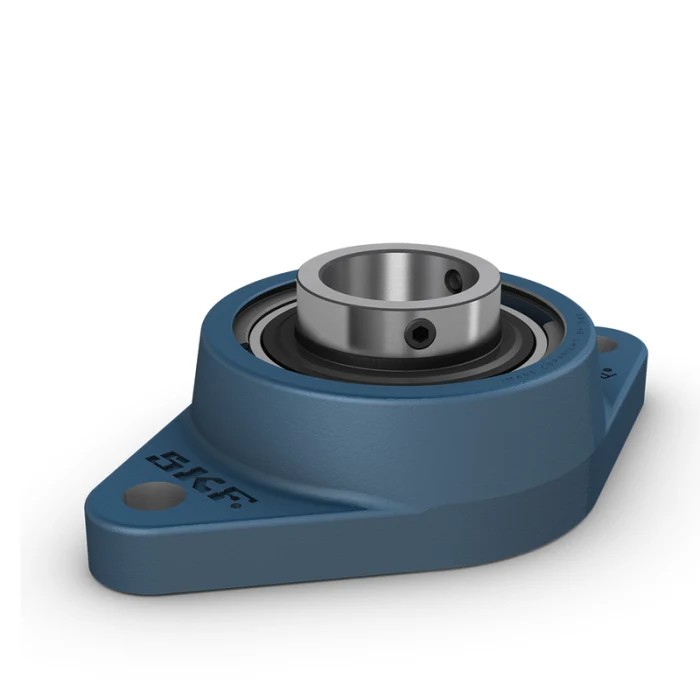

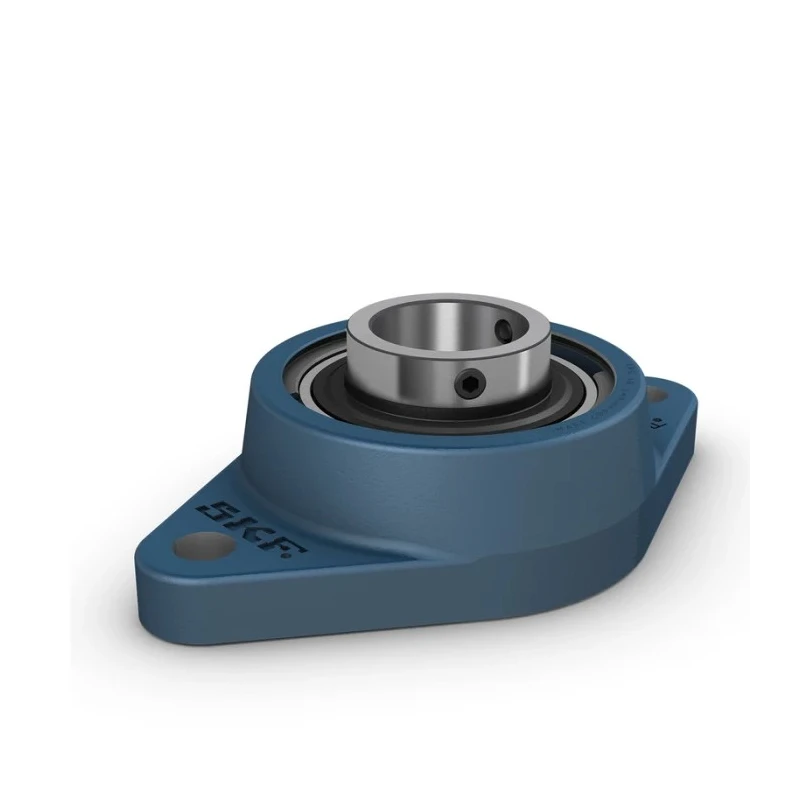

SKF FYTB 45 TF flange bearing unit is designed for precise rotary shaft support in industrial and mechanical applications. This unit includes an insert bearing with a 45 mm inside diameter mounted in a robust steel housing, which can be fastened securely using the two mounting holes arranged in the flange.

The cylindrical bore type bearing insert is equipped with a set screw locking system, ensuring stable mounting on the shaft and enabling easy installation and adjustment. The flange bearing unit has an open end type, allowing for inspection and lubrication if necessary.

The overall housing dimensions include a length of 178.5 mm, width and depth both at 54.2 mm, and a mount hole center-to-center spacing of 148.5 mm. The mount holes have a diameter of 16 mm to accommodate secure bolting.

This bearing unit is based on sealed deep groove ball bearings from SKF series 62 and 63, featuring a convex outer ring and often an extended inner ring to enhance mounting precision.

The unit can withstand a static load of 21.6 kN and dynamic load of 33.2 kN, suitable for demanding rotary applications up to a limiting speed of 4300 rpm. It is made of high-quality steel material and manufactured in Italy, assuring durability and reliability.

Comprises a 2-hole flange design for stable mounting. Made of durable steel material for long service life. Contains a deep groove ball bearing insert with 45 mm bore diameter. Set screw locking mechanism enables quick and secure installation.

Open end type allows easy inspection and maintenance. Mount hole center-to-center distance of 148.5 mm for precise fit. Capable of withstanding static load rating of 21.6 kN and dynamic load rating of 33.2 kN. Manufactured in Italy ensuring high quality standards.

Suitable for industrial, mechanical, and manufacturing applications requiring reliable rotary bearing support. Explore more flange bearing units and rotary bearing solutions at EnvMart for all your industrial and mechanical needs.
