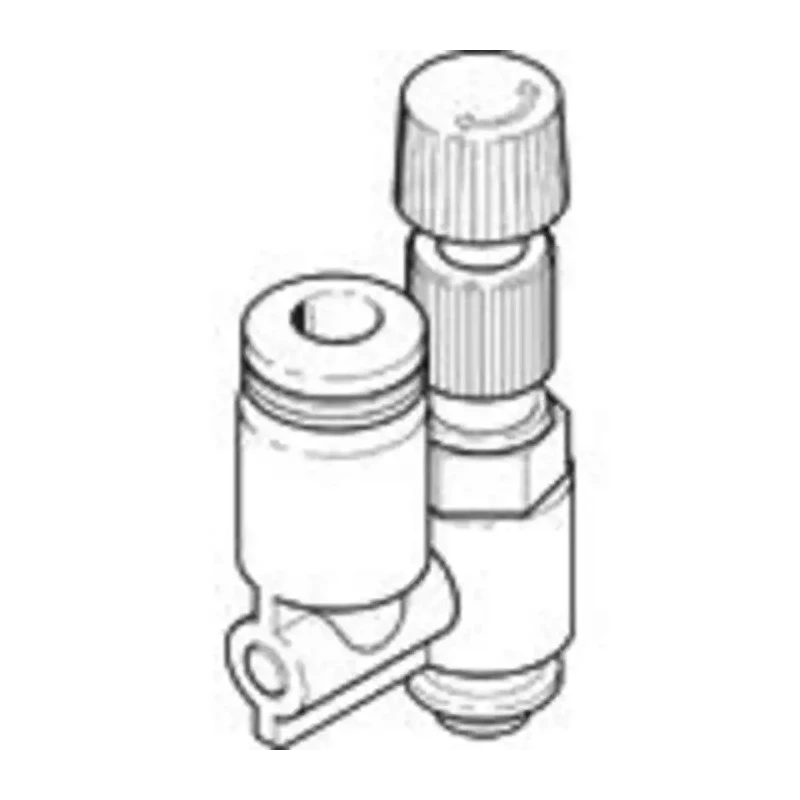

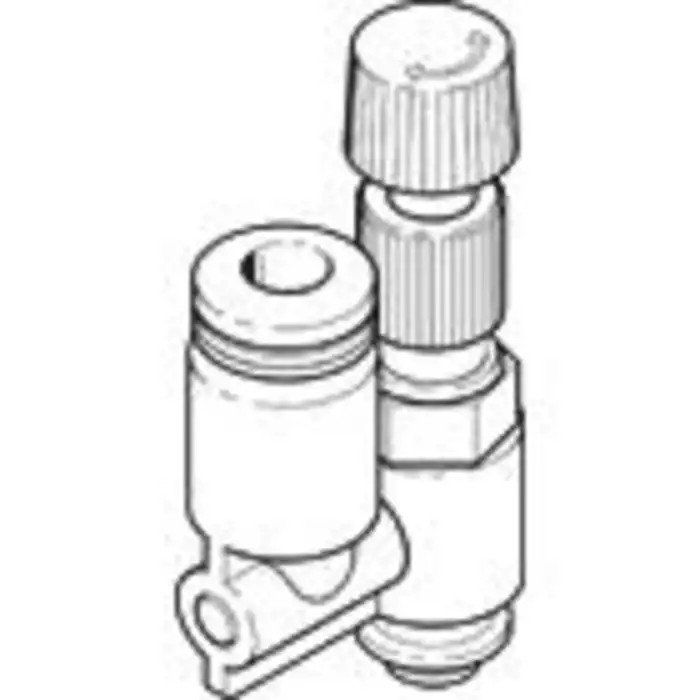

Festo Flow Regulator, Inlet Male R 1/8 in G Tube QS-4, Polybutylene Terephthalate Reinforced, 9 bar Max Pressure LRL-1/8-QS-4
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Festo |
| Material | Polybutylene Terephthalate Reinforced |
| Maximum Operating Pressure | 9 bar |
| Outlet Connection Type | Tube |
| Model | LRL-1/8-QS-4 |
| Series | LRL-1/8-QS-4 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | 0°C |
| Inlet Connection Size | 1/8 in G |
| Standards/Approvals | RoHS |
| Inlet Thread Standard | R |
| Minimum Operating Pressure | 0bar |
| Inlet Port Gender | Male |
| Outlet Connection Size | QS-4 |
| ISO8573-1 | 2010 |
Key Features
- The regulator maintains differential pressure between inlet and outlet for stable flow.
- Constructed with nickel plated brass threaded plug and reinforced polybutylene terephthalate housing.
- Operates at maximum pressure of 9 bar and temperature range from 0°C to 60°C.
- Features a knurled screw with lock nut for secure manual adjustment.
- Includes a 360° rotatable push-in connector suitable for tubing sizes 4mm to 12mm.
- Equipped with an integrated non-return valve to prevent backflow.
- Complies with RoHS standards and has no hazardous area certification.
- Designed for use in aerospace, medical, mining, and air compressor applications.
Product Description
The Festo LRL-1/8-QS-4 series flow regulator is a high-precision pneumatic function fitting designed for industrial applications requiring reliable pressure regulation. With an inlet male thread of R 1/8 inch G and a QS-4 tube outlet connection, it enables seamless integration into pneumatic systems.
Manufactured with a reinforced Polybutylene Terephthalate (PBT) housing and a nickel plated brass threaded plug, this regulator offers robust durability and corrosion resistance. It maintains a manually adjustable differential pressure between the screw-in thread and QS push-in connector output, ensuring consistent flow rates.
The flow regulator can operate safely within a maximum pressure of 9 bar and withstand ambient temperatures from 0°C up to 60°C. Its knurled screw and lock nut actuator provide secure adjustment without loss of settings during operation.
The push-in connector supports tubing with outer diameters from 4mm to 12mm and can be rotated a full 360 degrees for versatile installation configurations. A PTFE threaded seal ensures leak-tight connections, and an integrated non-return valve prevents backflow, protecting system integrity.
This component meets RoHS standards, ensuring environmentally compliant manufacturing. Although it does not have hazardous area certification, it is suitable for demanding environments such as aerospace, mining, medical fields, and compressed air systems.
The regulator maintains differential pressure for precise flow control. Nickel plated brass threaded plug enhances durability. Reinforced polybutylene terephthalate housing for strength. Supports inlet pressure up to 9 bar and temperature up to 60°C.
360° rotatable push-in fitting for flexible tubing connection. Knurled screw with lock nut provides adjustment security. Integrated non-return valve prevents reverse flow. Compliant with RoHS environmental standards.
Choose the Festo LRL-1/8-QS-4 flow regulator for reliable pneumatic pressure regulation in industrial, laboratory, construction, and manufacturing applications. Browse EnvMart's comprehensive catalogue for other pneumatic connectors and pressure control devices.
Explore more products in our Pneumatic Regulators category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this flow regulator is 9 bar.
This model operates within a temperature range of 0°C to 60°C.
It features an inlet male connection size of 1/8 in G.
The regulator is constructed from reinforced polybutylene terephthalate.
This unit has a QS-4 tube outlet connection type.
It features a knurled screw with a lock nut for secure manual adjustment of the differential pressure.
Yes, it is equipped with an integrated non-return valve to prevent backflow.
Yes, it complies with RoHS standards.
The inlet thread standard is R.
It is designed for use in aerospace, medical, mining, and air compressor applications.
The 360° rotatable push-in connector allows for versatile installation configurations with tubing sizes from 4mm to 12mm.
The specific dimensions and weight are not provided in the available information.
