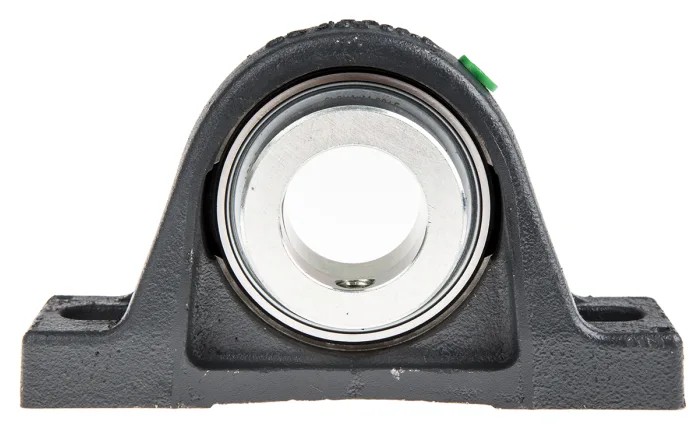

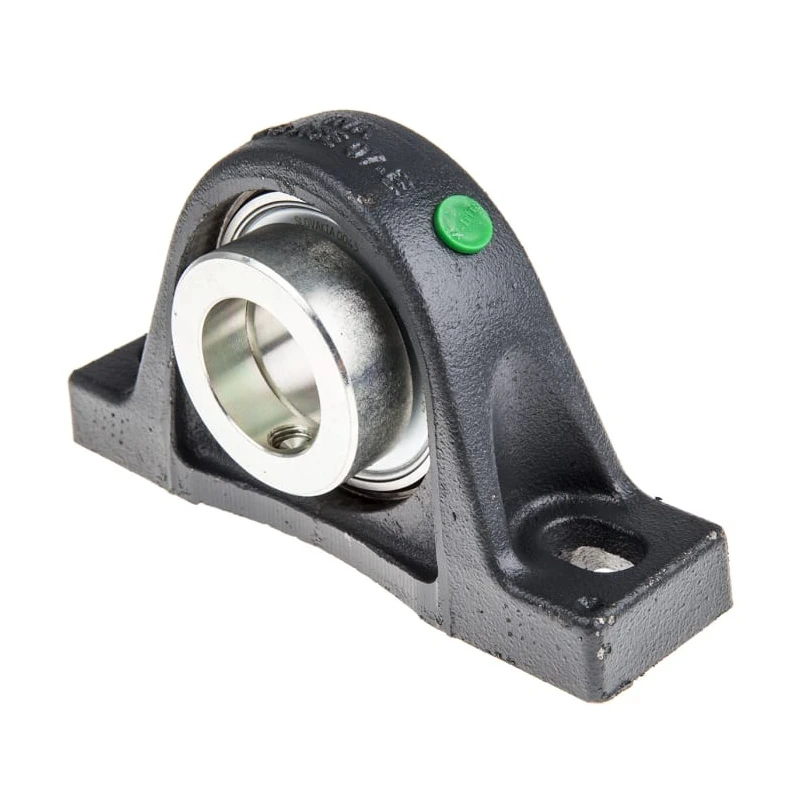

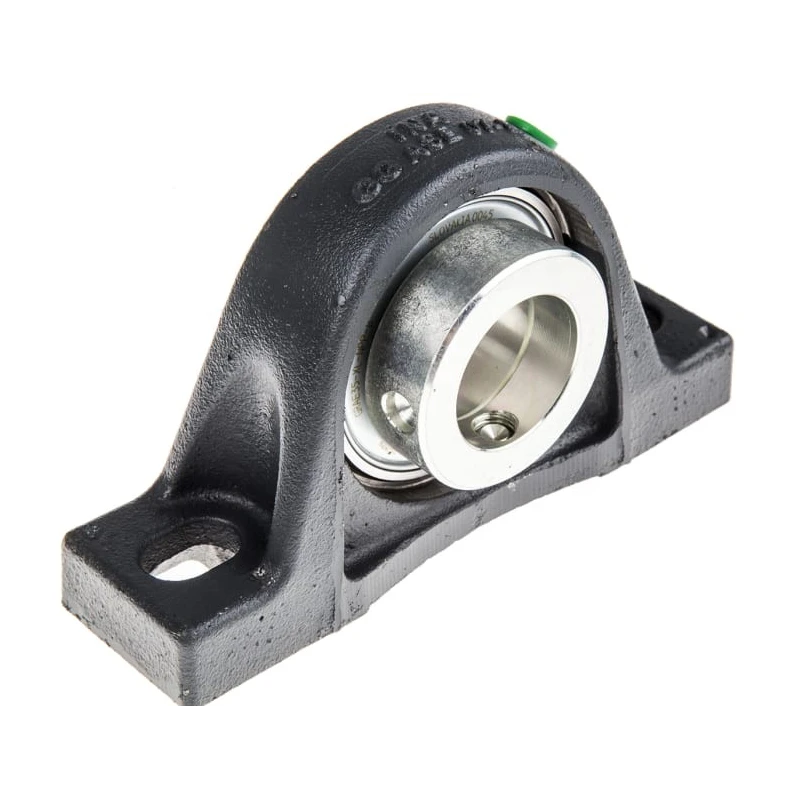

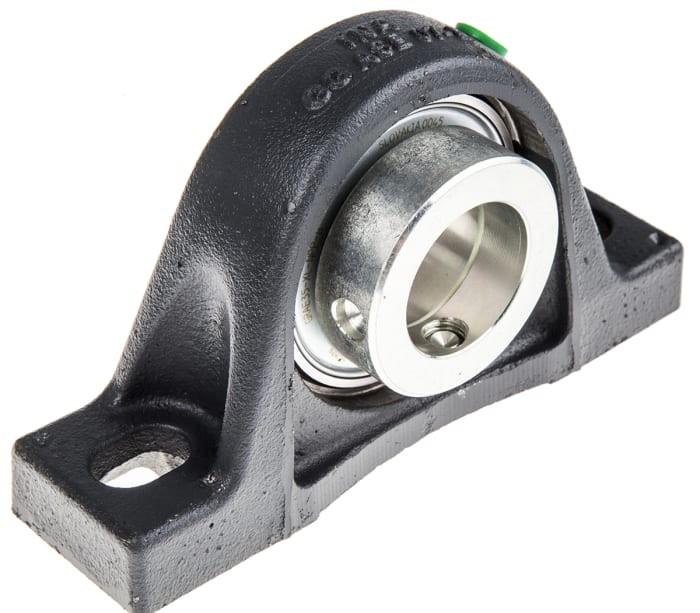

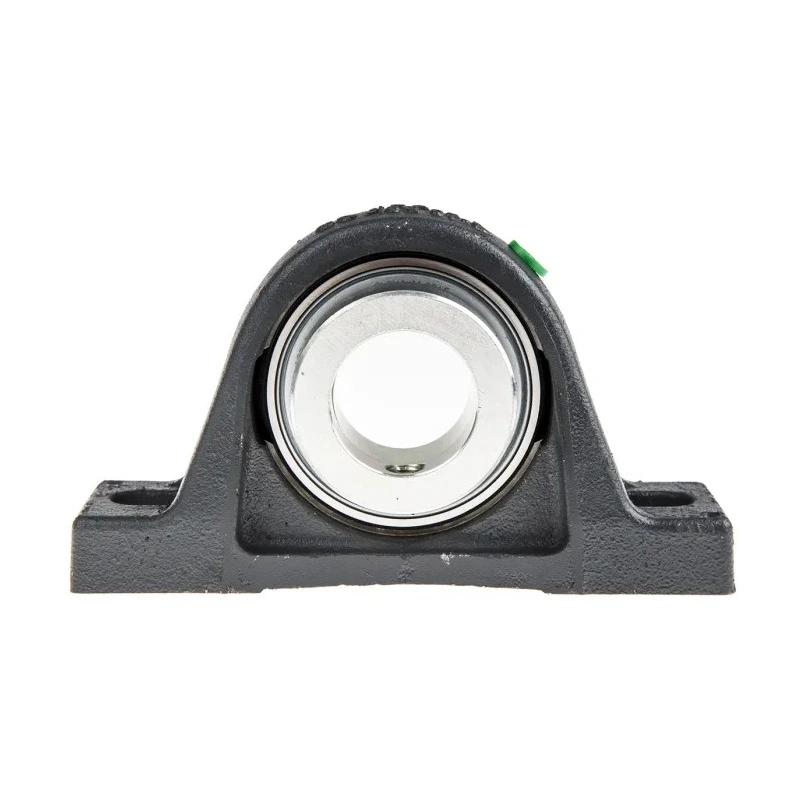

INA Plummer Block House Cast Iron 35 mm ID PASE35-XL-N

Free Delivery in India | Lowest Global Shipping Charges

INA Plummer Block House Cast Iron 35 mm ID PASE35-XL-N



Category Plummer Blocks & Pillow Blocks Brand INA Condition New

Specifications

Country of Origin	India
Brand	INA
Material	Cast Iron
Height	93mm
Length	163mm
Model	PASE35-XL-N
Depth	45mm
Series	PASE
Inside Diameter	35mm
Better World Claim	Extended Product Life, Saves Energy
Mount Hole Size	21 mm
Mount Hole Centre-to-Centre	126mm
Centre Height	47.6mm

Key Features

The plummer block is designed with an inside diameter of 35 mm for shaft accommodation.
It features a mount hole size of 21 mm ensuring secure installation.
Its overall length is 163 mm, depth is 45 mm, and height is 93 mm for robust mounting.
The mount hole centre-to-centre distance is 126 mm for precise fitment.
Constructed from cast iron, it ensures strength and longevity in industrial applications.
This plummer block is ready-to-fit with matched INA radial insert ball bearings for optimal performance.
The bearing housing compensates for static angular misalignment by spherical surface and concave bore design.
The product supports extended life and energy saving, aligned with environmental sustainability goals.

Product Description

INA PASE35-XL-N Plummer Block House 35 mm ID is a cast iron housing unit designed for rotary bearing and housing applications, with a centre height of 47.6 mm, length of 163 mm, and depth of 45 mm. It is suitable for use in industrial environments requiring reliable shaft support and bearing alignment.

This plummer block is fitted with INA radial insert ball bearings matched precisely to the housing to ensure long-term function and reliability under varying operating conditions. The spherical outside surface of the bearing outer ring combined with the concave housing bore allows the housing unit to compensate for static angular misalignment of the shaft, thereby enhancing operational stability.

Designed with a mount hole size of 21 mm and mount hole centre-to-centre distance of 126 mm, it ensures secure and accurate mounting. The height of 93 mm provides ample support. Made from durable cast iron, this housing resists wear and extends product life, promoting energy savings as part of INA’s Better World initiative.

This plummer block is suitable for various industrial sectors including manufacturing, mechanical machinery maintenance, fluid power systems, and general industrial tools applications. It supports enhanced equipment uptime and efficient transmission of rotary motion.

The plummer block accommodates 35 mm diameter shafts for effective rotary bearing support. Its robust cast iron construction is built for longevity and heavy-duty operation. Mounting holes sized at 21 mm facilitate secure installation in industrial setups.

The centre height of 47.6 mm ensures proper alignment with machinery components. Mount hole centre-to-centre distance of 126 mm provides stability during operation. Overall size dimensions (length 163 mm, depth 45 mm, height 93 mm) suit a range of mechanical applications.

Suitable for compensating angular misalignments to maintain bearing and shaft integrity. Explore the full range of INA plummer block housing units and bearing solutions at EnvMart to find reliable components for your industrial needs.
