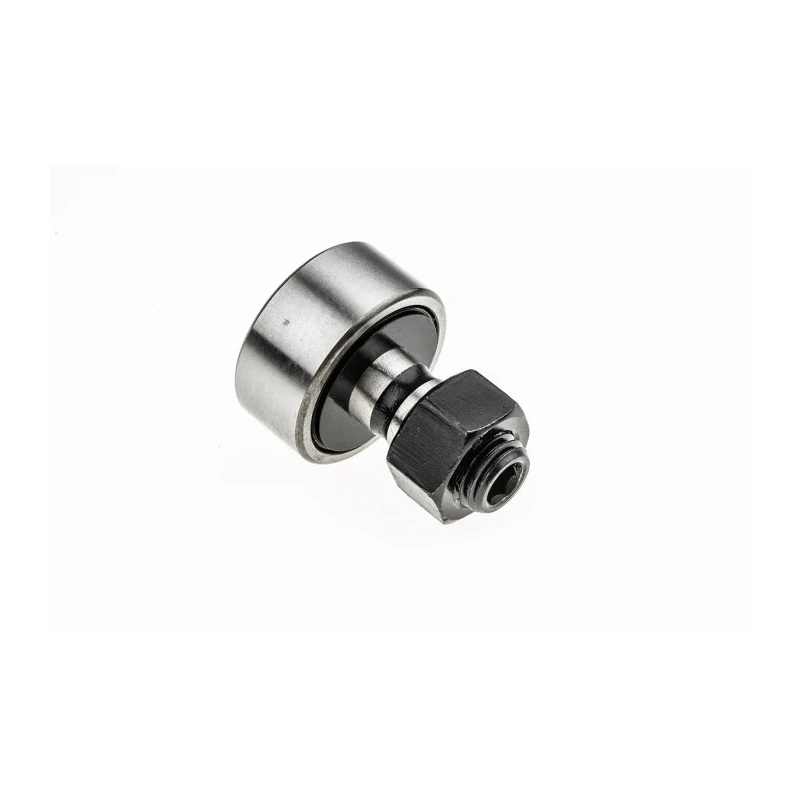

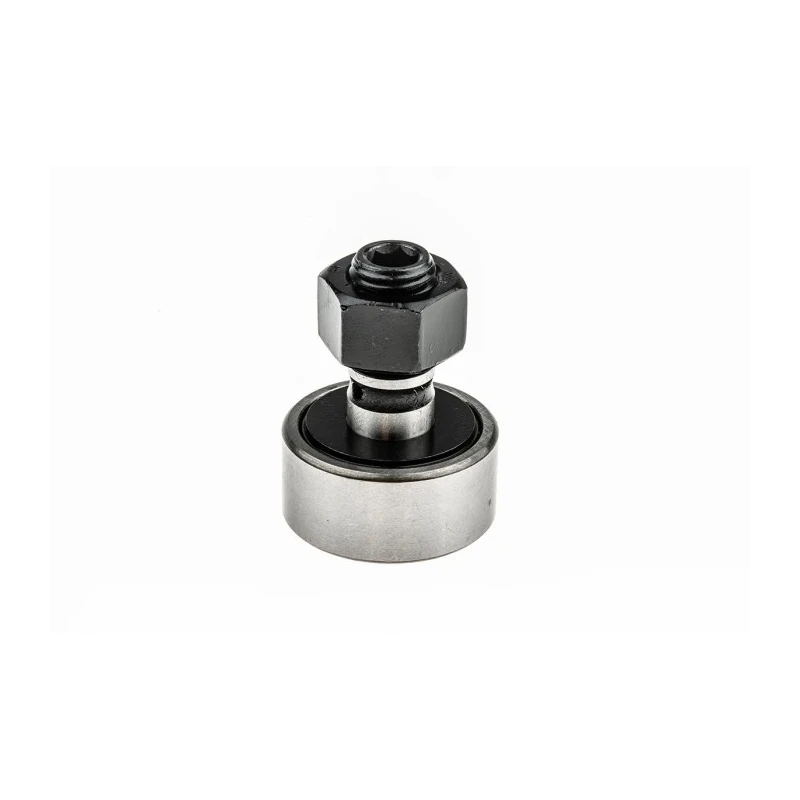

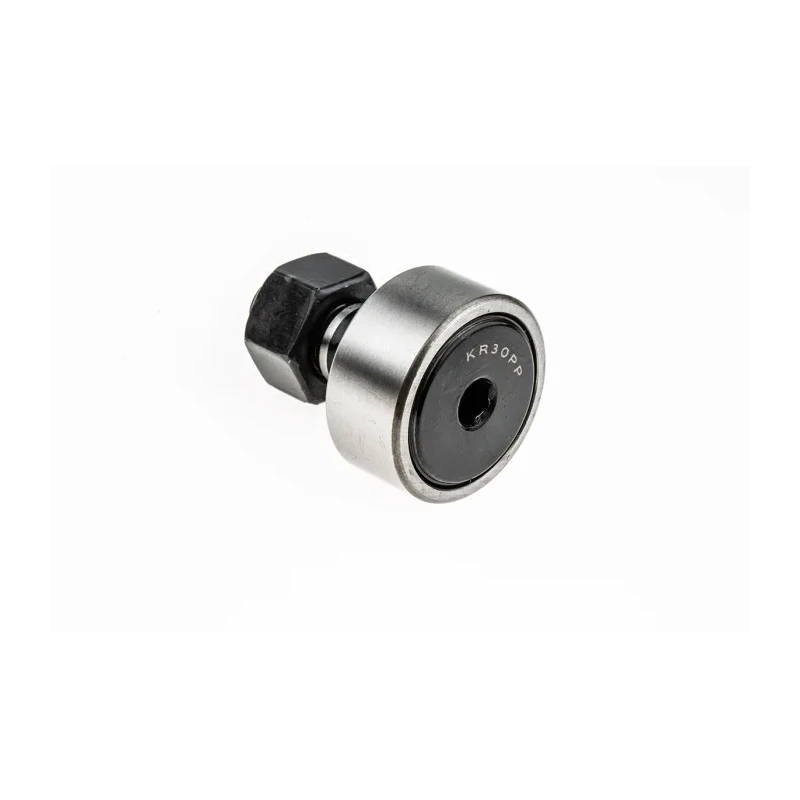

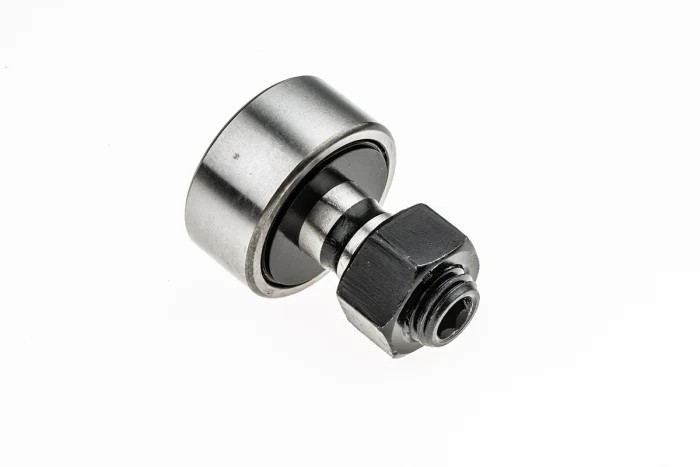

RS PRO Stud Cam Follower 12mm Bore Diameter, 30mm Roller Diameter, Dynamic Load 8100N, Static Load 9700N 471-348

RS PRO 471-348 stud cam follower is a precision mechanical component designed for demanding industrial environments. It features a 12 mm bore diameter and a 30 mm roller diameter, making it compatible with standard machine shafts and built to support heavy-duty applications.

The cam follower has a robust stud type design with a roller length of 40 mm and is equipped with a two O-ring seal system that prevents contaminants such as dirt and grease from entering the bearing area, thereby extending its operational life. It operates efficiently within a temperature range of -30°C to +100°C, making it suitable for diverse industrial conditions.

It possesses a static load rating of 9700 N and a dynamic load rating of 8100 N, allowing it to withstand substantial forces both when stationary and under motion. Typical use cases include acting as pressure rollers, guide rollers, or eccentric rollers on surfaces like ramps, cams, and slideways. This cam follower is widely employed in sectors such as industrial robotics and aerospace, where precision and durability are critical.

The stud cam follower facilitates smooth mechanical movement and reduces friction and distortion in machinery components. It is a reliable choice for engineers seeking high-performance rotary bearings and housing units designed for repetitive and heavy industrial tasks.

Features a stud type with a roller diameter of 30 mm for robust performance. Has a bore diameter of 12 mm suitable for standard machine shafts. Static load rating of 9700 N supports heavy static loads reliably. Dynamic load rating of 8100 N allows handling of dynamic forces effectively.

Includes two O-ring seals to prevent ingress of dirt and grease, enhancing durability. Suitable for a wide temperature range from -30°C to +100°C for versatile industrial use. Ideal for use as pressure rollers, guide rollers, and eccentric rollers in various machines.

Constructed for applications in industrial robotics, aerospace, and other demanding environments. Explore our complete range of rotary bearings and related components at EnvMart for comprehensive industrial solutions.

Explore more products in our Cam Followers category.
