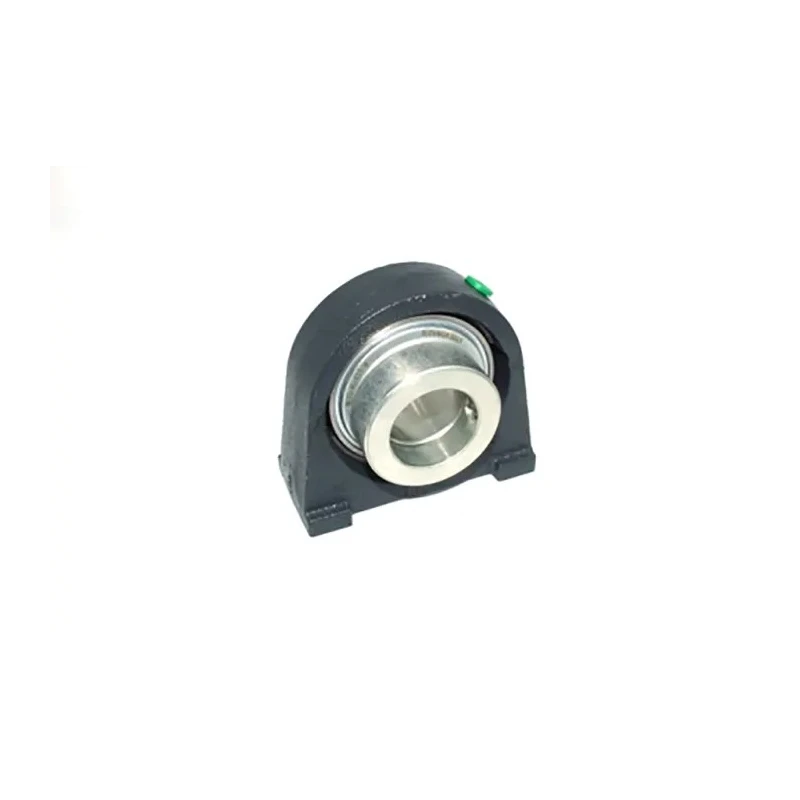

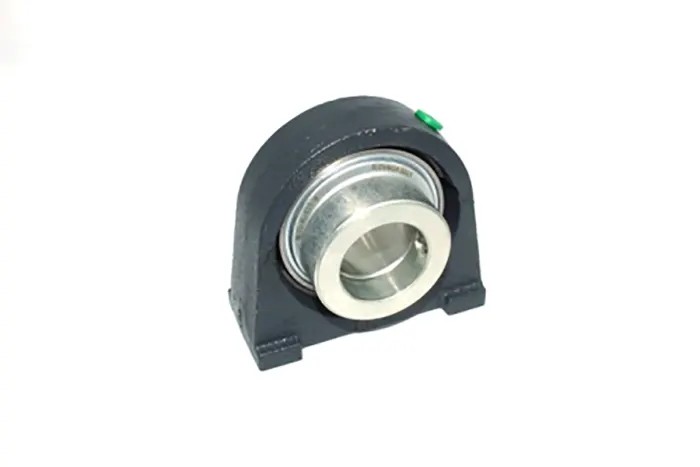

INA Plummer Block House Cast Iron 25 mm ID RSHE25-XL-N



Category Plummer Blocks & Pillow Blocks Brand INA Condition New

Specifications

Country of Origin	India
Brand	INA
Material	Cast Iron
Height	70mm
Length	70mm
Model	RSHE25-XL-N
Depth	44.5mm
Series	RSHE
Inside Diameter	25mm
Better World Claim	Extended Product Life, Saves Energy
Mount Hole Size	M10
Mount Hole Centre-to-Centre	50.8mm
Centre Height	36.5mm

Key Features

The housing unit is made of durable cast iron ensuring long service life.
Suitable for 25 mm diameter shaft with a centre height of 36.5 mm.
Mounting holes are sized M10 with 50.8 mm centre-to-centre distance.
The overall dimensions are 70 mm length, 70 mm height, and 44.5 mm depth.
Designed to compensate static angular misalignment of shafts for reliable operation.
Ideal for locating bearings and also suitable under low load and speed conditions as a non-locating bearing.
The housing units are screw mounted on adjacent constructions, requiring less stringent tolerances.
RSHE series plummer block designed for energy saving and extended product life benefits.

Product Description

INA RSHE25-XL-N Plummer Block House is a cast iron bearing housing designed for a 25 mm inside diameter shaft. This reliable plummer block is part of the RSHE series and offers a centre height of 36.5 mm, length of 70 mm, height of 70 mm, and depth of 44.5 mm. It is equipped with M10 sized mounting holes spaced 50.8 mm centre-to-centre. The unit assembly includes matched INA radial insert ball bearings and housing, ensuring dependable function and reliability under various operating conditions.

The spherical outer surface of the bearing outer ring combined with the concave housing bore allows compensation for static angular misalignment of the shaft. These housing units are primarily used as locating bearings but are also suitable for non-locating bearing roles under low load and speed conditions. The screw mounting system onto adjacent structures allows for lower tolerance requirements on the mounting surfaces.

Manufactured from cast iron, the RSHE series housing units contribute to sustainability with extended product life and energy savings. These durable plummer blocks are commonly used in industrial machinery, mechanical power transmission, manufacturing equipment, and material handling systems. The INA design ensures robustness and precision alignment to support varied mechanical and fluid power applications.

The housing material is cast iron for durability and strength. The unit supports a 25 mm shaft inside diameter. Mount holes sized M10 with 50.8 mm spacing allow secure mounting. Compact dimensions optimize fit with 70 mm length and height, and 44.5 mm depth.

Functionality includes static angular misalignment compensation. Suitable for use as locating or non-locating bearings under various loads. Efficient mounting reduces need for precise surface tolerances. Designed for industrial, manufacturing, and mechanical power transmission use cases.

This INA plummer block house meets industrial standards for rotary bearings and housing units and is a dependable choice for mechanical machinery spares. Environmentally conscious users benefit from its Better World claim of energy savings and extended product life. Browse EnvMart for more INA bearing solutions and plummer block products to optimize your mechanical installations.
