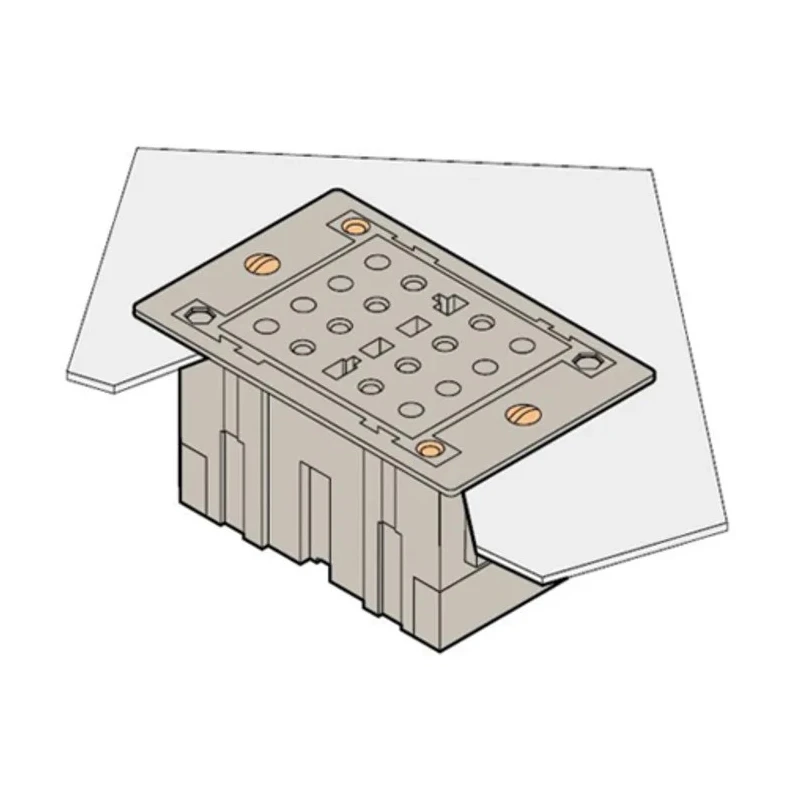

TE Connectivity Mains Test Block 400V 8A Ring Tongue 1SNA166747R0200
Specifications
| Country of Origin | France |
|---|---|
| Voltage | 400V |
| Brand | TE Connectivity |
| Colour | Grey |
| Current | 8A |
| Height | 74mm |
| Model | 1SNA166747R0200 |
| Depth | 57mm |
| Connector Type | Ring Tongue |
| Width | 50mm |
| Body | Polycarbonate |
| Sub Type | Socket |
| Circuit Type | Voltage |
| Maximum Supported Cable | 10mm² |
| Minimum Supported Cable | 0.34mm² |
| Conductive parts | Silver-plated |
Key Features
- Designed to support voltages up to 400 volts for mains testing.
- Rated current capacity is 8 amperes ensuring reliable performance.
- Ring tongue connector type supports secure cable connections.
- Body is made of durable polycarbonate material with silver-plated conductive parts.
- Supports cable sizes ranging from 0.34 mm² to 10 mm² for versatile wiring.
- Color-coded grey body for voltage range identification.
- Make before break contacts provide reliable switching for voltage measurements.
- Made in France with high-quality manufacturing standards.
Product Description
TE Connectivity 1SNA166747R0200 Mains Test Block is a precision electrical component designed for safe and reliable voltage testing in industrial and commercial applications. It operates at a voltage level of 400 volts and supports a current rating of 8 amperes, making it suitable for medium power mains circuits.
The test block features make before break contacts which ensure that the circuit is safely opened and closed during maintenance or measurement, preventing accidental disconnections. The connector type is a ring tongue, allowing secure mechanical fastening of cables ranging from 0.34 mm² to 10 mm² cross-sectional area.
The housing body is constructed from robust polycarbonate, providing excellent electrical insulation and mechanical strength. Conductive parts are silver-plated to enhance conductivity and corrosion resistance, ensuring long operational life.
The device is compact with dimensions of 50 mm width, 74 mm height, and 57 mm depth, and is color-coded grey to indicate its voltage range, following industry standards.
Manufactured in France, this mains test block meets rigorous quality standards, making it suitable for electrical testing, industrial monitoring systems, and power distribution setups.
Designed to support voltages up to 400 volts for mains testing. Rated current capacity is 8 amperes ensuring reliable performance. Ring tongue connector type supports secure cable connections. Body is made of durable polycarbonate material with silver-plated conductive parts.
Supports cable sizes ranging from 0.34 mm² to 10 mm² for versatile wiring. Compact dimensions: width 50 mm, height 74 mm, depth 57 mm. Color-coded grey body for voltage range identification. Make before break contacts provide reliable switching for voltage measurements.
Made in France with high-quality manufacturing standards. Ideal for industrial, electrical test, and power connector applications. Explore more specialized Mains Test Blocks and electrical connectors at EnvMart for your testing and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This mains test block supports a maximum voltage of 400 volts, making it suitable for mains testing applications.
The rated current capacity of this model is 8 amperes, ensuring reliable performance in medium power mains circuits.
It features a ring tongue connector type, which allows for secure mechanical fastening of cables.
This test block supports cable sizes ranging from 0.34 mm² to 10 mm², providing versatility for various wiring needs.
The dimensions of this model are 50 mm in width, 74 mm in height, and 57 mm in depth.
The body is made of durable polycarbonate material, providing excellent electrical insulation and mechanical strength.
It uses make before break contacts, which ensure that the circuit is safely opened and closed during maintenance or measurement.
This mains test block is manufactured in France, adhering to high-quality manufacturing standards.
The body is color-coded grey, which helps in voltage range identification according to industry standards.
The conductive parts are silver-plated, enhancing conductivity and corrosion resistance for long operational life.
It is suitable for electrical testing, industrial monitoring systems, and power distribution setups.
The test block is designed for easy installation with its ring tongue connector, ensuring secure cable connections during setup.
