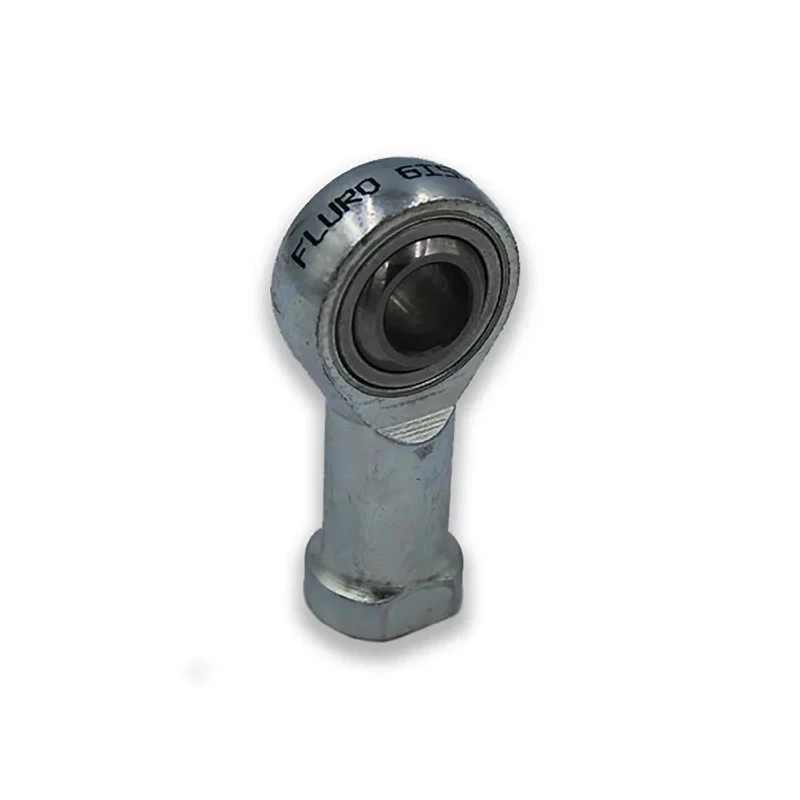

Fluro M20 x 1.5 Female Galvanised Steel Rod End, 20mm Bore, Dynamic Load 78kN GISW20
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Fluro |
| Material | Galvanised Steel |
| Model | GISW20 |
| Overall Width | 102mm |
| Maximum Operating Temperature | 200°C |
| Connection Size | M20 x 1.5 Female |
| Minimum Operating Temperature | -50°C |
| Bore Diameter | 20mm |
| Thread Standard | Metric |
| Static Load Rating | 44kN |
| Thread Direction | Right Hand |
| Dynamic Load Rating | 78kN |
| Connection Gender | Female |
Key Features
- Constructed with galvanised steel for enhanced corrosion resistance.
- Female connection thread size of M20 x 1.5.
- BORE diameter of 20mm suitable for metric applications.
- Dynamic load rating of 78 kN and static load rating of 44 kN for robustness.
- Right hand thread direction conforming to metric thread standard.
- Operational temperature range from -50°C up to 200°C for versatile use.
- Overall width dimension of 102mm ensuring compatibility with mounting assemblies.
- Equipped with PTFE liner for smooth articulating motion and reduced wear.
Product Description
Fluro GISW20 is a precision-engineered Rod End featuring a M20 x 1.5 female galvanised steel threaded connection with a 20mm bore diameter designed for industrial rotary bearing applications.
Manufactured from high-quality galvanised steel, this rod end offers superior corrosion resistance suitable for demanding environments in mechanical systems, fluid power transmission, and industrial machinery.
This component supports a dynamic load rating of 78 kN and a static load rating of 44 kN, making it reliable for applications subject to high mechanical stresses.
Its PTFE liner significantly reduces friction and wear, enhancing service life and maintaining smooth articulation under varying load conditions. The right hand metric thread direction and overall width of 102mm provide precise installation compatibility.
Operating temperature range from -50°C to 200°C allows use in diverse industrial settings, including heavy machinery, agricultural equipment, and construction applications. Designed and manufactured in Germany, the Fluro GISW20 model assures adherence to rigorous quality and durability standards.
Constructed with galvanised steel for enhanced corrosion resistance. Female M20 x 1.5 connection size ensuring standardized fitment. 20mm bore diameter compatible with metric shaft systems. Dynamic load capacity of 78 kiloNewtons for heavy-duty use.
Static load capacity of 44 kiloNewtons providing steady structural support. Right hand thread orientation following metric thread standards. Operating temperatures between -50°C and 200°C tolerating harsh environments. Overall width of 102mm designed for optimal integration.
PTFE liner for wear resistance and smooth operation. This rod end is ideally suited for industrial, automotive, agricultural, and construction applications requiring reliable articulating bearings. Explore more quality Rod Ends and rotary bearing components in our comprehensive industrial catalog at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this rod end is 78 kN, making it suitable for applications subject to high mechanical stresses.
The bore diameter of the Fluro GISW20 is 20mm, which is compatible with metric shaft systems.
This model operates within a temperature range of -50°C to 200°C, allowing for use in diverse industrial settings.
The static load rating of this rod end is 44 kN, providing steady structural support in various applications.
It features a female M20 x 1.5 connection size, ensuring standardized fitment for compatibility with various assemblies.
This rod end is constructed from galvanised steel, which enhances its corrosion resistance for demanding environments.
The overall width of this rod end is 102mm, designed for optimal integration with mounting assemblies.
Yes, it is equipped with a PTFE liner that significantly reduces friction and wear, enhancing service life and maintaining smooth articulation.
This rod end has a right hand thread direction, conforming to metric thread standards.
The Fluro GISW20 is manufactured in Germany, assuring adherence to rigorous quality and durability standards.
This rod end is ideally suited for industrial, automotive, agricultural, and construction applications requiring reliable articulating bearings.
The connection gender of this model is female, designed for compatibility with corresponding male threaded components.
