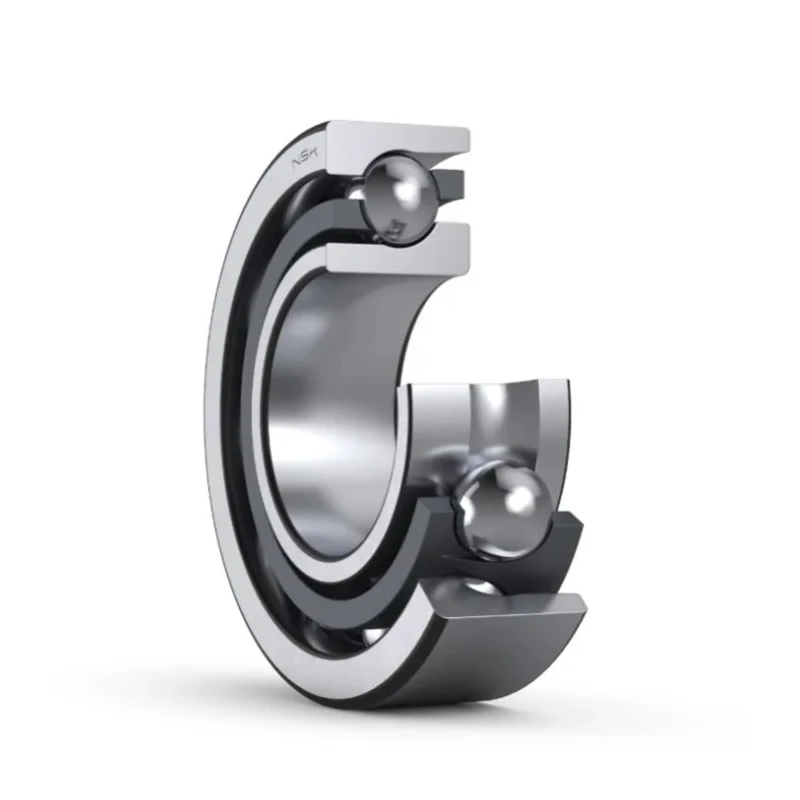

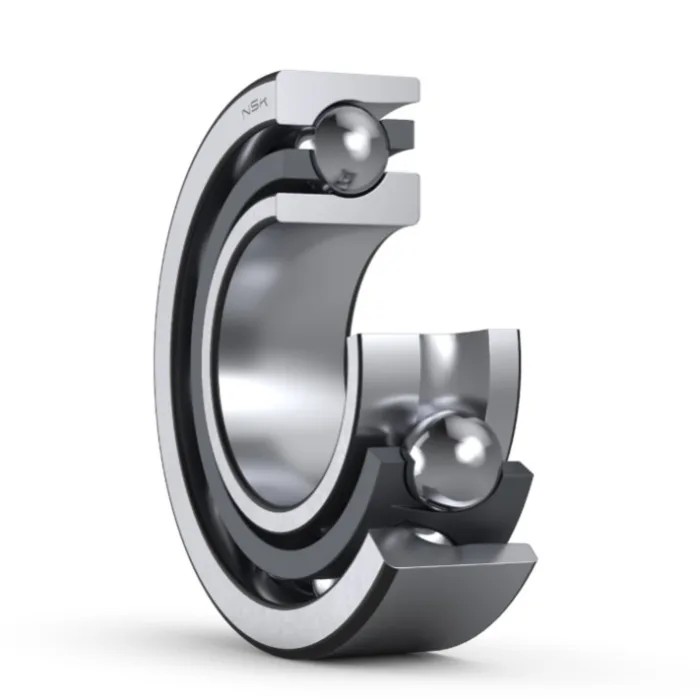

NSK Single Row Angular Contact Ball Bearing 25 mm ID 52 mm OD 15 mm Race Width 7205BEAT85

NSK 7205BEAT85 is a new single row angular contact ball bearing designed for industrial applications where high axial loads occur and precise axial positional control is required. This bearing features a 25 mm inside diameter (ID) and 52 mm outside diameter (OD) with a compact 15 mm race width, making it suitable for compact machinery assemblies.

The bearing employs a polyamide cage which offers durability and low friction performance, combined with steel balls that provide strength and wear resistance. The open end type design allows for ease of installation and maintenance.

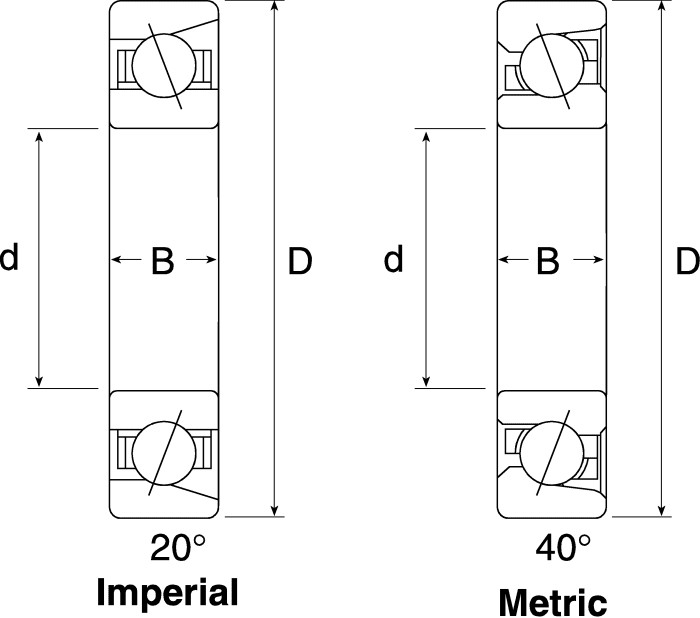

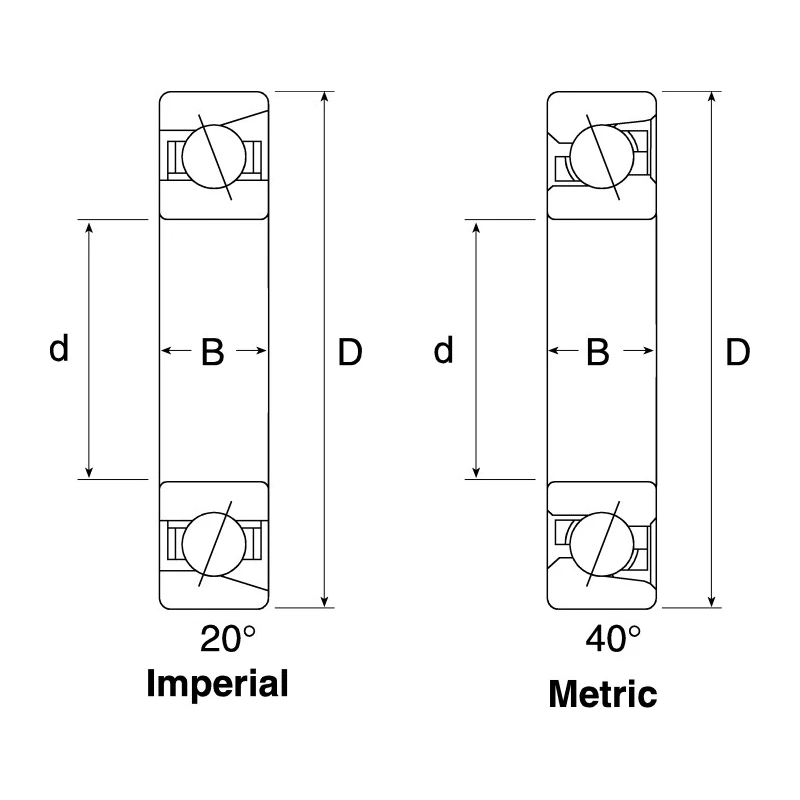

The angular contact design has a 40° contact angle permitting it to accept axial loads in one direction only. To accommodate this, it should be mounted against a matching bearing or a conventional ball bearing when used in assemblies requiring axial load handling from both directions.

With a high limiting speed of 13800 rpm, the NSK 7205BEAT85 bearing is well-suited for high-speed applications in industrial, manufacturing, and mechanical environments. Its static load rating of 10.2 kN and dynamic load rating of 17.6 kN ensure it can endure significant loads during operation.

The bearing conforms to plain race type manufacturing standards and features an internal clearance classified as CN to maintain precision and performance stability across operating conditions.

Common use cases include applications in automation, machinery spindles, motors, pumps, and other equipment requiring reliable rotational components with precise load management. Designed with polyamide cage for durability and reduced friction.

Constructed with steel balls and open end type design. Supports one direction axial loads due to 40° contact angle. High-speed capability with limiting speed up to 13800 rpm. Suitable for industrial applications requiring axial positional control.

Race width of 15 mm for compact fitment. Plain race type for smooth rotation. Static load rating of 10.2 kN and dynamic load rating of 17.6 kN. Internal clearance CN for precision operation. Series 7205 with parallel bore type.
