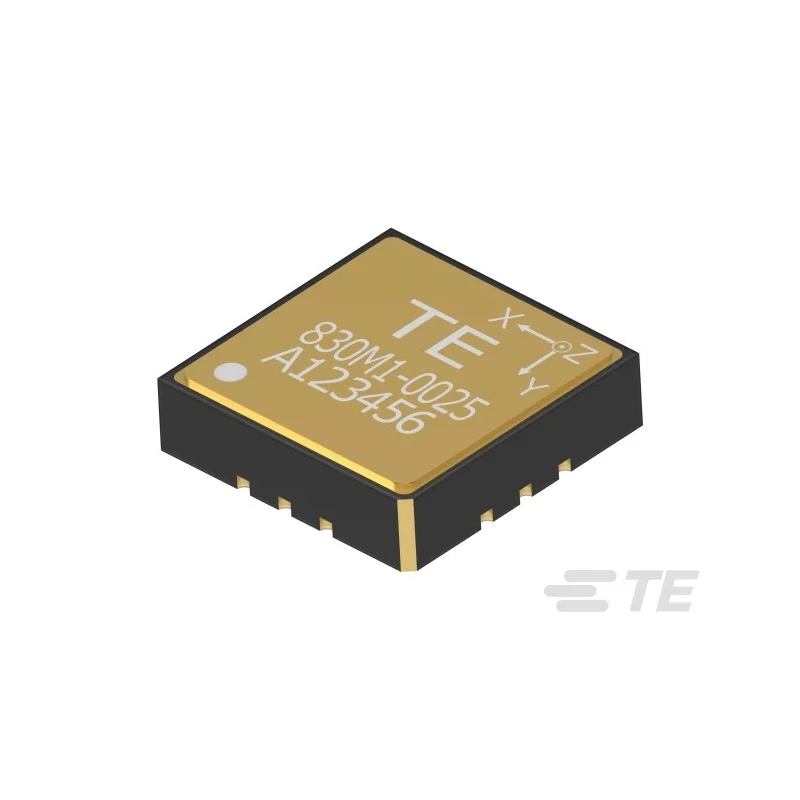

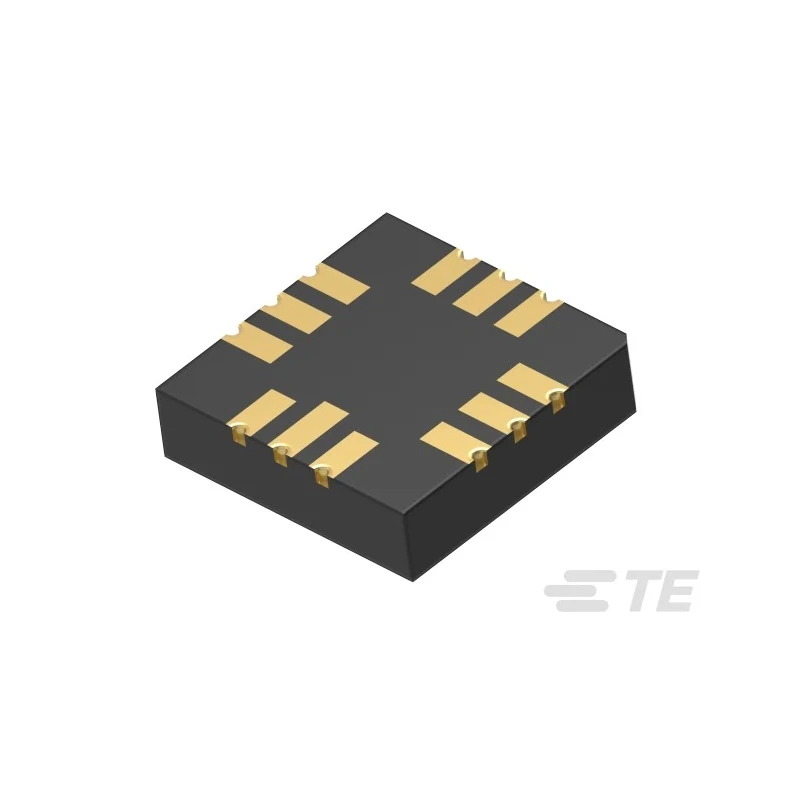

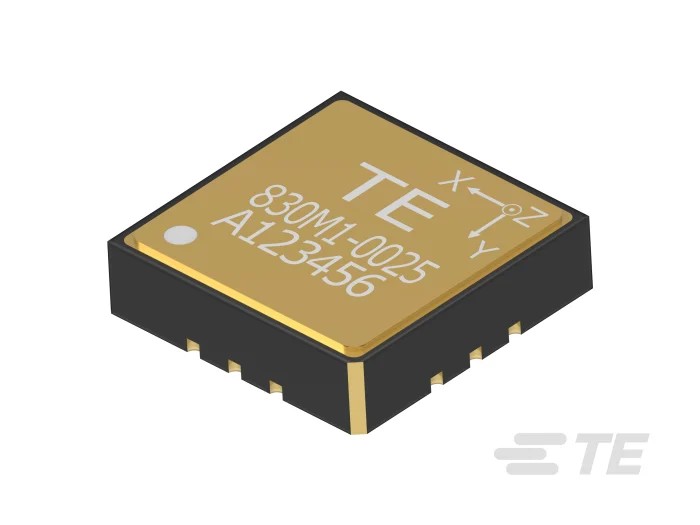

TE Connectivity 3 Axis Surface Accelerometer 1.5V to 5.5V Analog Interface 12-Pin 830M1 Series 20011423-00

TE Connectivity 20011423-00 3 Axis Surface Accelerometer is a high-performance analogue accelerometer designed for embedded condition monitoring and preventive maintenance in industrial and laboratory settings. It operates within a supply voltage range of 1.5V to 5.5V, making it suitable for various low voltage electronics applications. Its compact surface mount design with 12 pins and hermetically sealed LCC package withstands demanding conditions while providing precise three-axis motion measurement.

This accelerometer features a wide bandwidth frequency response up to 15,000Hz and operates reliably across temperatures ranging from -40°C to 125°C, offering excellent environmental resilience. Its sensitivity of 25mV/g combined with low noise electronics delivers superior resolution compared to typical MEMS devices. The 830M1 series device utilizes piezoelectric crystals in shear mode for stable and accurate acceleration sensing.

The device’s dimensions (15.2mm x 15.2mm x 4.2mm) and low supply current of 200μA enable efficient integration on printed circuit boards using standard reflow soldering processes. It is RoHS compliant, ensuring environmentally friendly manufacturing compliance. Being a surface mount accelerometer with analogue output, it is ideal for integration in condition monitoring systems in industrial automation, manufacturing equipment diagnostics, HVAC monitoring, and laboratory instrumentation.

Features low power consumption with 200μA supply current for efficient operation. Operates in temperature range from -40°C to 125°C ensuring durability in harsh environments. Offers wide frequency response from 2Hz to 15,000Hz for precise motion detection.

Compact dimensions of 15.2mm length, 15.2mm width, and 4.2mm height facilitate board mounting. Provides sensitivity of 25mV/g for accurate vibration sensing. Complies with RoHS standards for environmental safety. Incorporates three independent piezo ceramic crystals in shear mode within a hermetic package.

Suitable for industrial, manufacturing, and laboratory condition monitoring applications. 12-pin surface mount design allows reflow soldering on circuit boards.
