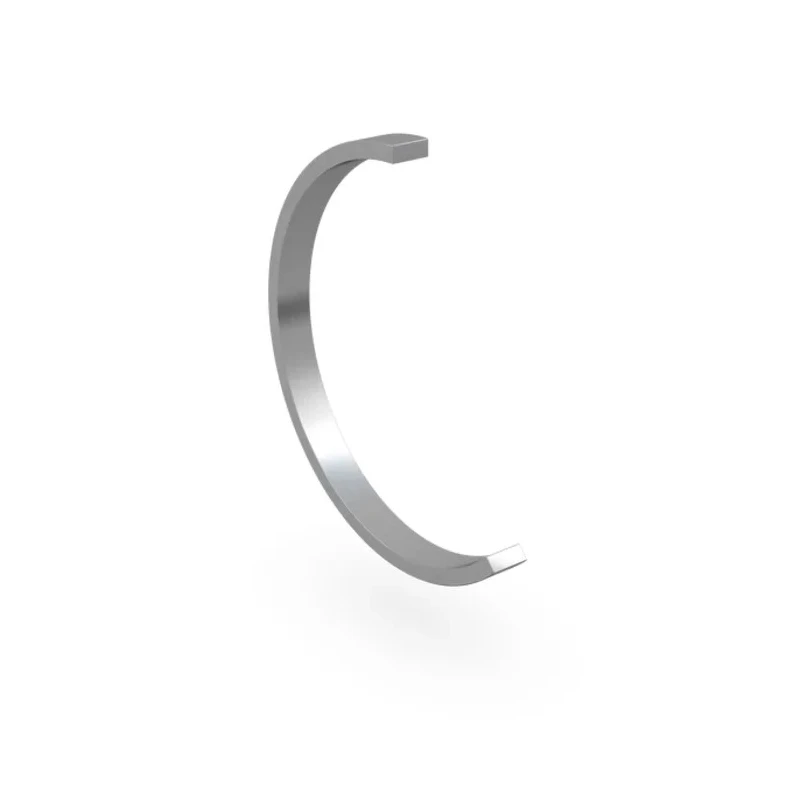

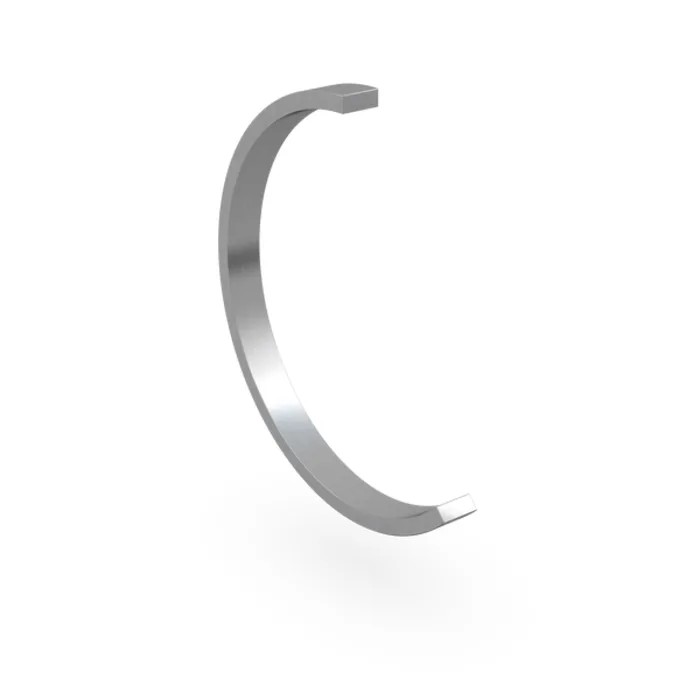

SKF Locating Ring 202 mm Inside Diameter, 140 mm Centre Height, 24 mm Mount Hole Size, 410 mm Length, 14 mm FRB 14/215

SKF FRB 14/215 locating ring is a precision-engineered mechanical component designed for axial location and alignment in rotating assemblies. With a 202 mm inside diameter and 140 mm centre height, it facilitates accurate positioning of shafts in bearing housings and bearing assemblies within industrial automation and mechanical systems.

The 14 mm body depth provides compact axial clearance, while the 410 mm overall length supports extended flange interfaces. The 271 mm external height aids in structured assembly integration. Mount holes sized at 24 mm enable secure fixing to surrounding structures, ensuring reliable shaft restraint.

This locating ring is suitable for various industrial applications, including shaft axial positioning in drivelines, alignment tasks in mechanical transmissions, and integration within electrical motor assemblies requiring precise shaft location. Its robust design and dimensional accuracy make it indispensable in automation and manufacturing environments.

Designed for precise axial positioning of shafts with 202 mm inside diameter. 14 mm depth ensures compact axial clearance in housing assemblies. 410 mm length enhances compatibility with extended flange interfaces. 271 mm height provides proper spatial allowance for mounting.

24 mm mount holes facilitate secure installation on machinery. 140 mm centre height maintains consistent radial alignment.

The component originates from China and complies with industrial quality requirements, although no specific standards or approvals are declared. Its design supports use in mechanical, fluid power, and tool assemblies, contributing to reliable mechanical performance.
