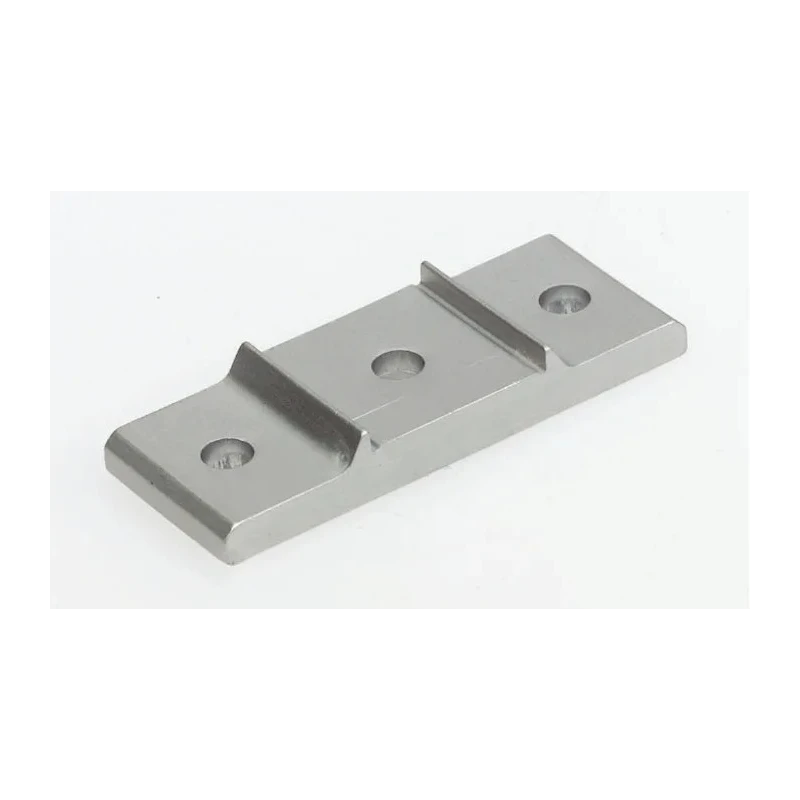

FlexLink Aluminium M6 Mounting Plate Connecting Component for Strut Profiles 22 mm and 44 mm Groove Size 5.5 mm XDFB 22 A

FlexLink XDFB 22 A Aluminium M6 Mounting Plate Connecting Component is engineered for reliable connection of structural elements within mechanical and industrial applications. This mounting plate accommodates strut profiles with widths of 22 mm and 44 mm featuring a groove size of 5.5 mm. The product is meticulously crafted from high-quality aluminium ensuring structural integrity and corrosion resistance.

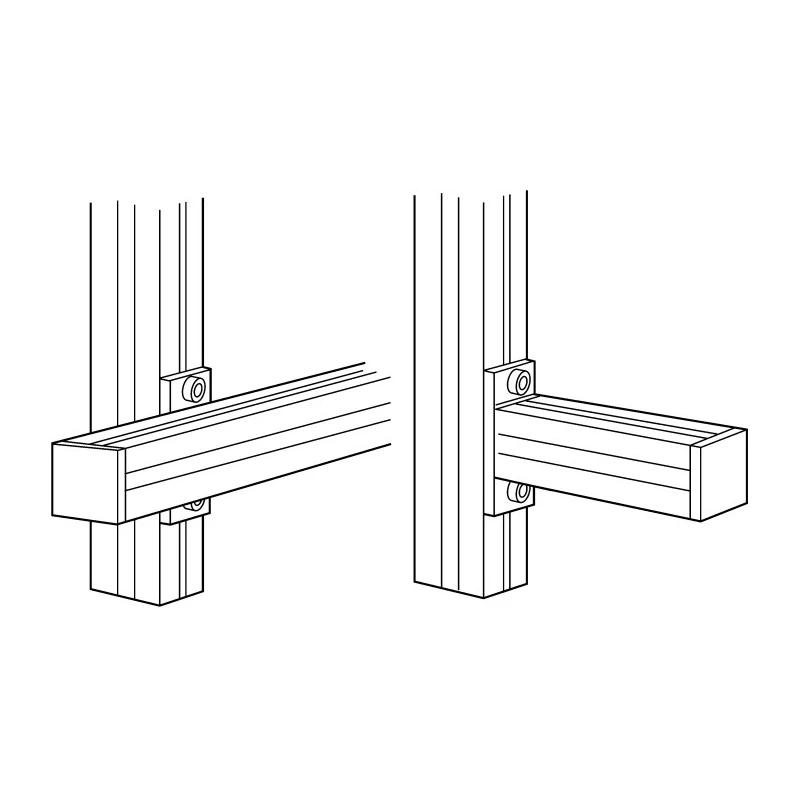

Part of the FlexLink XD product system, the mounting plate allows seamless integration with compatible components enhancing modular assembly efficiency. The M6 thread size facilitates secure fastening when using countersunk screws. Installation requires that beam holes be properly deburred and threaded, allowing the mounting plate to be attached firmly at the beam end and subsequently secured to the T-slot of the beam side.

This connecting component is widely used in various industrial environments including automation, mechanical machinery assemblies, structural system frameworks, and construction setups where robust and precise connections are critical. Manufactured in Sweden, it meets exacting quality standards, ensuring dependable performance in demanding settings.

The mounting plate serves as a fixing and connection element within engineering and structural systems. It is designed to support load-bearing connections and provide mechanical stability. Although fixings are not included, the product's design permits versatile use with various machine mounts and structural systems requiring M6 threaded fasteners.

Choose the FlexLink XDFB 22 A for your structural connection needs where precise compatibility with 22 mm and 44 mm strut profiles and a 5.5 mm groove size is essential. Its aluminium construction offers a lightweight yet strong solution for mechanical and industrial hardware applications.

Constructed from durable aluminium for long-lasting structural support. Compatible with strut profiles measuring 22 mm and 44 mm. Designed to fit groove size of 5.5 mm for secure mounting. Thread size M6 for reliable fastening.

Part of FlexLink's XD product system. Manufactured to high quality standards in Sweden. Used to connect beams end to beam side securely. Fixings not included, requires deburred threaded beam holes for installation.
