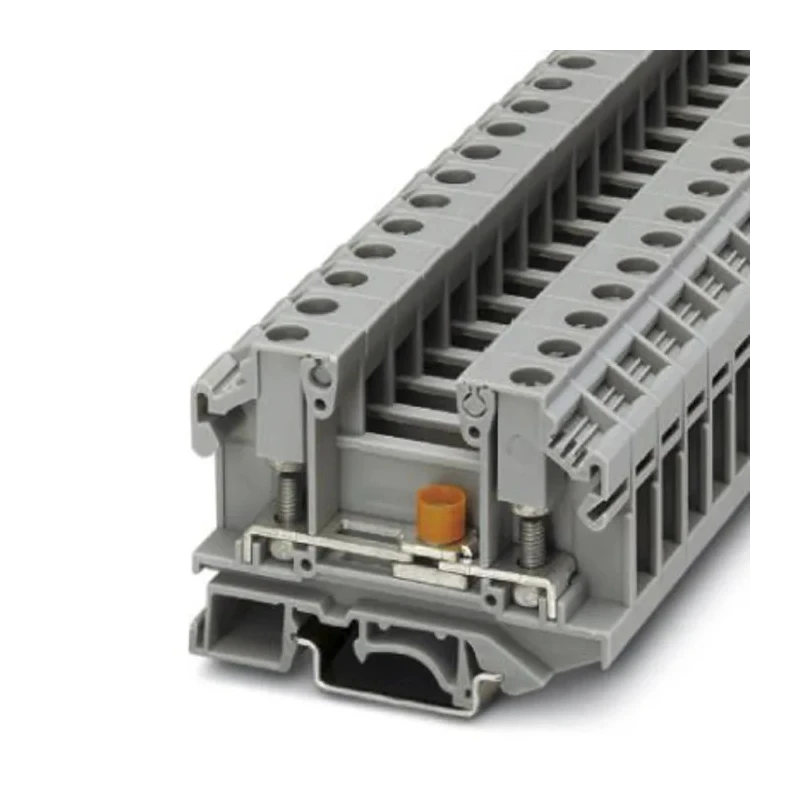

Phoenix Contact P Series Disconnect Terminal Block Bolt OTTA6-T-P 800V Grey, Bolt Termination OTTA6-T-P

Free Delivery in India | Lowest Global Shipping Charges

Phoenix Contact P Series Disconnect Terminal Block Bolt OTTA6-T-P 800V Grey, Bolt Termination OTTA6-T-P

Name: Phoenix Contact P Series Disconnect Terminal Block Bolt OTTA6-T-P 800V Grey, Bolt Termination OTTA6-T-P
Brand: PHOENIX CONTACT
SKU: 410185
Price: 20.22 USD
Availability: InStock



Category Standard Terminal Blocks Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	India
Voltage	800V
Brand	Phoenix Contact
Colour	Grey
Model	OTTA6-T-P
Series	OTTA6-T-P/P
Termination Type	Bolt
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Standards/Approvals	UL, IEC 60947-7-1, EAC, CSA
Cable CSA	0.1, 6mm²

Key Features

Supports cable cross-sectional areas of 0.1 mm² to 6 mm² with M4 bolts and up to 25 mm² with M6 bolts.
Features hinged cover wings for quick and secure connections, which also provide insulation over live parts for shock protection.
Mountable on both top-hat and G profile DIN rails for versatile installation.
Operates safely in temperatures ranging from -40°C to 105°C, suitable for demanding environments.
Complies with UL, IEC 60947-7-1, EAC, and CSA standards ensuring high safety and quality.
Constructed in grey color for easy identification and aesthetic integration in assemblies.
Equipped with spring-loaded spacers to prevent loosening caused by vibration during operation.
Includes marker strip compatibility for easy terminal identification and organization.

Product Description

Phoenix Contact OTTA6-T-P disconnect terminal block bolt operates at 800V and is engineered for robust bolt termination with grey colored housing. Its bolt termination type supports crimp terminal rings with cable cross-sectional areas from 0.1 to 25 mm².

The terminal block features hinged cover wings holding the nut for a quick and secure connection. The wings provide shock prevention by covering live metal parts including insulated ring terminals. These wings can be marked using the compatible marker strip (stock no. 290-1191) for ease of identification in complex wiring harnesses.

Designed for industrial, automation, and electrical control panel use, the OTTA6-T-P offers a universal foot for mounting on both top-hat and G profile DIN rails, enhancing installation flexibility. It operates reliably in wide temperature ranges from -40°C to 105°C making it suitable for harsh environments.

The terminal block complies with key standards including UL, IEC 60947-7-1, EAC, and CSA, ensuring safety and quality in power connector applications. Its integrated spring-loaded spacers secure screws against vibration loosening, guaranteeing enduring connection integrity.

This product is ideal for industrial automation, electrical distribution, machine building, and control panel assembly where robust, reliable terminal blocks are required. Its non-fused design makes it suitable for disconnect applications where circuit protection is managed separately.

Supports cable CSA from 0.1 to 6 mm² (M4 bolts) and up to 25 mm² (M6 bolts). Hinged cover wings enable quick and safe connections with shock protection. Universal mounting foot fits top-hat and G profile DIN rails. Wide operating temperature range from -40°C to 105°C.

Compliant with UL, IEC 60947-7-1, EAC, CSA standards. Spring-loaded spacers prevent loosening from vibration. Non-fused bolt type terminal block. Grey color for easy identification. Marker strip compatible for terminal identification.
