RF Solutions Puck Omni-Directional Telemetry Antenna with SMA Connector, ISM Band, Dual Band 433/868MHz ANT-PUKDB

RF Solutions ANT-PUKDB is a high-quality puck omni-directional telemetry antenna designed for ISM band wireless communication at dual frequencies 433 MHz and 868 MHz. This antenna is suitable for a variety of industrial and electronic applications requiring reliable telemetry signal transmission and reception.

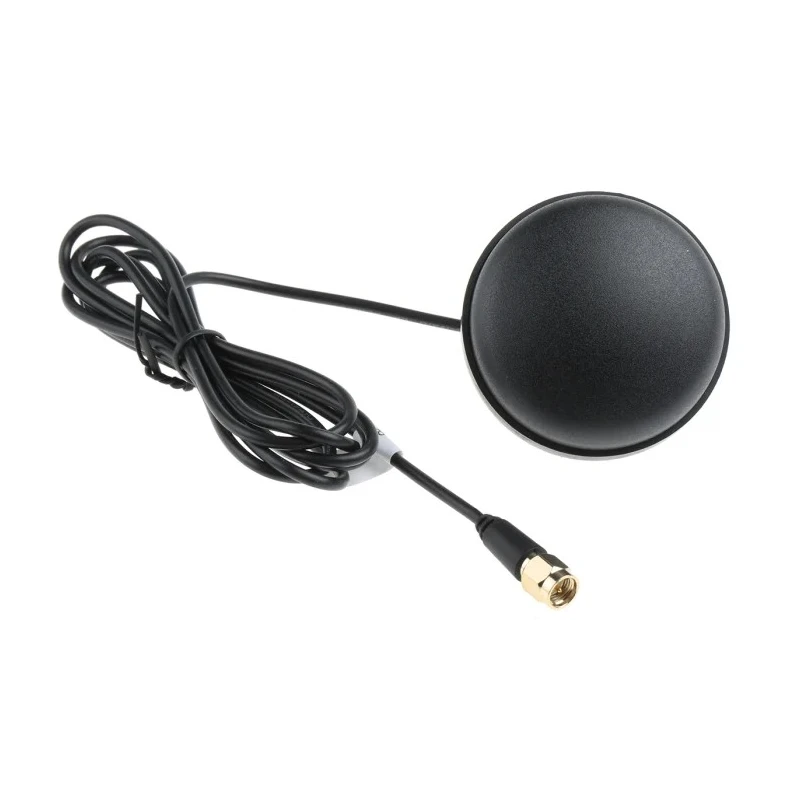

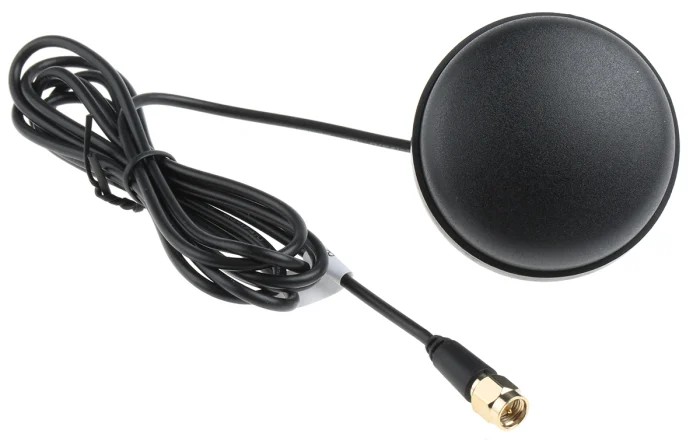

The antenna’s compact puck form factor, crafted with ABS and rubber housing, offers ruggedness and protection against environmental factors. Its low-profile design makes it ideal for installations where space is limited but performance cannot be compromised.

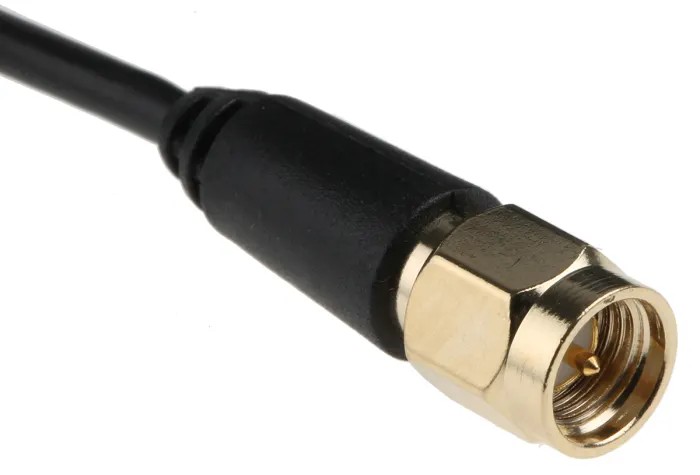

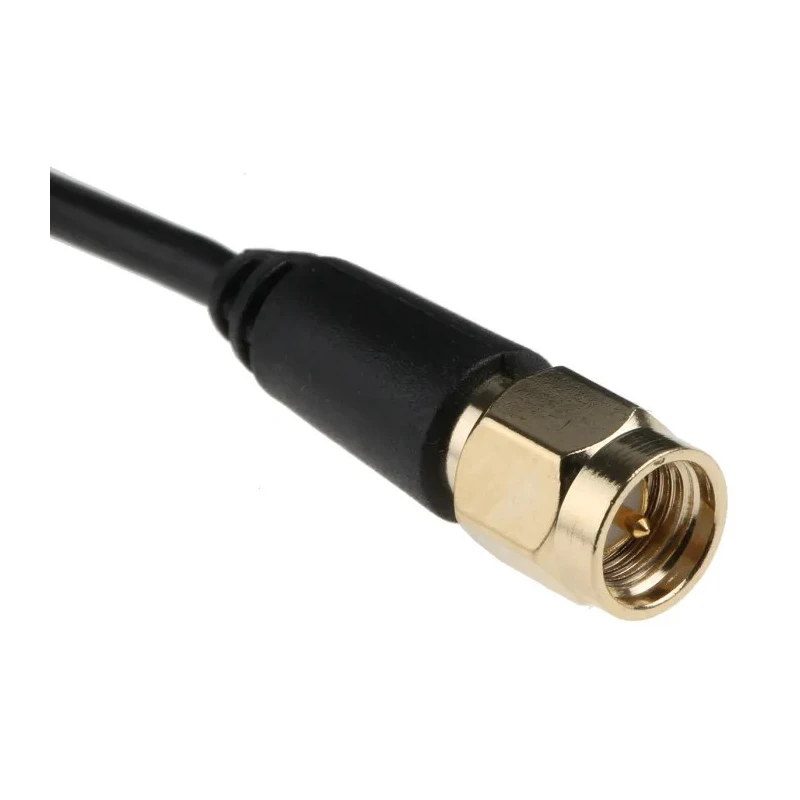

The ANT-PUKDB includes a durable 1.5 metres RG174 coaxial cable terminated with a SMA male connector, facilitating simple and robust interface with telemetry devices. Mechanical mounting is achieved via through-hole bolting and an M14 screw fix connector, ensuring secure attachment in the field.

Operating across a frequency range of 433 MHz to 868 MHz, this antenna delivers a gain of 2 dBi with omni-directional directivity, providing versatile coverage suitable for telemetry networks, remote monitoring, data acquisition, and similar applications. The 50 Ω input impedance matches typical RF systems for optimized signal transfer.

The antenna supports rugged outdoor and indoor use supported by a wide operating temperature range from -35°C to +85°C. Compliance with RoHS, CE, EU, and WEEE standards assures environmental safety and quality compliance.

This antenna serves industrial, manufacturing, telecommunications, automation, and HVAC monitoring needs. Its robust design and dual-band telemetry capability provide dependable wireless link performance in diverse environments.

The antenna features a low profile puck physical form with ABS and rubber housing for rugged durability. It provides 2dBi gain with omni-directional coverage optimal for telemetry signal reception. The SMA male connector and 1.5 metres RG174 cable enable easy installation with secure connections.

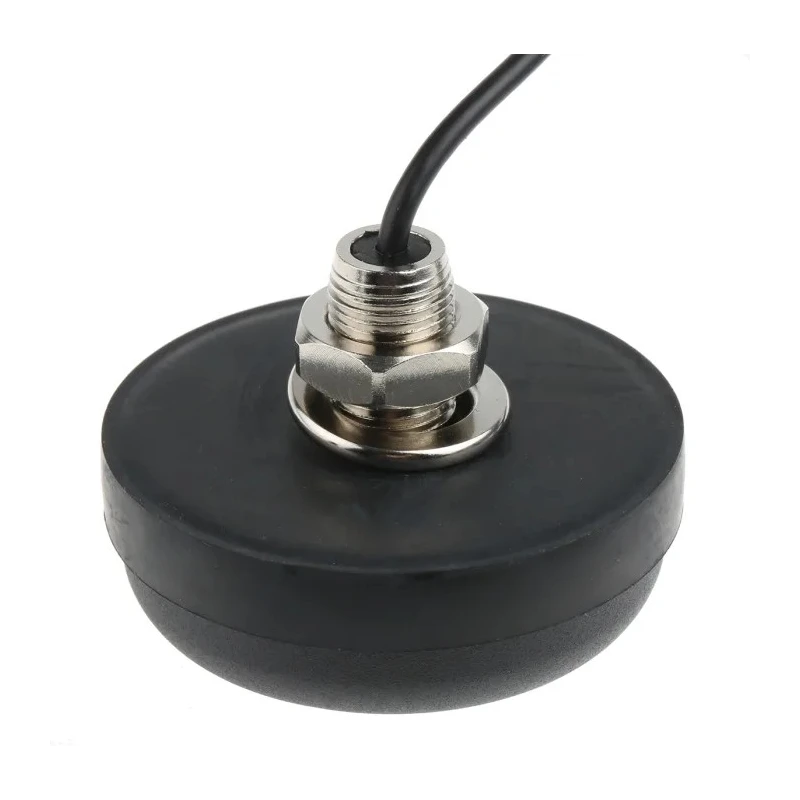

Designed for mounting through bolted holes and screw fix with M14 connector for mechanical stability. Operates reliably within a wide temperature range from - 35 to +85°C for harsh environments. 50 Ω input impedance ensures compatibility with common RF telemetry systems.

The antenna conforms to RoHS, CE, EU, and WEEE environmental and safety standards. Its compact 44.3 mm length enables discreet and space-efficient deployments. Explore more telemetry antennas and RF Solutions products on EnvMart to find complementary components for your telecommunications and monitoring projects.
