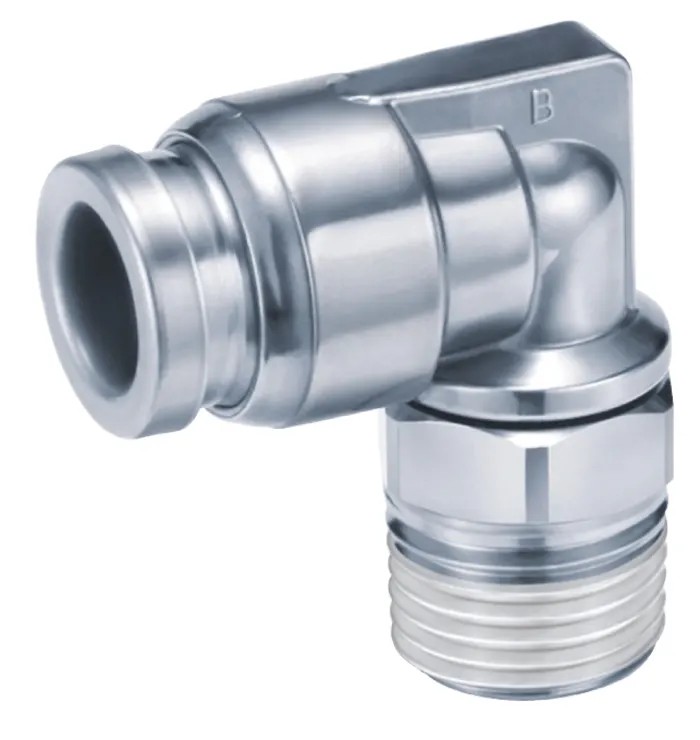

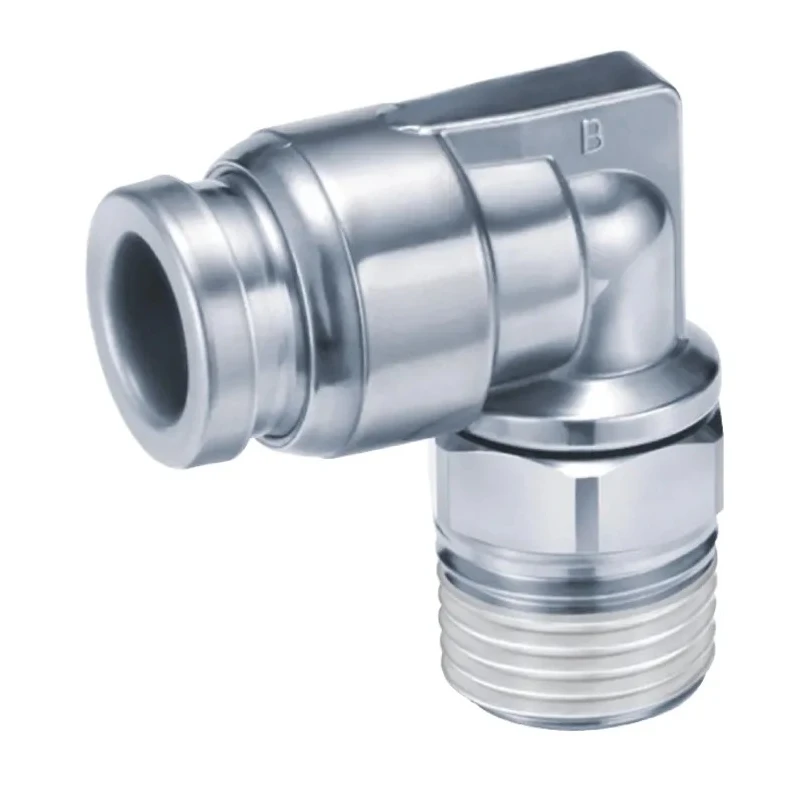

SMC KQG2 Series Stainless Steel Pneumatic Fitting Male Threaded-to-Tube R 1/4 in, 6mm Push-in, 90° Angle

Free Delivery in India | Lowest Global Shipping Charges

SMC KQG2 Series Stainless Steel Pneumatic Fitting Male Threaded-to-Tube R 1/4 in, 6mm Push-in, 90° Angle



Category Pneumatic Fitting Brand SMC Condition New

Specifications

Country of Origin	Japan
Brand	SMC
Material	Stainless Steel
Maximum Operating Pressure	1 Mpa
Model	KQG2
Connection Type	Threaded-to-Tube
Series	KQG2
Maximum Operating Temperature	150°C
Angle	90°
Standards/Approvals	RoHS
Connection Size A	R 1/4 Male
Connection Thread Standard	R
Connection Thread Size	R 1/4 in
Connection Gender	Male
Connection Size B	Push In 6 mm
Tube Connection Type	Push-in
Tube Connection Size	6mm

Key Features

Constructed from SUS316 stainless steel for superior corrosion resistance.
Compact design 30% smaller and 62% lighter than previous KQG models.
Male threaded R 1/4 inch to 6mm push-in tube connection at 90° angle.
Supports operating temperature from -5°C up to 150°C and pressure up to 1 MPa.
Compatible with nylon, polyurethane, and PFA tubing with FKM seals.
Grease-free design suitable for food-grade applications.
RoHS compliant and manufactured in Japan.

Product Description

Featuring SUS316 stainless steel construction, this fitting offers outstanding resistance to corrosion, especially in chloride environments, surpassing grade 304 steel.

The KQG2 series fittings are 30% smaller and 62% lighter than previous models, allowing for compact and lightweight pneumatic system designs. This particular elbow fitting provides a threaded male R 1/4 inch connection on one side and a push-in connection for 6mm tubing on the other, arranged at a 90° angle. This configuration allows versatile installation options optimized for tight spaces.

Designed for industrial and laboratory environments, it supports a maximum operating pressure of 1 MPa and can function reliably in temperatures ranging from -5°C to 150°C. The fitting supports various tubing materials such as nylon, polyurethane, and PFA, making it suitable for applications involving compressed air, water, and steam.

The FKM seals and grease-free design ensure compatibility with food-grade applications as well as environments requiring chemical resistance, although this model is not rated for chemical-resistant usage. RoHS compliance guarantees adherence to environmental and safety standards.

Manufactured in Japan, the KQG2L06-02S fitting combines reliability with performance for fluid power and pneumatic systems in industrial, manufacturing, HVAC, and laboratory settings.

Constructed from SUS316 stainless steel for superior corrosion resistance. Compact size with 30% reduction and 62% less weight versus previous KQG models. Male threaded R 1/4 inch to 6mm push-in tube connection at a 90° elbow angle.

Operating range: -5°C to 150°C, maximum pressure 1 MPa. Compatible with a variety of tubing types and food-grade grease-free sealings. RoHS compliant and manufactured in Japan. Explore more Pneumatic Fittings and accessories to optimize your fluid power system on EnvMart.
