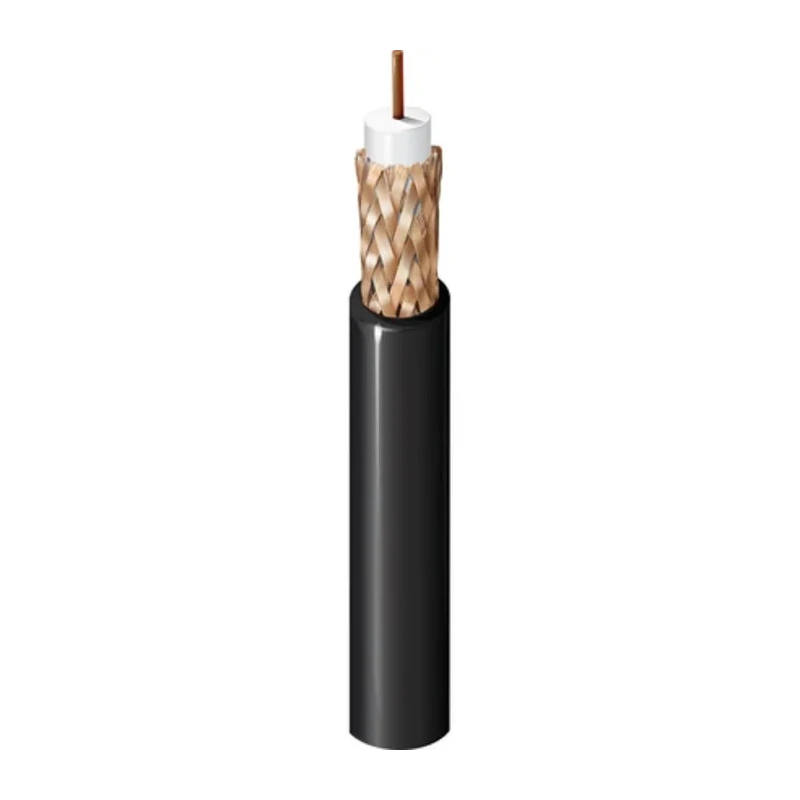

Belden MRG5900 Series RG59 Coaxial SDI Cable 75 Ω, Black, 500 m Length, Unterminated, 4.2kV Voltage MRG5900.00500
Specifications
| Country of Origin | Netherlands |
|---|---|
| Voltage | 4.2kV |
| Brand | Belden |
| Model | MRG5900.00500 |
| Cable Length | 500m |
| Series | MRG5900 |
| Outside diameter | 6.15mm |
| Maximum Operating Temperature | 70°C |
| Conductor Material | Bare Copper Clad Steel |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Polyvinyl Chloride |
| Attenuation | 2.9 dB |
| Standards/Approvals | Euroclass Eca |
| Characteristic Impedance | 75Ω |
| Jacket Colour | Black |
| Fire Behaviour | IEC 60332-1-2 (Low Smoke Zero Halogen) |
| American Wire Gauge | 23AWG |
| Conductor Type | Solid |
| Number of Strands | 1 |
| Core Strands | 1 x 0.58mm |
| Size of Strands | 0.58mm |
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG59 |
| RG59B/U black PVC coaxial cable,500mBrand | NEUTRAL |
| Belden Coaxial Cable, 500m, RG59 Coaxial, UnterminatedBrand | Belden |
Key Features
- The cable features a 75 Ω characteristic impedance for optimal signal integrity.
- Constructed with a solid bare copper clad steel conductor for high conductivity.
- Low smoke zero halogen jacket reduces toxic emissions during fire events.
- Suitable for indoor use with compliance to Euroclass Eca fire safety standards.
- Operates effectively in temperatures from -15°C to 70°C.
- The cable has an outer diameter of 6.15 mm ensuring manageable installation and handling.
- Unterminated cable design offers installation flexibility for custom terminations.
- Attenuation rated at 2.9 dB per 100 m at 5 MHz enables high-quality video transmission.
Product Description
Belden MRG5900.00500 RG59 Coaxial SDI Cable 75 Ω is a high-performance cable designed for SDI video transmission requiring reliable signal integrity and safety. It features a 500 m length and is constructed using a solid bare copper clad steel conductor, which enhances conductivity and reduces signal interference. The cable jacket is made from low smoke zero halogen (LSZH) polyvinyl chloride, limiting hazardous smoke and toxic emissions during fire incidents, making it well-suited for indoor installations.
This RG59 coaxial cable has a characteristic impedance of 75 Ω, an outer diameter of 6.15 mm, and is rated for a voltage of 4.2 kV. It complies with Euroclass Eca fire safety standards and IEC 60332-1-2 specifications for low smoke zero halogen fire behavior, ensuring suitability for professional video broadcast environments, automation systems, and commercial video conferencing setups.
The cable is unterminated, offering flexibility for custom termination according to installation requirements. It has a minimum operating temperature of -15°C and can operate at temperatures up to 70°C, providing reliable performance over a wide temperature range. The attenuation is 2.9 dB per 100 m at 5 MHz frequency, supporting high-quality analogue video signal transmission over extended distances.
The cable features a 75 Ω characteristic impedance for optimal signal integrity. Constructed with a solid bare copper clad steel conductor for high conductivity. Low smoke zero halogen jacket reduces toxic emissions during fire events.
Complies with Euroclass Eca fire safety standards for indoor environments. Operates within a temperature range of -15°C to 70°C. Unterminated design allows custom installation flexibility. 6.15 mm outer diameter ensures manageable installation.
Attenuation of 2.9 dB per 100 m at 5 MHz ensures clear video signal transmission.
This versatile RG59 coaxial cable is ideal for professional broadcast studios, commercial video conferencing systems, and automation applications requiring dependable SDI video transmission with enhanced safety. It is suitable for use in industrial, commercial, and laboratory environments where low smoke emission and fire safety are critical.
Explore our comprehensive range of Coaxial Cables and electrical wiring solutions for all your networking and automation needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a characteristic impedance of 75 Ω, which is optimal for maintaining signal integrity in video transmission applications.
The maximum operating temperature for this cable is 70°C, allowing it to function effectively in various environments.
This unit has a length of 500 meters, providing ample cable for various installation needs.
It is constructed with a solid bare copper clad steel conductor, which enhances conductivity and reduces signal interference.
The attenuation is rated at 2.9 dB per 100 meters at 5 MHz, ensuring high-quality video signal transmission over extended distances.
This cable complies with Euroclass Eca fire safety standards and IEC 60332-1-2 specifications for low smoke zero halogen fire behavior.
The outer diameter of this cable is 6.15 mm, which aids in manageable installation and handling.
This model is unterminated, offering flexibility for custom terminations according to specific installation requirements.
The minimum operating temperature is -15°C, allowing it to function in cooler environments.
The jacket is made from low smoke zero halogen (LSZH) polyvinyl chloride, which reduces toxic emissions during fire incidents.
It is suitable for professional broadcast studios, commercial video conferencing systems, and automation applications requiring dependable SDI video transmission.
The voltage rating for this cable is 4.2 kV, making it suitable for various high-voltage applications.
