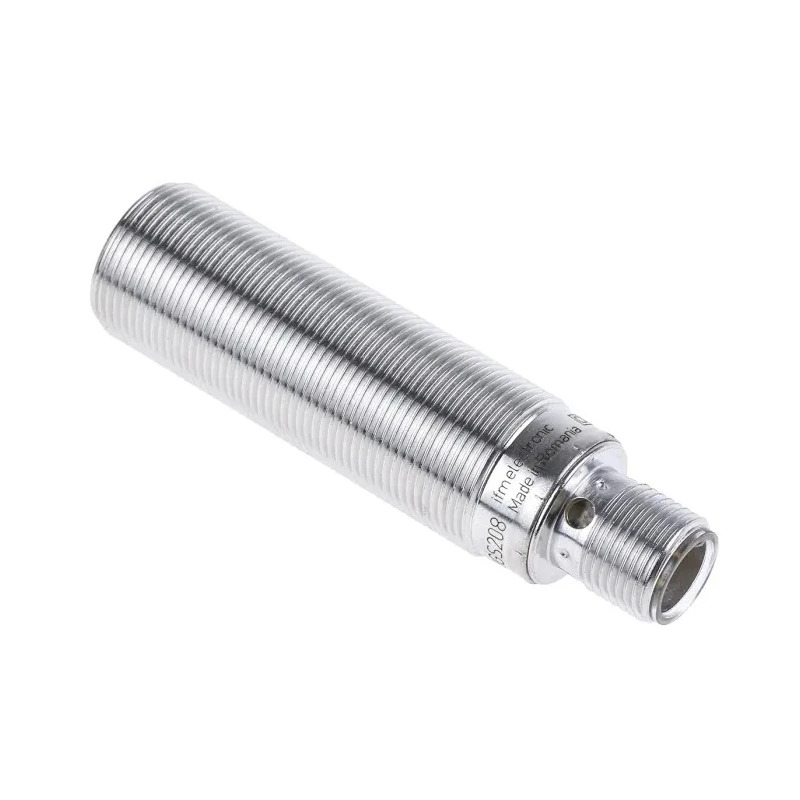

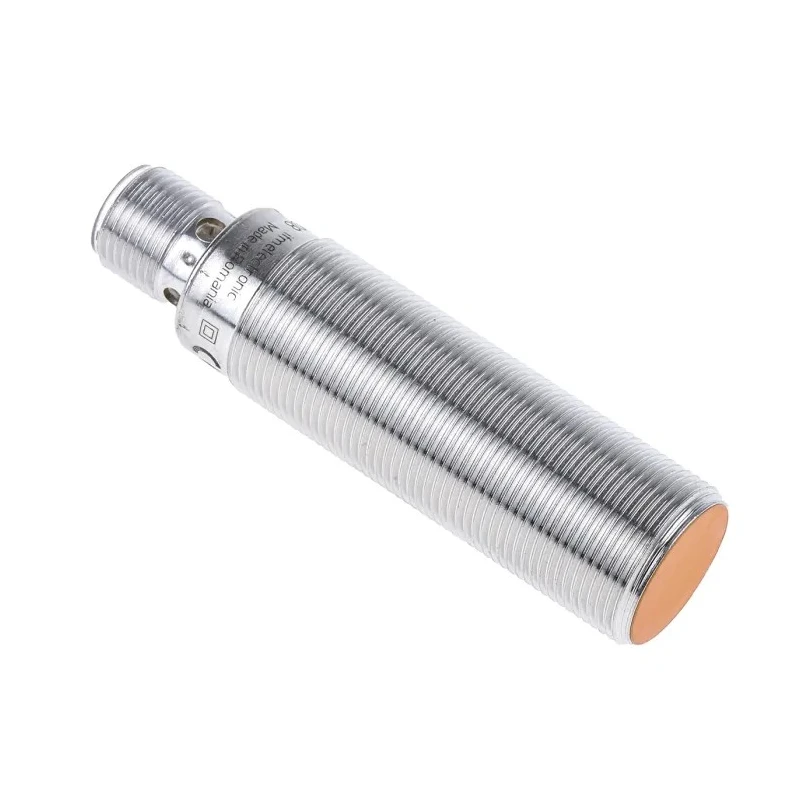

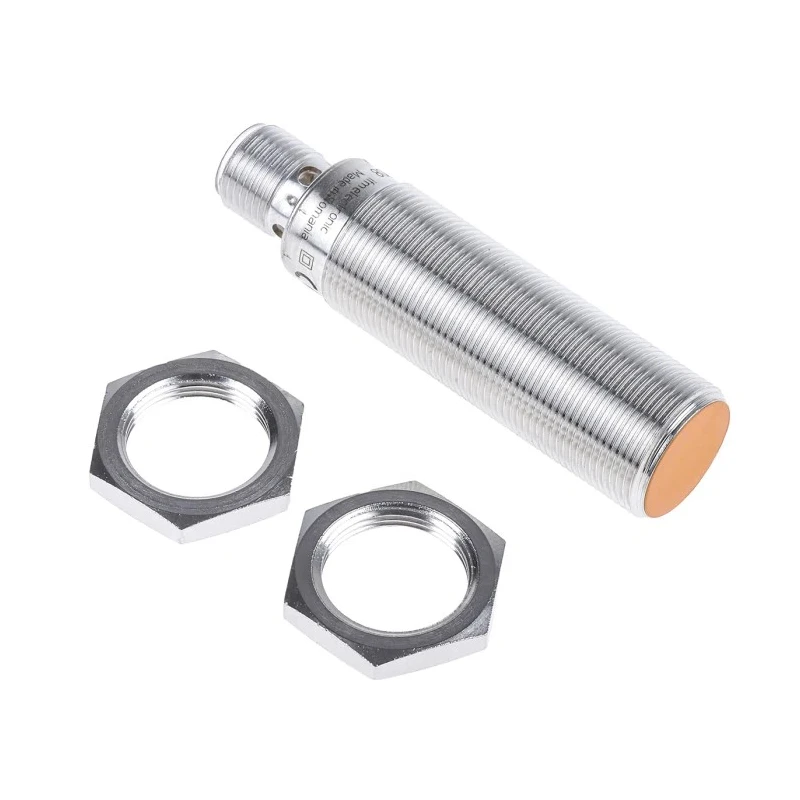

ifm electronic Threaded Barrel Inductive Proximity Sensor M18 x 1 PNP/NPN 3V 8 mm 30 V dc 100mA IGS208
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | ifm electronic |
| Length | 70mm |
| Model | IGS208 |
| IP Rating | IP67 |
| Width | 18mm |
| Mount Type | Flush |
| Housing Material | Bronze Plated Brass |
| Output type | PNP/NPN |
| Maximum Operating Temperature | 70°C |
| Thread Size | M18 x 1 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 100mA |
| Terminal type | Screw |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 400Hz |
| Maximum Supply Voltage | 3V |
| Maximum Detection | 8mm |
| EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 55011 | class B, EN 61000-4-6 |
Key Features
- This sensor operates at a maximum supply voltage of 3V and a maximum DC voltage of 30V dc.
- It detects objects up to a distance of 8 mm, with a maximum switching frequency of 400 Hz.
- The output type supports both PNP and NPN configurations, with a switching current of 100mA.
- The sensor housing is made from bronze plated brass for excellent durability and corrosion resistance.
- It features an IP67 rating ensuring protection against dust and water ingress.
- The mounting type is flush, with a threaded barrel body style measuring 70mm in length and 18mm in width.
- The operating temperature range is from -25°C to 70°C, suitable for industrial environments.
- The sensor includes a shielded design and screw terminal connection for easy installation and reliability.
Product Description
ifm electronic IGS208 is a high-performance Threaded Barrel Inductive Proximity Sensor featuring an M18 x 1 thread size. Operating at 3V supply voltage and 30 V dc maximum voltage, it is ideal for precise detection tasks in factory automation and industrial control systems.
Its robust bronze plated brass housing ensures durability and corrosion resistance, accompanied by an IP67 rating for protection against dust and water ingress. The sensor’s ability to detect objects within 8 mm makes it suitable for close proximity sensing applications.
Equipped with PNP/NPN output types and a switching current of 100mA, it supports high switching frequencies up to 400 Hz with a shielded design enhancing immunity against interference. The sensor uses screw terminals for reliable electrical connections and supports flush mounting to easily integrate into machinery and industrial setups.
Operating in a temperature range between -25°C and 70°C, it withstands harsh industrial environments, making it fit for manufacturing, automation, robotics, HVAC control, and safety systems.
This sensor operates at a maximum supply voltage of 3V and a maximum DC voltage of 30V dc. It detects objects up to a distance of 8 mm, with a maximum switching frequency of 400 Hz. The output type supports both PNP and NPN configurations, with a switching current of 100mA.
The sensor housing is made from bronze plated brass for excellent durability and corrosion resistance. It features an IP67 rating ensuring protection against dust and water ingress. The mounting type is flush, with a threaded barrel body style measuring 70mm in length and 18mm in width.
The operating temperature range is from -25°C to 70°C, suitable for industrial environments. The sensor includes a shielded design and screw terminal connection for easy installation and reliability.
This product is manufactured in Germany and complies with rigorous standards including EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 55011 class B, and EN 61000-4-6, ensuring electromagnetic compatibility and high performance.
Explore more industrial sensor solutions in the Electronics & Electricals category at EnvMart for automation, manufacturing, and control system applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection distance of this sensor is 8 mm.
It operates within a temperature range of -25°C to 70°C.
This model supports both PNP and NPN output types.
The maximum switching frequency is 400 Hz.
The sensor measures 70 mm in length and 18 mm in width.
The maximum supply voltage is 3V.
It uses screw terminals for reliable electrical connections.
The housing is made from bronze plated brass, providing durability and corrosion resistance.
It has an IP67 rating, ensuring protection against dust and water ingress.
This product complies with several standards including EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 55011 class B, and EN 61000-4-6.
The maximum switching current is 100 mA.
This sensor features a flush mounting type with a threaded barrel body style.
