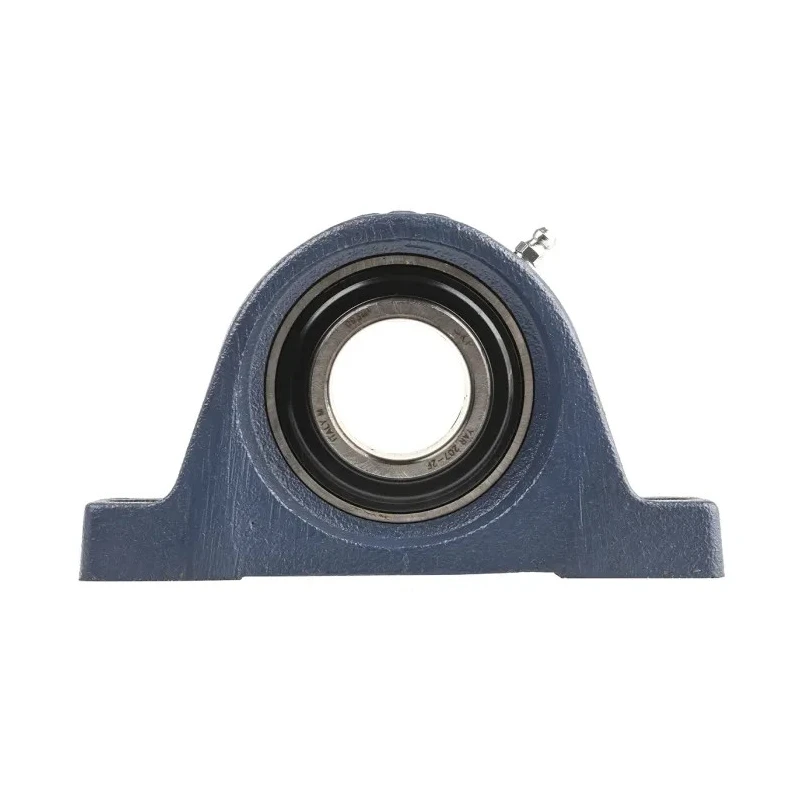

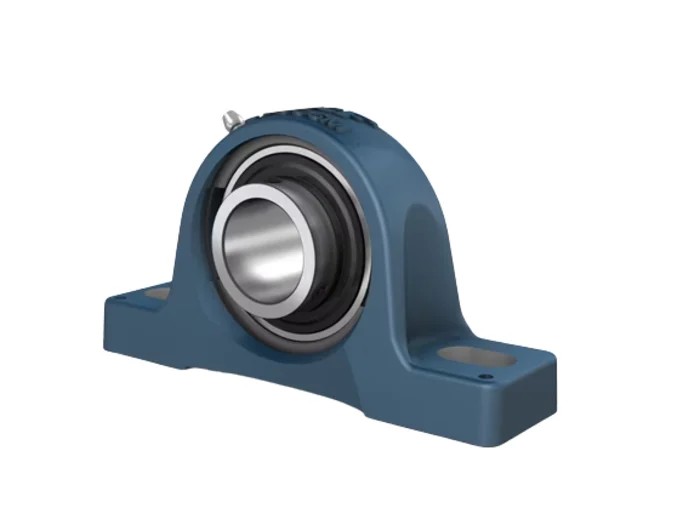

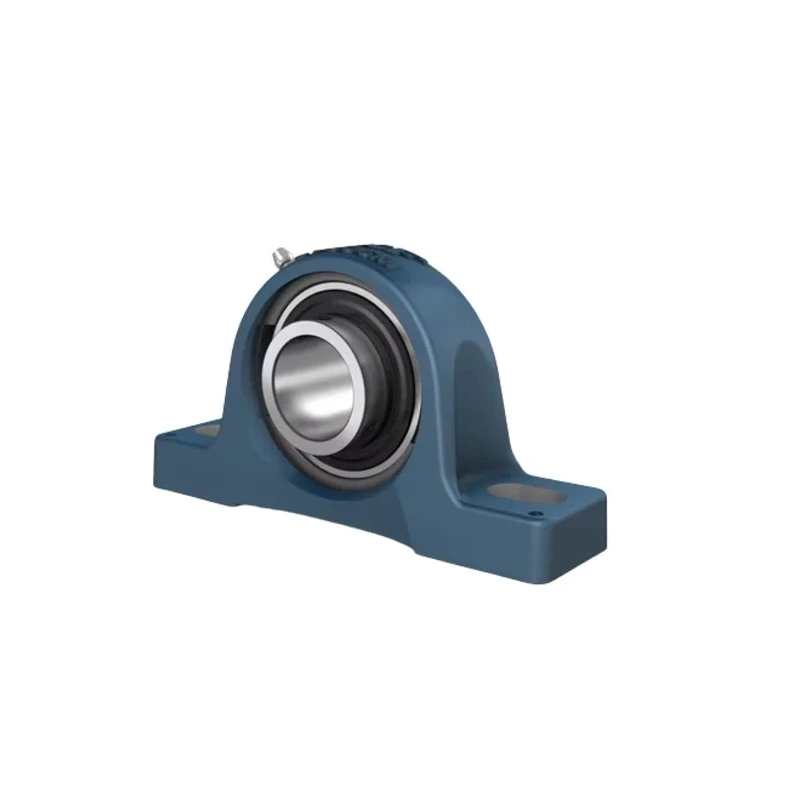

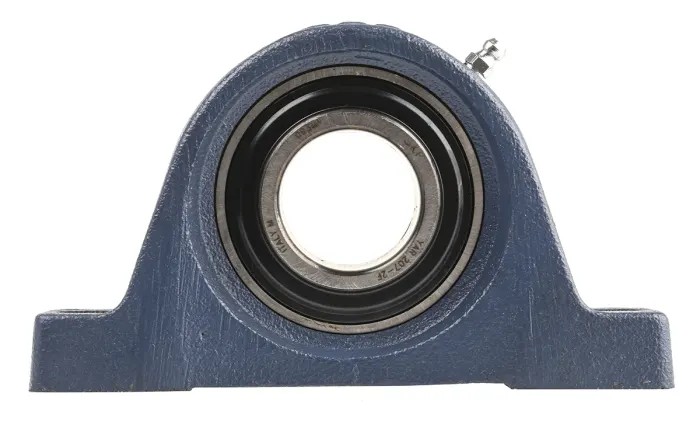

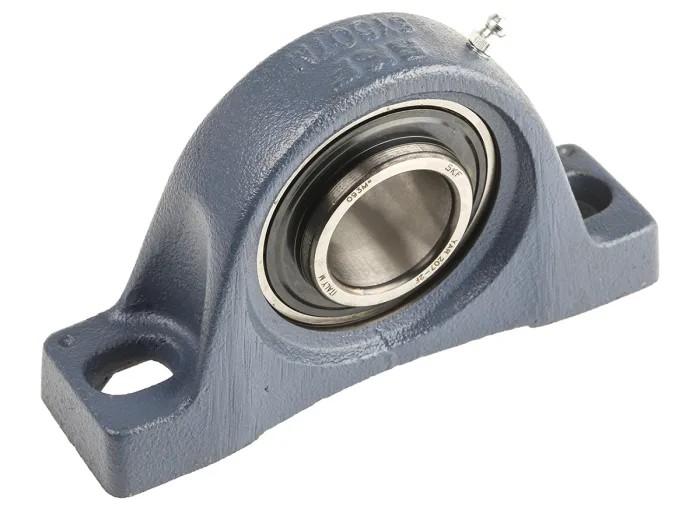

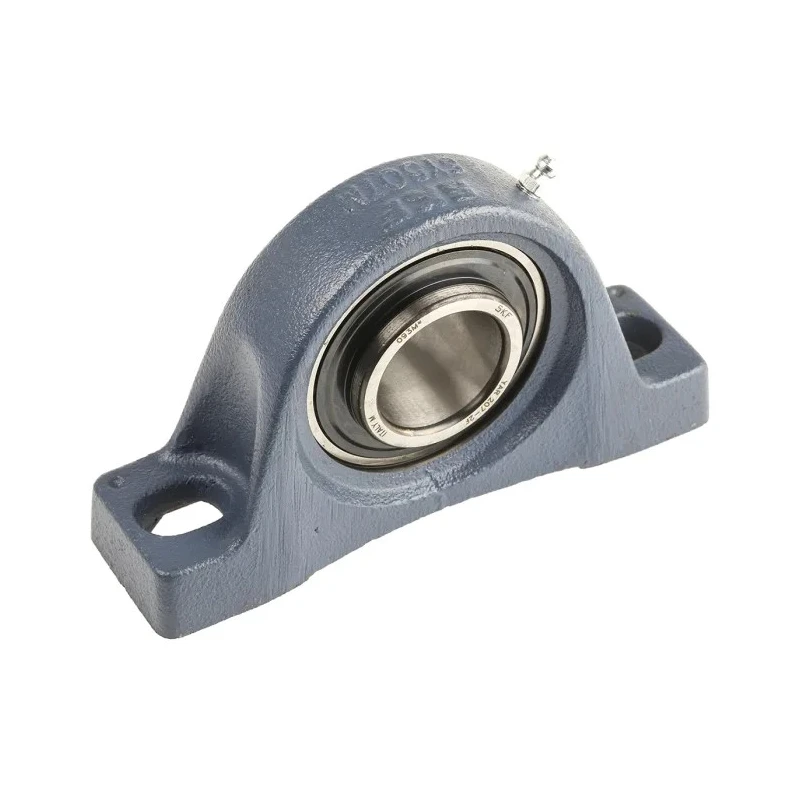

SKF Plummer Block House 35 mm Inside Diameter Cast Iron, Limiting Speed 5300 RPM SY 35 TF

Free Delivery in India | Lowest Global Shipping Charges

SKF Plummer Block House 35 mm Inside Diameter Cast Iron, Limiting Speed 5300 RPM SY 35 TF



Category Plummer Block House Brand SKF Condition New

Specifications

Country of Origin	Italy
Brand	SKF
Material	Cast Iron
Height	93mm
Length	160mm
Model	SY 35 TF
Depth	45mm
Inside Diameter	35mm
Mount Hole Size	12 mm
Mount Hole Centre-to-Centre	126mm
Centre Height	47.6mm
NSK-RHP NP35 R Pillow Block Bearing -, 35 mm IDBrand	NSK-RHP
SKF SYWK 35 YTH Pillow Block Bearing -, 35 mm IDBrand	SKF

Key Features

Constructed from robust cast iron for durability in harsh environments.
Supports shafts with 35 mm inside diameter for compatibility.
Limiting speed of 5300 revolutions per minute enables high-speed applications.
Features two mounting bolt holes spaced 126 mm apart for secure installation.
Includes relubrication hole for easy maintenance and extended service life.
Offers static misalignment tolerance up to 2 degrees for operational flexibility.
Equipped with seals and flingers on both sides to prevent contamination and grime buildup.
Dynamic load rating of 25.5 kN and static load rating of 15.3 kN for demanding uses.

Product Description

SKF SY 35 TF Plummer Block House is a precision-engineered cast iron component designed to support and stabilize shafts with a 35 mm inside diameter. It is engineered for industrial use where high rotational speeds and load demands are common.

This plummer block features a limiting speed of 5300 rpm, allowing it to function efficiently in rapid rotation scenarios typical in metal fabrication, textile production, and packaging equipment. The block includes two pre-drilled mounting holes spaced 126 mm apart, enabling straightforward and secure attachment to supporting structures.

The design incorporates a tilting mechanism to accommodate static misalignment up to 2 degrees, reducing stress on the shaft assembly. Maintenance is simplified by an accessible relubrication hole, permitting grease to be topped up to prolong bearing life.

Seals and flingers are installed on both sides of the housing, effectively blocking contaminants and industrial grime to protect the internal bearing and extend operational duration.

Its dynamic load capacity of 25.5 kN and static load capacity of 15.3 kN make it suitable for demanding industrial environments. Weighing approximately 1.5 kg, the component balances strength with manageable weight for ease of handling and installation.

Robust cast iron material ensures durability and longevity in harsh conditions. Two mounting holes provide ease of installation with precise bolt spacing. Capable of withstanding high-speed rotation up to 5300 rpm. Relubrication feature supports ongoing maintenance and reliability.

Contaminant protection via seals and flingers safeguards internal components. Designed to accommodate static misalignment eases installation requirements. Strong load ratings meet industrial application demands. Ideal use cases include metal fabrication, textile manufacturing, and packaging machinery.

This SKF Plummer Block House is an essential component for ensuring smooth and stable rotation in industrial mechanical systems. Browse the collection of SKF rotary bearing units and plummer blocks for compatible parts and accessories to optimize your machinery performance at EnvMart.
