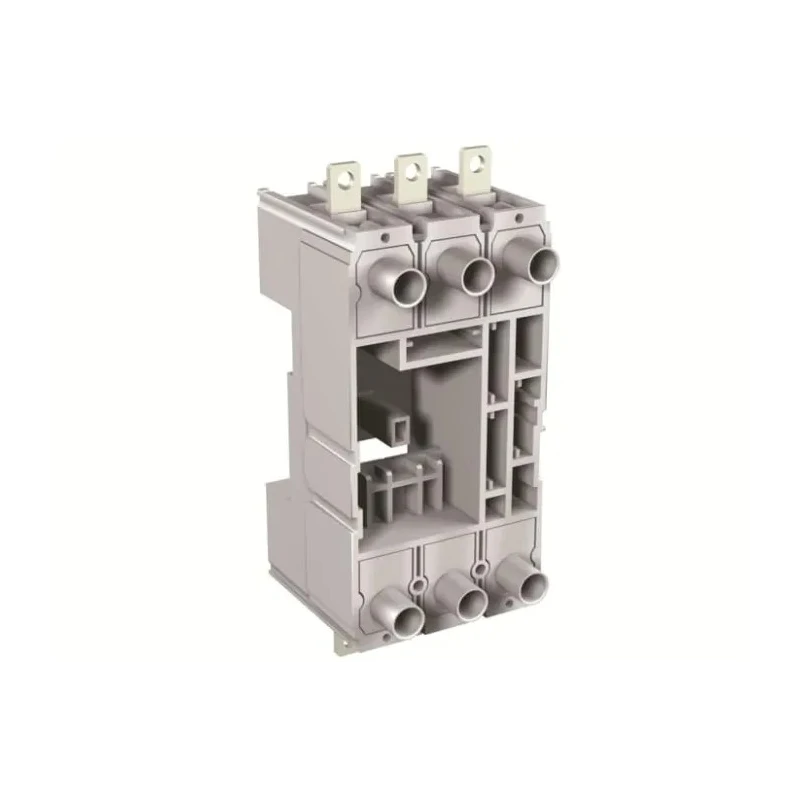

ABB Circuit Breaker Accessory Plug-In Unit for XT4 Tmax XT 690 V AC, 500 V DC, 250 A 1SDA068198R1 XT4 P FP EF
Specifications
| Country of Origin | Italy |
|---|---|
| Range | Tmax XT |
| Brand | ABB |
| Model | 1SDA068198R1 XT4 P FP EF |
| Accessory Type | Plug-In Unit |
| For Use With | XT4 |
| Hazardous Area Certification | IEC 60947-2 |
| Standards/Approvals | RoHS, REACH |
Key Features
- Designed as the fixed part of plug-in for 4 pole circuit breakers with extended front terminals XT4.
- Rated operational voltage of 690 V AC and 500 V DC ensuring versatile application.
- Supports uninterrupted current rating of 250 A (Iu) for robust reliability.
- Features 1000 V rated insulation voltage (Ui) for enhanced safety.
- Withstands impulse voltage up to 8 kV (Uimp) to protect against voltage spikes.
- Complies with RoHS and REACH standards and IEC 60947-2 hazardous area certification.
- Manufactured in Italy ensuring high build quality and durability.
Product Description
ABB 1SDA068198R1 XT4 P FP EF is a circuit breaker accessory plug-in unit designed for use with XT4 Tmax XT series circuit breakers. It serves as the fixed part of the plug-in system for 4 pole breakers, featuring extended front terminals XT4 for efficient electrical connections.
This accessory supports a rated operational voltage of 690 V AC and 500 V DC, making it suitable for a variety of industrial electrical applications. It is rated for an uninterrupted current of 250 A, ensuring reliable performance under continuous load.
Safety and durability are paramount, with a rated insulation voltage of 1000 V and the capability to withstand impulse voltages of up to 8 kV. These specifications guarantee protection against electrical surges and improved operational safety.
The unit complies with important international standards including RoHS and REACH, and carries IEC 60947-2 certification for hazardous area use, aligning with strict safety and environmental requirements.
Manufactured in Italy, the build quality reflects ABB’s commitment to high standards and reliability. This plug-in unit is essential for upgrading or maintaining circuit breaker systems in industrial, commercial, and electrical distribution applications.
Designed as the fixed part of plug-in for 4 pole circuit breakers with extended front terminals XT4. Rated operational voltage of 690 V AC and 500 V DC ensuring versatile application. Supports uninterrupted current rating of 250 A (Iu) for robust reliability.
Features 1000 V rated insulation voltage (Ui) for enhanced safety. Withstands impulse voltage up to 8 kV (Uimp) to protect against voltage spikes. Complies with RoHS and REACH standards and IEC 60947-2 hazardous area certification.
Manufactured in Italy ensuring high build quality and durability.
This product is categorized under circuit breaker accessories and is ideal for industrial electrical and automation uses requiring secure and reliable circuit breaker components. Browse other ABB Circuit Breaker Accessories and related products on EnvMart for comprehensive electrical solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The unit supports a rated operational voltage of 690 V AC and 500 V DC, making it suitable for various industrial applications.
It has an uninterrupted current rating of 250 A, ensuring reliable performance under continuous load conditions.
This plug-in unit features a rated insulation voltage of 1000 V, which enhances safety during operation.
It can withstand impulse voltages of up to 8 kV, providing protection against voltage spikes.
This plug-in unit is specifically designed for use with 4 pole XT4 Tmax XT series circuit breakers.
It complies with RoHS and REACH standards, and carries IEC 60947-2 certification for hazardous area use.
It is manufactured in Italy, reflecting high build quality and standards.
This product is categorized as a plug-in unit, which serves as a fixed part of the plug-in system for circuit breakers.
The model belongs to the Tmax XT range, which is designed for specific industrial electrical applications.
It meets the IEC 60947-2 standard, making it suitable for use in hazardous areas.
This unit complies with RoHS and REACH standards, ensuring it meets environmental safety requirements.
It is suitable for industrial, commercial, and electrical distribution applications requiring reliable circuit breaker components.
