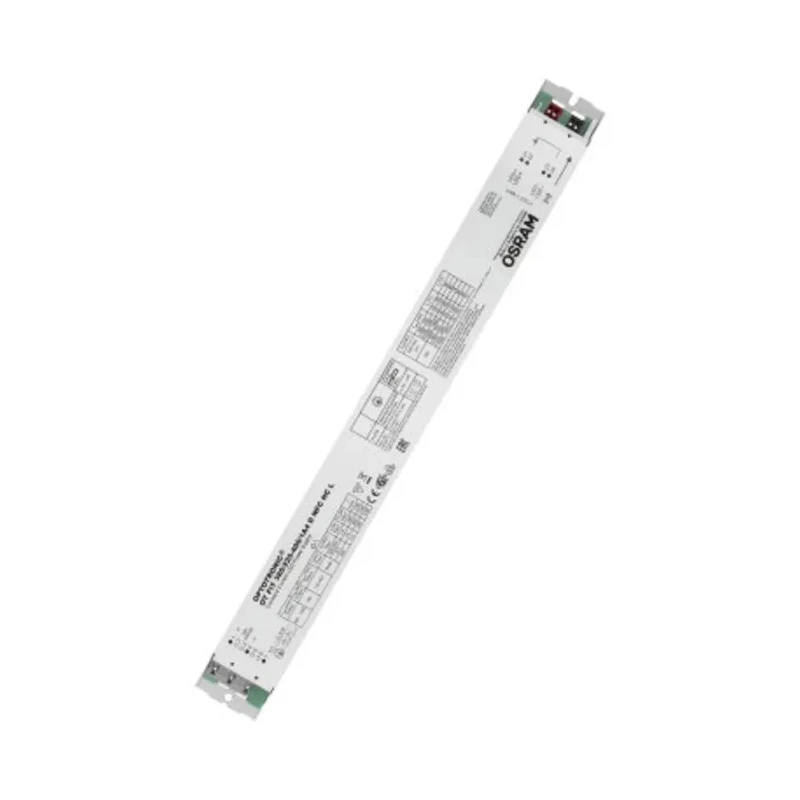

Osram IP20 5 Output Constant Current LED Driver 220-240V 380W 1400mA

Free Delivery in India | Lowest Global Shipping Charges

Osram IP20 5 Output Constant Current LED Driver 220-240V 380W 1400mA

Name: Osram IP20 5 Output Constant Current LED Driver 220-240V 380W 1400mA
Brand: Osram
SKU: 403811
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand Osram Condition New

Specifications

Country of Origin	Bulgaria
Brand	Osram
Model	IP20
IP Rating	IP20
Mount Type	Screw
Series	OT FIT
Configuration	Enclosed
Sub Type	LED Driver
Operating Modes	Constant Current
Number of outputs	5
Terminal type	Push-in
Maximum Output Power	380W
Input Voltage	220, 240V
Output Voltage	150, 550V
Power Dissipation	20W
Standards/Approvals	CE, CCC, BIS, cURus, EAC, IEC, UL, VDE-EMC, VDE-ENEC
Primary Type	AC-DC
Driver Current	1400mA
LED Voltage	198, 440V ac

Key Features

Operates at input voltage of 220 to 240V AC with constant current output.
Provides stable output voltage range of 150V to 550V for LED load.
Non-dimmable design with IP20 rated enclosed configuration for indoor use.
Equipped with push-in terminal type and screw mounting for installation ease.
High efficiency up to 97% with low output ripple current below 1%.
Global certifications including CE, UL, cURus, BIS and VDE approvals ensure compliance.
Designed for long lifetime up to 100,000 hours at 65 °C with maximum 10% failure rate.
Advanced protection against 4kV bursts and 2kV surge voltages to enhance durability.

Product Description

Osram IP20 5 Output Constant Current LED Driver OT-FIT-380/220...400/1A4-D-NFC-HC-L is a robust enclosed AC-DC LED driver delivering a maximum output power of 380W with a constant driver current of 1400mA. It operates on an input voltage range of 220 to 240V AC, providing output voltage between 150V and 550V tailored for LED lighting loads. The non-dimmable design suits fixed lighting installations with a durable IP20 rating suitable for indoor applications.

This LED driver is mounted using screws and features push-in terminal connections for secure and easy wiring. It is part of Osram's OT FIT series, known for flexible and future-proof current settings enabled by NFC (Near Field Communication) technology.

Engineered for high efficiency reaching up to 97%, it maintains a low output ripple current under 1%, ensuring superior quality light output without flicker. The product is globally certified with CE, CCC, BIS, cURus, EAC, IEC, UL, VDE-EMC, and VDE-ENEC approvals, demonstrating its safety and performance compliance.

Designed for durability, the LED driver promises a lifetime of up to 100,000 hours at a maximum case temperature of 65 °C with only a 10% failure rate. It incorporates protection against high voltage bursts (4 kV) and surge voltages (2 kV), safeguarding connected LEDs and the driver unit itself.

This product finds extensive applications in industrial, commercial, HVAC, and architectural LED lighting systems where stable, high-quality current control is essential. Its compact, enclosed design helps in easy integration within existing electrical installations without requiring additional enclosure.

Operates on global AC mains input, supporting widespread use. Constant current output stabilizes LED performance across connected arrays. Multiple outputs (5) enable feeding several LED strings simultaneously. Compact enclosed housing aids installation in varied commercial lighting environments.

Compliant with international standards ensuring safe and reliable operation.

For professional LED lighting solutions and efficient system integration, explore the Osram LED Drivers category and product range to find compatible components and accessories to complete your installation.
