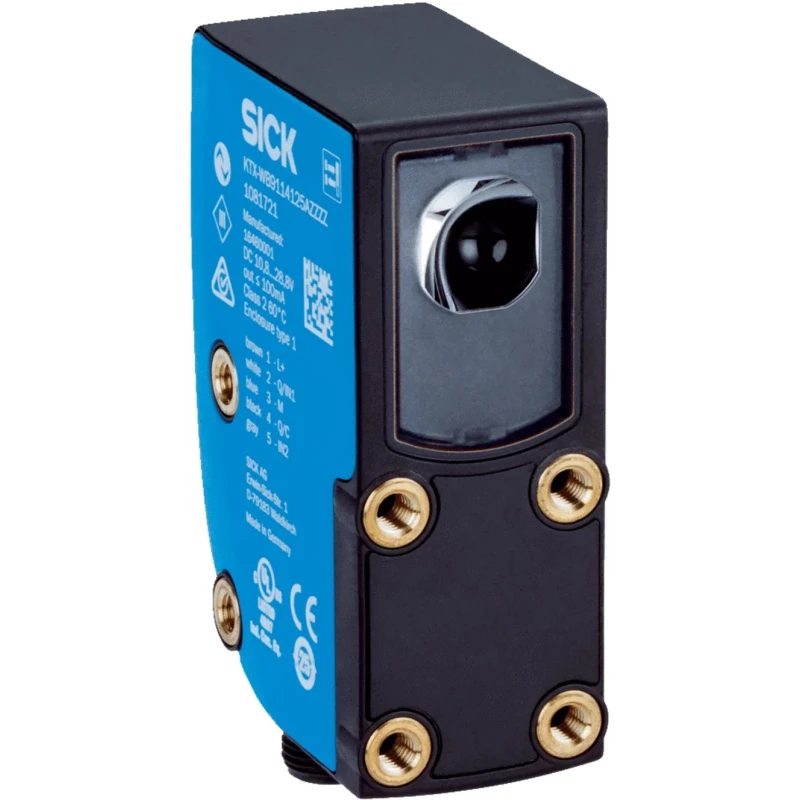

SICK Contrast Sensor RGB LED 13 mm, Push Pull Output, 100 mA IO-Link Interface, IP67, 30V DC KTX-WB9214125AZZZZ

SICK KTX-WB9214125AZZZZ contrast sensor features a high-precision RGB LED light source and push pull output with IO-Link interface. Designed for demanding industrial applications, this sensor operates reliably with a maximum detection distance of 13 mm and a supply voltage of 30V DC. Housed in a robust plastic enclosure rated IP67, it offers excellent protection against harsh environments.

The sensor utilizes TwinEye-Technology which provides increased depth of field and high tolerance to sensing distance variations, ensuring accurate contrast detection even on glossy or jittering surfaces. Its high switching frequency of 50 kHz and minimal jitter of 5 μs enable precise detection at high machine speeds, making it ideal for complex automation tasks.

Equipped with a 7-segment display and LED status indicators, the KTX Prime model facilitates straightforward diagnostics, visual feedback, and sensor adjustments. The integrated color mode allows stable detection of complex color differences, useful in applications such as print mark detection, position control, and label alignment in the printing and packaging sectors.

The sensor's flexible teach-in processes and job storage capabilities enable tailored sensor adjustment and format change support, increasing process stability. It supports a maximum current of 100 mA, an M12 male connector, and complies with CE, UL, cULus, RoHS, and IEC standards. Operating temperature ranges from -20°C to 60°C accommodate various industrial environments.

Typical applications for the SICK KTX-WB9214125AZZZZ include contrast-based detection tasks such as print mark control, label alignment on bottles, roll end monitoring, and color quality control in yarn or line production. It is a reliable choice for sectors requiring high precision and flexibility in sensor technology.

This sensor is manufactured in Germany and offers a durable solution with excellent gray line resolution and a wide dynamic range. Its compatibility with the existing KT series guarantees easy integration and replacement without assembly modifications.

Equipped with IO-Link and automation functions enabling detailed diagnostics and process control. TwinEye-Technology enhances performance on difficult materials, reducing machine downtime. Robust IP67 plastic housing suitable for harsh industrial environments.

High switching frequency and low jitter support fast, accurate sensing. Integrated color mode and job storage enable flexible and stable detection in complex processes. For advanced sensor technology solutions in automation and control systems, explore the Sensors category at EnvMart.
