SICK Background Suppression Photoelectric Sensor, Block Sensor, 100 mm to 2.5 m Detection Range, NPN/PNP Output, 30V IP69K

Free Delivery in India | Lowest Global Shipping Charges

SICK Background Suppression Photoelectric Sensor, Block Sensor, 100 mm to 2.5 m Detection Range, NPN/PNP Output, 30V IP69K

Name: SICK Background Suppression Photoelectric Sensor, Block Sensor, 100 mm to 2.5 m Detection Range, NPN/PNP Output, 30V IP69K
Brand: SICK
SKU: 402896
Price: 688.37 USD
Availability: InStock



Category Photoelectric Sensor Brand SICK Condition New

Specifications

Country of Origin	Germany
Display	screen
Brand	SICK
Response time	500μs
Light Source	LED
Detection range	100 mm → 2.5 m
Model	IP69K
IP Rating	IP69K
Mount Type	Through Hole
Housing Material	Metal
Optional	test input, time delays, contamination signaling at the alarm output, and front-screen heating, also available in a high-power version
Output type	NPN/PNP
Series	W24-2
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-40°C
Maximum Current	100mA
Terminal type	4-Pin Connector
Maximum dc Voltage	30V dc
Hazardous Area Certification	EN IEC 63000
Standards/Approvals	CE Certified, UL Certified
Sensor Style	Block
Switchable	PNP/NPN and light/dark switching
M12 male connector or M16 screw connection	rotatable through 90°

Key Features

The sensor has a rugged die-cast zinc metal housing with IP69K protection class for harsh industrial environments.
It supports switchable PNP/NPN and light/dark switching output for versatile installation options.
The operating voltage is up to 30V DC with a maximum current of 100 mA and response time of 500 microseconds.
Designed for extreme temperatures with operating range from -40°C to 60°C and optional front screen heating to reduce condensation.
Equipped with a 4-pin connector terminal and rotatable M12 male or M16 screw connection.
The sensor offers high ambient light immunity and contamination signaling to enhance detection reliability.
Certified with CE and UL approvals and compliant with hazardous area certification EN IEC 63000.
Ideal for positioning coils, goods orientation on conveyors, and detecting products in post-production logistics.

Product Description

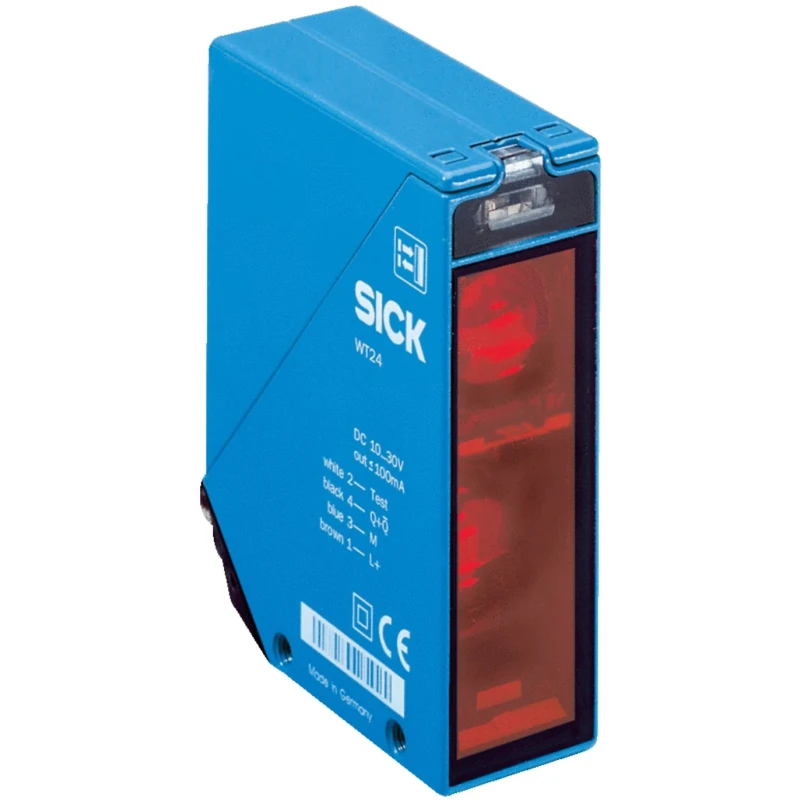

SICK WT24-2B420 Background Suppression Photoelectric Sensor is a robust industrial sensor designed for precise background suppression detection. The block sensor style provides a detection range from 100 mm up to 2.5 meters, utilizing LED light source technology. It features a durable metal die-cast zinc housing rated IP69K, ensuring resistance against dust, water, and harsh cleaning processes, making it suitable for demanding environments.

The sensor supports both NPN and PNP output types with quick 500 microsecond response times, and can be switchable between light and dark operation modes. It operates on a maximum DC voltage of 30V and handles currents up to 100 mA. The device functions reliably across a wide temperature range from -40°C to 60°C, and options for front screen heating prevent condensation buildup for consistent sensing performance.

Connectivity is enhanced with a 4-pin M12 male connector or M16 screw connection, both rotatable through 90 degrees to facilitate flexible installation. The sensor's design offers high immunity to ambient light and crosstalk, ensuring secure detection even in challenging environments.

Certified with CE and UL standards and compliant with EN IEC 63000 for hazardous area classification, the WT24-2B420 is built for industrial applications requiring high reliability and precision. Applications include positioning coils in manufacturing, ensuring correct orientation of goods on conveyor systems, and product detection during post-production logistics.

The sensor's rugged IP69K metal housing delivers long service life and reliability in harsh industrial settings. Switchable output and light/dark modes provide flexibility for various automation setups. High ambient light immunity improves detection security in bright or variable lighting.

Optional front lens heating options prevent condensation in fluctuating temperature environments. Rotatable connectors enable easy and versatile wiring configurations. Alarm outputs enable early contamination detection to reduce downtime.

Designed and manufactured in Germany ensuring quality builds and standards compliance. Explore more high-quality sensors and industrial automation products on EnvMart to meet your control and detection needs.
