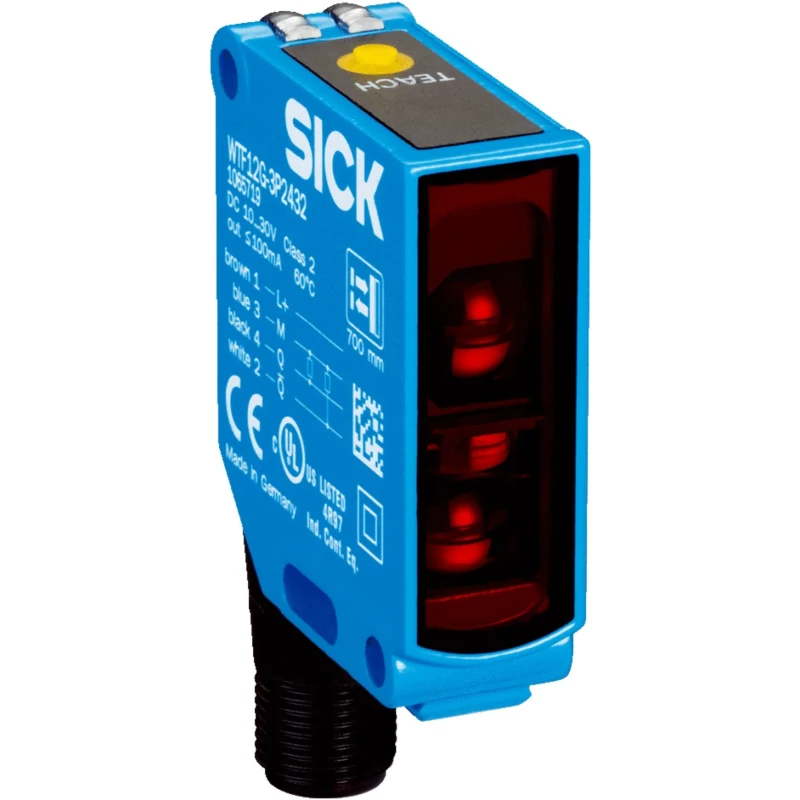

SICK Foreground Suppression Photoelectric Sensor, Block Style, 150 mm to 700 mm Detection Range, PNP WTF12G-3P2432T01
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 2ms |
| Light Source | Red Light |
| Detection range | 150 mm → 700 mm |
| Model | WTF12G-3P2432T01 |
| IP Rating | IP66, IP67 |
| Output type | PNP |
| Series | TranspaTect |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 100mA |
| DetectIon Type | Foreground Suppression |
| Terminal type | 4-Pin Connector |
| Interface Type | 4-Pin, M12 Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE Certified, UL Certified |
| Materials Detected | Shiny Object, Transparent Object, Uneven |
| Sensor Style | Block |
| Freedom of machine design | no mounting system for the installation of a reflector required |
| Quick commissioning | there is no need to mount a reflector or precisely adjust the sensor |
| Machine downtime is minimized | the integrated AutoAdapt function extends the time between cleanings |
| Heightened productivity | mechanical and chemical ruggedness due to the metal housing |
Key Features
- Block style sensor with detection range from 150 mm to 700 mm.
- PNP output type with 4-pin M12 connector interface.
- Red light source enables precise detection of various surface qualities.
- Rugged metal housing with PTFE coating option for chemical resistance.
- IP66 and IP67 rated for protection against dust and water ingress.
- Operating temperature range from -40°C to 60°C ensures reliability in harsh environments.
- Response time of 2 milliseconds for fast detection capabilities.
- CE and UL certified meeting international safety standards.
Product Description
SICK WTF12G-3P2432T01 Foreground Suppression Photoelectric Sensor is designed for reliable detection of transparent, semitransparent, and shiny objects without requiring a reflector. It features a block sensor style with a detection range from 150 mm up to 700 mm, suitable for diverse industrial applications including packaging, food and beverage, and pharmaceuticals.
The sensor outputs a PNP signal via a 4-pin M12 connector and utilizes a red light source to ensure precise detection on various surfaces. Built with a rugged metal housing, optional PTFE coating is available to provide enhanced chemical resistance. IP66 and IP67 ratings guarantee protection against dust and water ingress, allowing usage in harsh industrial environments.
Operating temperature ranges from -40°C to 60°C to maintain stable performance under extreme conditions. A fast 2 ms response time enables real-time detection, contributing to efficient automation processes. Certifications including CE and UL ensure compliance with international safety and quality standards.
The design eliminates the need for reflectors, reducing installation complexity and maintenance efforts. The integrated AutoAdapt feature continuously adjusts detection thresholds to compensate for contamination on the background, thereby minimizing machine downtime.
This sensor series, TranspaTect, is particularly optimized for detecting transparent objects like trays and bottles, making it an essential component for automated manufacturing and quality control systems.
Block style sensor with detection range from 150 mm to 700 mm. PNP output type with 4-pin M12 connector interface. Red light source enables precise detection of various surface qualities. Rugged metal housing with optional PTFE coating for chemical resistance.
IP66 and IP67 rated protection against dust and water ingress. Operating temperature range from -40°C to 60°C. 2 ms response time for fast detection. CE and UL certified. Eliminates reflector mounting requirement. AutoAdapt feature extends sensor uptime with continuous threshold adjustment.
This Foreground Suppression Photoelectric Sensor from SICK is ideal for industrial automation applications where detecting transparent, shiny, or uneven objects accurately and reliably is critical. It supports processes in packaging, pharmaceuticals, food, and beverage manufacturing, enhancing productivity and operational safety. Browse the Electronics & Electricals > Sensors > Photoelectric Sensor category in EnvMart for more automation and sensing solutions.
