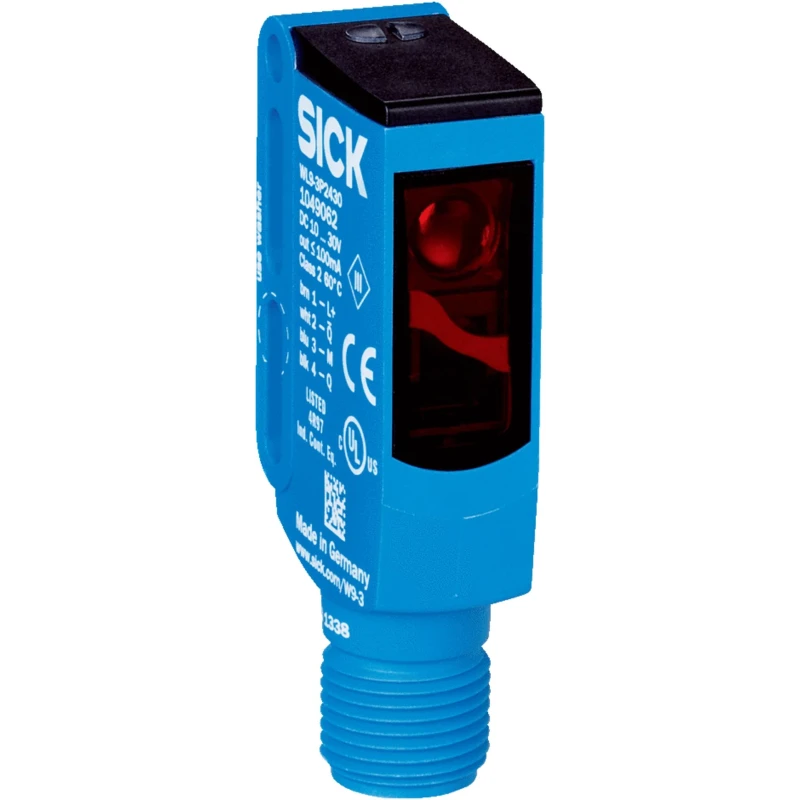

SICK Retroreflective Photoelectric Sensor, Block Sensor, 4 m Detection Range, NPN Output, IP66/IP67/IP69K WL9-3N2430
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | LED |
| Connections | M8 and M12 male connector, cable as well as cable with male connector |
| Detection range | 4 m |
| Model | WL9-3N2430 |
| IP Rating | IP66, IP67, IP69K |
| Housing Material | Plastic |
| Output type | NPN |
| Series | W9 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | 4-Pin Connector |
| Maximum dc Voltage | 30V dc |
| Hazardous Area Certification | EN IEC 63000 |
| Standards/Approvals | UL File No. NRKH.E181493 |
| Sensor Style | Block |
Key Features
- Offers a detection range of up to 4 meters for reliable sensing.
- Equipped with NPN output and a 4-pin connector terminal for easy integration.
- Robust housing with IP66, IP67, and IP69K ratings ensures operation in harsh environments.
- Operates within temperature range from -40°C to 60°C for wide application coverage.
- Utilizes LED light source providing stable and interference-resistant sensing performance.
- Features a quick response time of 500 microseconds for fast detection.
- Complies with UL and EN IEC 63000 standards, ensuring safety and quality.
Product Description
SICK WL9-3N2430 Retroreflective Photoelectric Sensor, Block Sensor with a 4-meter detection range, NPN output, and rugged IP66, IP67, IP69K rated housing designed for industrial automation and control applications.
This sensor is engineered for precise detection of small objects and object features, ensuring reliability in harsh environments. Its robust VISTAL® plastic housing provides exceptional mechanical resistance, protecting against dust, water, and chemical exposure.
Utilizing advanced SIRIC® technology, the sensor effectively suppresses optical and electromagnetic interference for stable operation. The LED light source enables accurate and consistent performance over the maximum detection distance.
The sensor operates efficiently at voltages up to 30 V DC and currents up to 100 mA with a fast response time of 500 microseconds, making it suitable for high-speed applications.
Operating temperature spans from -40°C to 60°C, allowing use in varied environmental conditions. The WL9 series includes multiple connection options such as M8 and M12 male connectors and cables, enabling flexible installation.
This product complies with international standards UL File No. NRKH.E181493 and EN IEC 63000 hazardous area certification, guaranteeing industrial quality and safety. Detection range up to 4 meters for versatile sensing applications.
Protection rated IP66, IP67, and IP69K for harsh industrial conditions. NPN output for compatibility with automated control systems. Robust VISTAL® plastic housing ensures mechanical durability. LED light source for precise and stable object detection.
Wide operating temperature range from -40°C to 60°C. Fast 500 microsecond response time for dynamic processes. Multiple connectors for flexible integration options.
Applications include transport of transparent objects, paper monitoring, presence detection, fiber break monitoring, tool monitoring, and precise edge detection in manufacturing, laboratory, construction, HVAC, and other industrial sectors.
This sensor is a reliable solution for industrial automation, delivering consistent performance and durability. Explore more products in the Photoelectric Sensors category on EnvMart for related sensing technologies.
