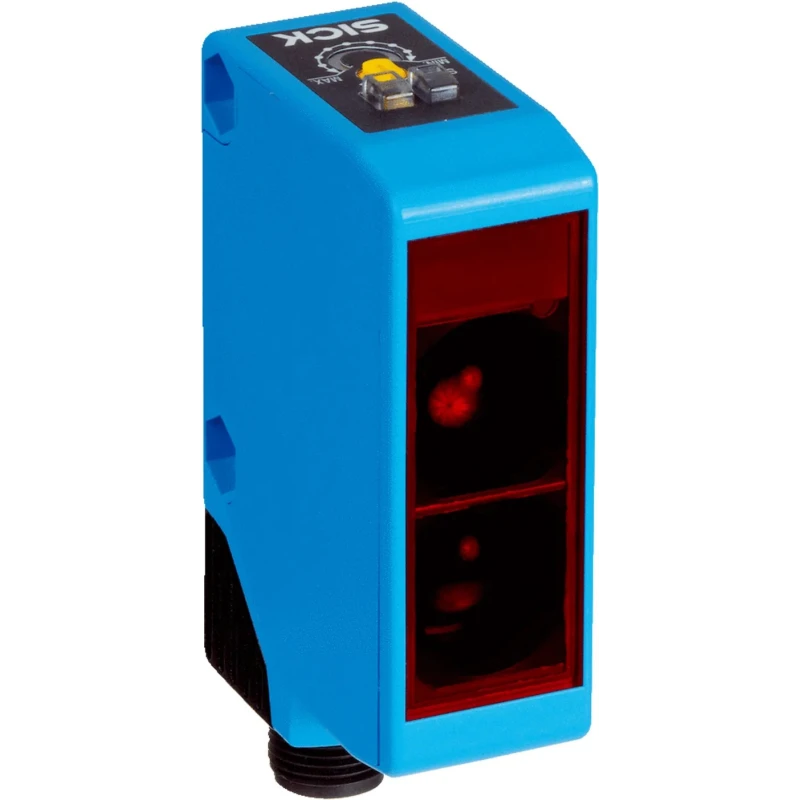

SICK Retroreflective Block Photoelectric Sensor 12 m Detection Range, PNP Output, IP67 Rated WL250-2F2431
Specifications
| Country of Origin | China |
|---|---|
| Brand | SICK |
| Response time | 500μs |
| Light Source | LED |
| Detection range | 12 m |
| Model | WL250-2F2431 |
| IP Rating | IP67 |
| Housing Material | Plastic |
| Output type | PNP |
| Series | W250-2 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 100mA |
| DetectIon Type | Retroreflective |
| Terminal type | 4-Pin Connector |
| Interface Type | 4-Pin, M12 Connector |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | EMC EN 60947-5-2, UL File No. NRKH2.E300503 & NRKH8.E300503 |
| Sensor Style | Block |
Key Features
- Easily visible red BrightLight LED for simple sensor alignment.
- Potentiometer with positioning indicator for adjusting sensing range and sensitivity.
- Light/dark switching selectable via control cable to reduce device variants.
- Rotatable M12 connector or cable variants provide installation flexibility.
- Includes stainless steel BEF-W250 mounting bracket for secure installation.
- Compact housing integrates DC and AC/DC types for versatile use.
- Robust IP67-rated plastic housing suitable for harsh industrial environments.
- Operating temperature range from -25°C to 55°C ensures reliable performance.
Product Description
SICK WL250-2F2431 Retroreflective Block Photoelectric Sensor features a 12 m detection range with a PNP output type, rated IP67 for dust and water protection. It is designed for precision automation, control gear, and sensor integration in industrial environments requiring reliable object detection.
The W250 series combines DC and AC/DC models within a compact housing, simplifying system integration. Its bright red LED provides visible alignment during installation, enhanced with a potentiometer for fine-tuning sensor sensitivity and detection range. Light/dark switching functionality via a control cable reduces inventory complexity by halving device variants.
The sensor offers installation versatility with options for a rotatable M12 connector or fixed cable. Included in delivery is the durable BEF-W250 stainless steel mounting bracket (1.4301) that facilitates secure mounting.
Constructed with a robust plastic housing, this sensor withstands industrial operating temperatures from -25°C to 55°C. It meets EMC EN 60947-5-2 standards and is UL certified, ensuring compliance with international safety requirements. The device supports a maximum DC voltage of 30V and a current rating of up to 100mA, with a swift 500μs response time suitable for fast industrial processes.
Typical applications include industrial automation lines, manufacturing equipment monitoring, and material handling systems where precise object detection is critical. Easily visible red BrightLight LED for simple sensor alignment.
Potentiometer with positioning indicator for adjusting sensing range and sensitivity. Light/dark switching selectable via control cable to reduce device variants. Rotatable M12 connector or cable variants provide installation flexibility.
Includes stainless steel BEF-W250 mounting bracket for secure installation. Compact housing integrates DC and AC/DC types for versatile use. Robust IP67-rated plastic housing suitable for harsh industrial environments. Operating temperature range from -25°C to 55°C ensures reliable performance.
Explore EnvMart's extensive collection of industrial sensors and automation components to optimize your operational efficiency and system reliability.
