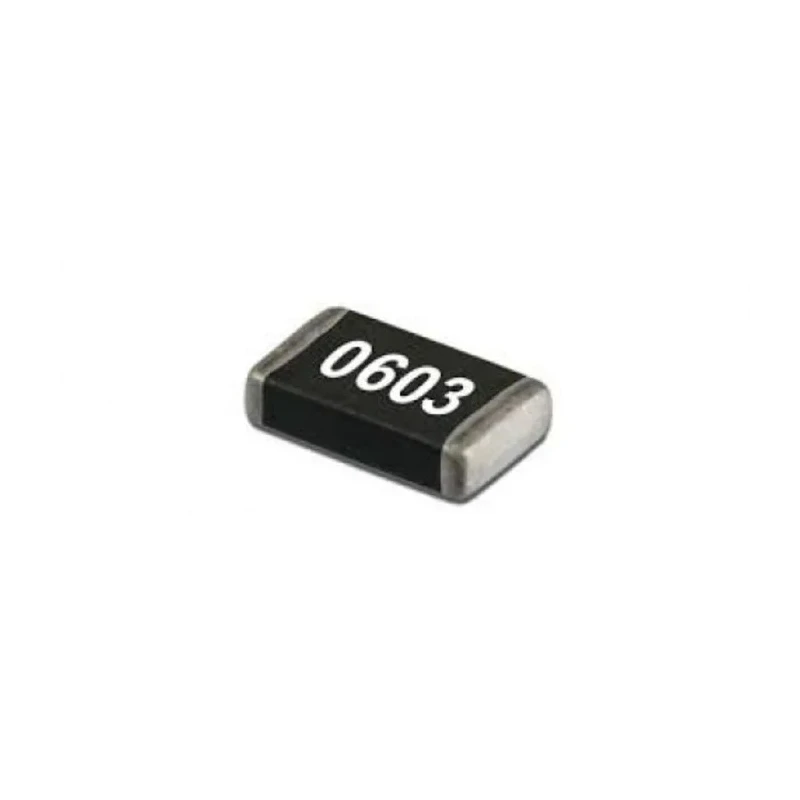

Yageo 22 nF Multilayer Ceramic Capacitor, 50V dc, ±5 % Tolerance, Surface Mount, 0603 Package CC0603JRX7R9BB223

The Yageo CC0603JRX7R9BB223 is a 22 nF multilayer ceramic capacitor designed for surface mount technology with a voltage rating of 50V dc and a tolerance of ±5 %.

Constructed using stacked multilayer technology with an X7R dielectric, it performs reliably over a wide temperature range from -55°C to 125°C, suitable for industrial and commercial electronics applications.

It is housed in a compact 0603 package (1.6mm length x 0.8mm width x 0.8mm height) ideal for space-constrained PCB layouts.

The capacitor terminates with a lead-free nickel barrier surface mount type that complies with RoHS and halogen free standards, ensuring safe and environmentally responsible usage.

This component is supplied on a paper/PE tape reel, enabling streamlined automated pick-and-place manufacturing processes.

Typical applications include personal computers, hard disk drives, game consoles, power supply filtering, DVD players, mobile phones, and other data processing devices requiring stable capacitance and reliability.

Multilayer Ceramic Capacitor construction for stability and durability. IEC 60384-1 and IEC 60384-21/22 compliant, ensuring international quality standards. Compact 0603 package for surface mounting in modern electronics.

X7R Class dielectric for temperature and voltage stability. RoHS and halogen free compliant for environmental safety. Suitable for a broad range of industrial, commercial, and consumer electronic applications. Supplied in tape on reel packaging compatible with automated assembly lines.

This capacitor is a reliable choice for designers and manufacturers seeking consistent performance in ceramic capacitors within demanding electronic circuits. Explore the full range of Yageo MLCC components for your electronic design requirements at EnvMart.
