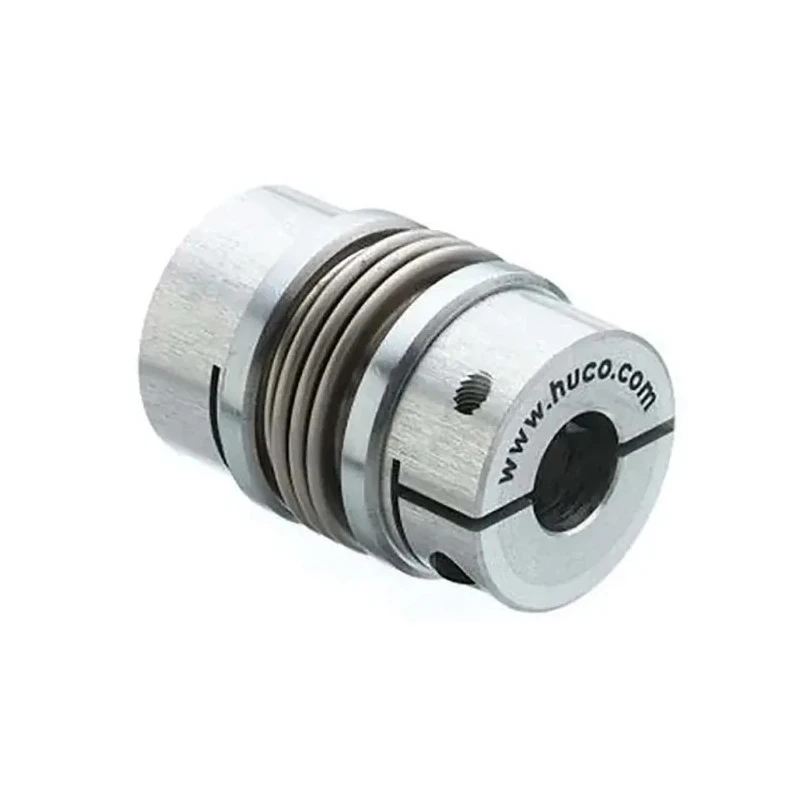

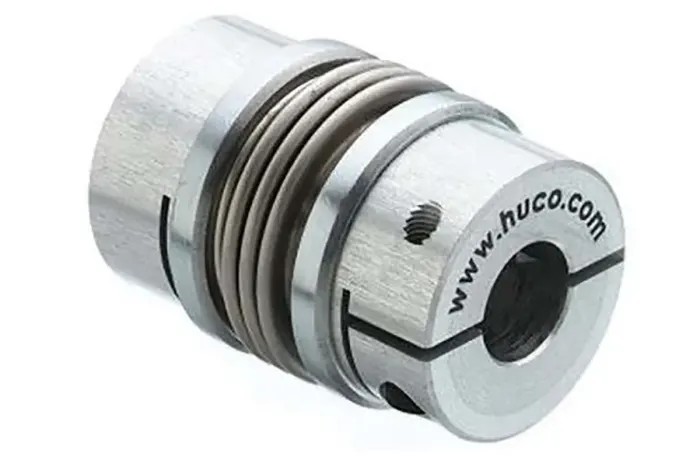

Huco Flexible Coupler Aluminium Clamp Style 82 mm OD 22 mm Bore Size 102 mm Length 593.82.4949

Free Delivery in India | Lowest Global Shipping Charges

Huco Flexible Coupler Aluminium Clamp Style 82 mm OD 22 mm Bore Size 102 mm Length 593.82.4949

Name: Huco Flexible Coupler Aluminium Clamp Style 82 mm OD 22 mm Bore Size 102 mm Length 593.82.4949
Brand: Huco
SKU: 401245
Price: 520.45 USD
Availability: InStock



Category Mechanical Power Transmission Coupler Brand Huco Condition New

Specifications

Country of Origin	India
Screw Size	M10
Brand	Huco
Length	102mm
Maximum Speed	6900rpm
Series	Flex K
Maximum Operating Temperature	120°C
Minimum Operating Temperature	-30°C
Torque Rating	150Nm
Hub Material	Aluminium
Misalignment - Angular	2°
Misalignment - Parallel	0.25mm
Misalignment - Axial	0.5mm
Bellows Material	Stainless Steel
Torsional Stiffness	75000Nm/rad
Bore Size B	22mm

Key Features

Constructed with aluminium hub material ensuring lightweight and strength.
Equipped with stainless steel bellows for durability and flexibility.
Rated for torque up to 150 Nm and torsional stiffness of 75000 Nm/rad.
Operates effectively between -30°C and 120°C suitable for diverse industrial environments.
Capable of handling maximum rotational speeds up to 6900 rpm.
Designed to compensate for angular, parallel, and axial misalignment.
Clamp style provides secure shaft connection for reliable performance.
Screw size M10 facilitates easy installation and maintenance.

Product Description

Huco 593.82.4949 Flexible Coupler is a precision mechanical power transmission component designed for industrial, manufacturing, and fluid power applications. It features an aluminium alloy hub and stainless steel bellows construction which provides excellent kinematic properties, combining durability with flexibility.

This clamp-style coupling has an outer diameter of 82 mm and a bore size of 22 mm for both ends, with a total length of 102 mm. It can safely transmit torque up to 150 Nm while maintaining a torsional stiffness of 75000 Nm/rad, ensuring reliable operation under varying load conditions.

The coupling accommodates misalignments with an angular misalignment capability of 2°, parallel misalignment tolerance of 0.25 mm, and axial misalignment of 0.5 mm, helping reduce stress on connected machinery shafts. The temperature operating range from -30°C to +120°C makes it suitable for harsh environments.

This coupling is suitable for high-speed applications with a maximum speed rating of 6900 rpm. The clamp style hub connection and M10 screw size enable secure shaft attachment and convenient servicing.

Lightweight aluminium hub material enhances performance and reduces inertia. Stainless steel bellows provide flexibility and compensate for shaft misalignment. High torsional stiffness improves power transmission efficiency.

Clamp style connection supports secure and reliable shaft fitting. Broad operating temperature range for various industrial settings. Misalignment capabilities help extend machinery lifespan. Designed for durable and maintenance-friendly operation.

This flexible coupling is commonly used in industrial machinery, manufacturing lines, HVAC equipment, and fluid power systems where precise shaft alignment and torque transmission are critical. It helps protect machinery by absorbing shocks and vibrations, thereby enhancing operational reliability.

Explore the full range of Huco flexible couplings and related power transmission components at EnvMart for applications spanning industrial tools, mechanical equipment, and precision machinery needs.
