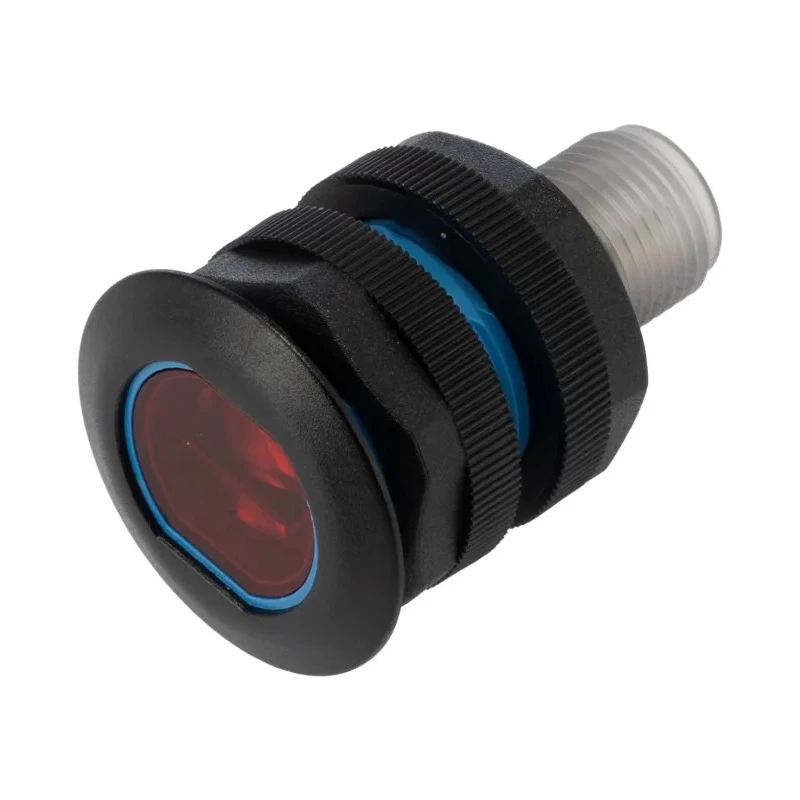

SICK Retroreflective Photoelectric Sensor Barrel Sensor 60 mm to 6 m PNP Output IP67 GRL18S-P2436

The SICK GRL18S-P2436 is a retroreflective photoelectric sensor featuring a compact barrel style housing designed for precise object detection within industrial automation settings. Its detection range spans from 60 mm to 6 m, achieved through a visible red LED light source that ensures accurate sensing over varying distances.

This sensor employs a PNP output type, allowing for simplified wiring and direct interfacing with PLCs. The device supports a wide supply voltage range from 10 V to 30 V DC and offers a rapid response time of 0.5 ms, enabling efficient high-speed detection and counting tasks.

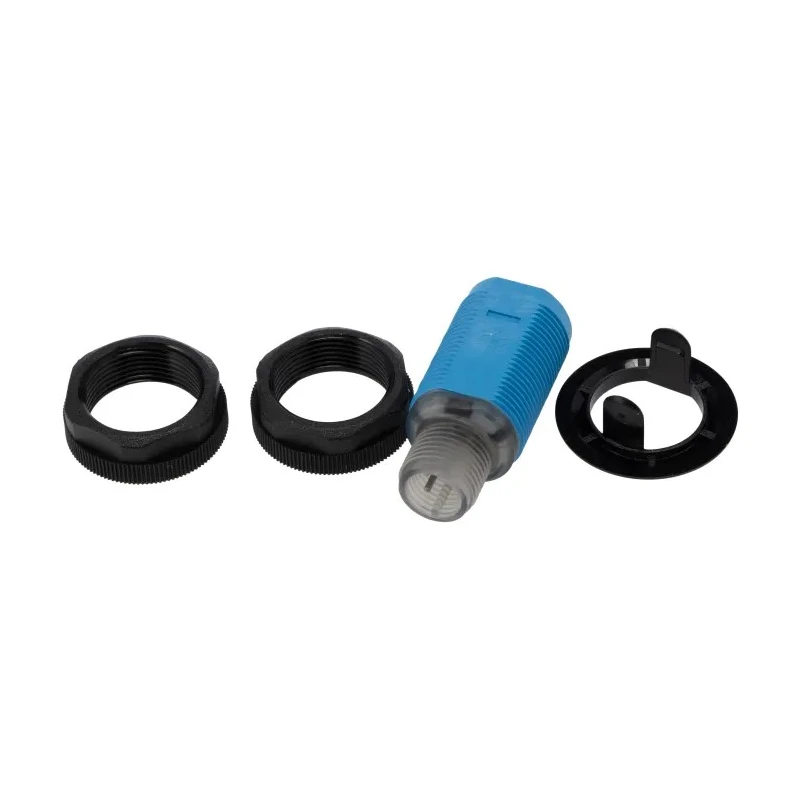

With an IP67 enclosure rating, the sensor is protected against dust ingress and is suitable for wash-down applications, ensuring long-term durability in harsh environments. The housing is constructed of robust ABS plastic, and the optics utilize PMMA plastic materials. Threaded mounting and a 4-pin M12 male connector provide straightforward installation and cabling.

Two front-facing LEDs indicate power (green) and received-light status (yellow), facilitating easy operational monitoring. The sensor operates reliably within an ambient temperature range of −25°C to +55°C, offering versatility across diverse industrial settings.

Additional protections include reverse polarity protection and safeguarded outputs against overcurrent and short circuits, supporting operational safety. The sensor delivers a maximum output current of 100 mA, accommodating a variety of load demands.

Common applications include presence detection on conveyor systems utilizing reflectors, end-of-line packaging verification in automated cells, high-throughput object counting, and part positioning in assembly machinery. It is particularly suited for integration where a compact M18 threaded mounting format is required.

Manufactured in Malaysia, this sensor complies with CE and cULus certifications, assuring adherence to quality and safety standards. Compact retroreflective sensor with PNP output suitable for industrial automation. Operates at 10 V to 30 V DC supply voltage with 0.5 ms response time.

IP67 rated housing made from durable ABS for dust and wash-down protection. Threaded mounting with 4-pin M12 connector facilitates straightforward installation. Wide operating temperature range from −25°C to +55°C for diverse environments.

Equipped with visible red LED and dual front LEDs for power and light reception status. Maximum output current of 100 mA supports a variety of load types. Ideal for presence detection, end-of-line packaging verification, and object counting in automated systems.

Includes reverse polarity protection and output short circuit and overcurrent protection. Manufactured in Malaysia, CE Certified and cULus Listed for quality assurance. Explore our extensive range of Photoelectric Sensors at EnvMart for advanced industrial automation and control solutions.
