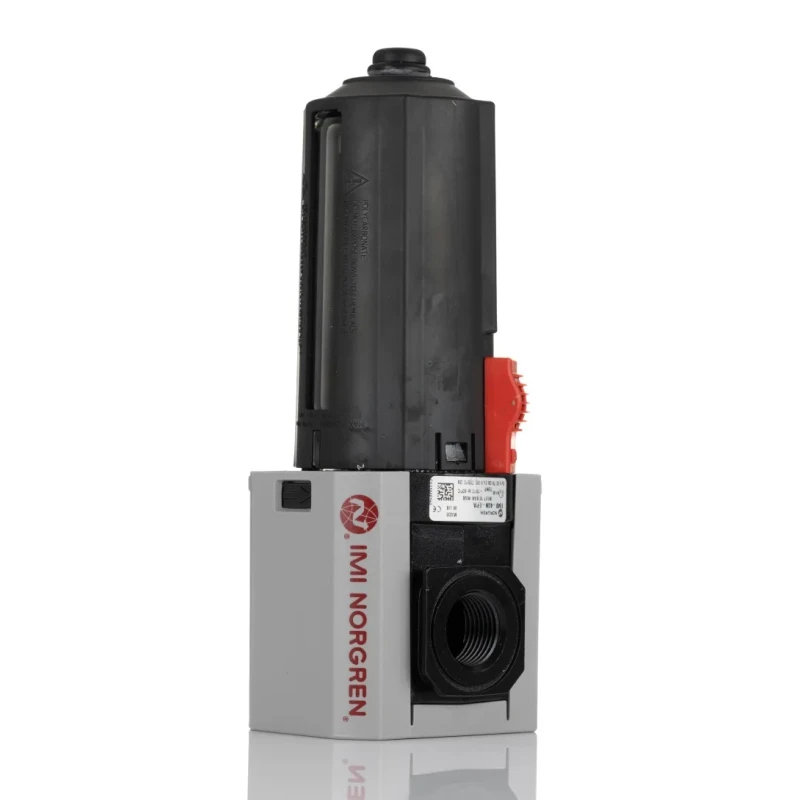

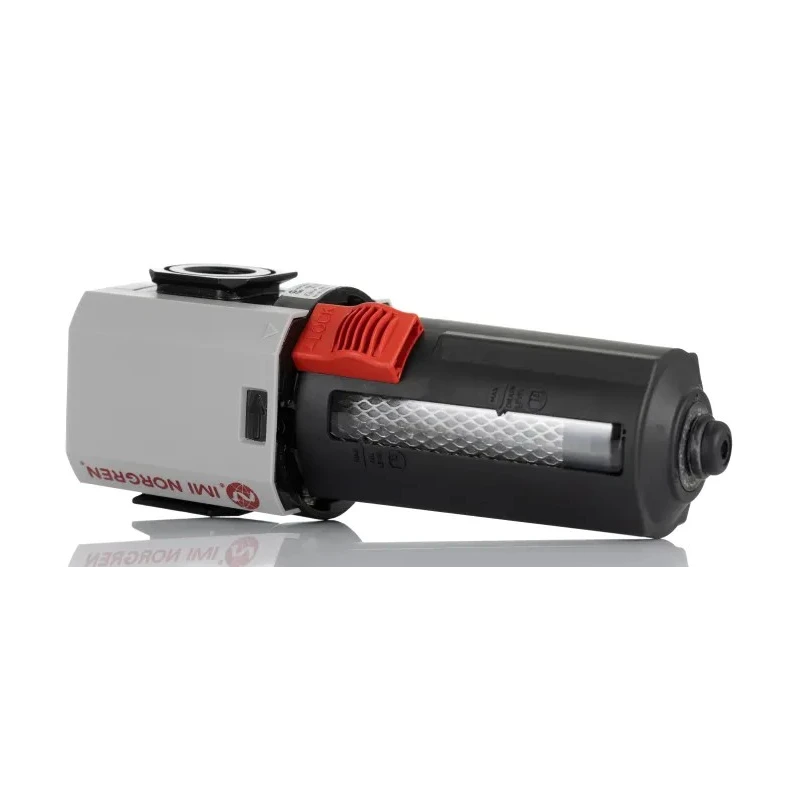

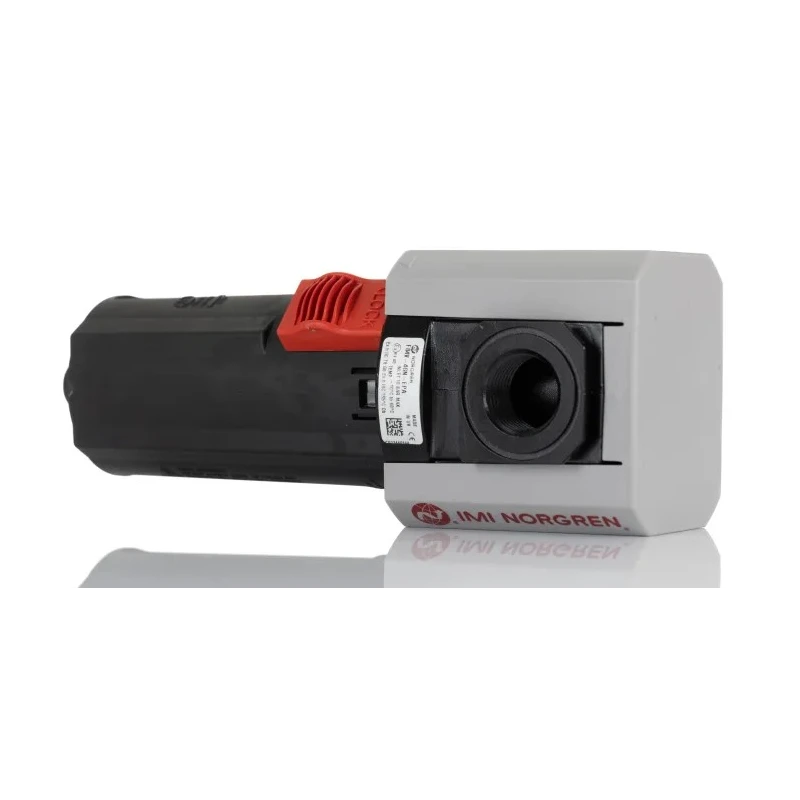

Norgren Pneumatic Separator G 1/2 Port Size 1500 L/min Flow, 0.3 bar to 1 Mpa Operating Pressure F84V-4GN-EPA

Norgren F84V-4GN-EPA Pneumatic Separator is a high-performance oil vapour removal filter designed to maintain the integrity of compressed air systems by filtering out oil vapours and hydrocarbon odours. This pneumatic separator supports a maximum flow rate of 1500 L/min and benefits from an operating pressure range between 0.3 bar and 1 Mpa, making it highly adaptable for various industrial applications.

Constructed with a robust aluminium body, the device offers excellent corrosion resistance and durability for extended service life in demanding environments. The chloroprene seals contribute to reliable operation under varying pressures and temperatures. This separator conforms to the ISO G Parallel/PTF thread standard with a G 1/2 port size, easing installation and compatibility.

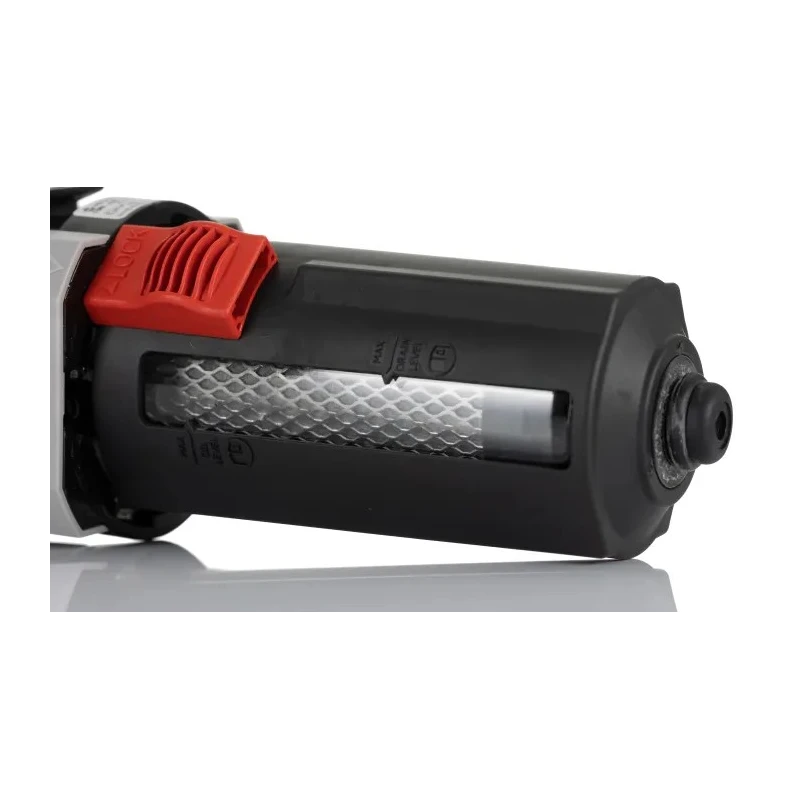

The separator is part of the Excelon Plus Series known for its modular design, allowing simple integration into existing pneumatic air preparation systems. The transparent lightweight polycarbonate bowl enables users to visually monitor condensation levels and determine when drainage is required without disassembling the unit. For enhanced security, a double lock mechanism reduces the risk of unauthorized access or tampering.

Designed for multiple sectors, including oil and gas, industrial automation, food and beverage processing, and medical facilities, this Pneumatic Separator effectively protects equipment by maintaining cleaner air flow. Its operational temperature range from -10°C to 60°C ensures functionality in both cold and moderately warm environments.

Robust corrosion-resistant aluminium body ensures long service life. Equipped with chloroprene seal material for reliable sealing performance. Compatible with G 1/2 port size and ISO G Parallel/PTF connection thread standards.

Features a modular Excelon Plus Series design for easy integration with other components. Minimum operating temperature is -10°C with a maximum of 60°C for versatile environmental adaptability. Transparent bowl made of lightweight PC material allows easy monitoring of drain status.

Double lock system minimizes tampering risk for enhanced safety. Suitable for industrial automation, oil and gas industries, food and beverage manufacturing, and medical centres. Enables efficient removal of oil vapours and hydrocarbon odours from compressed air to prevent equipment damage.
